AM1I-A

AM1I-A

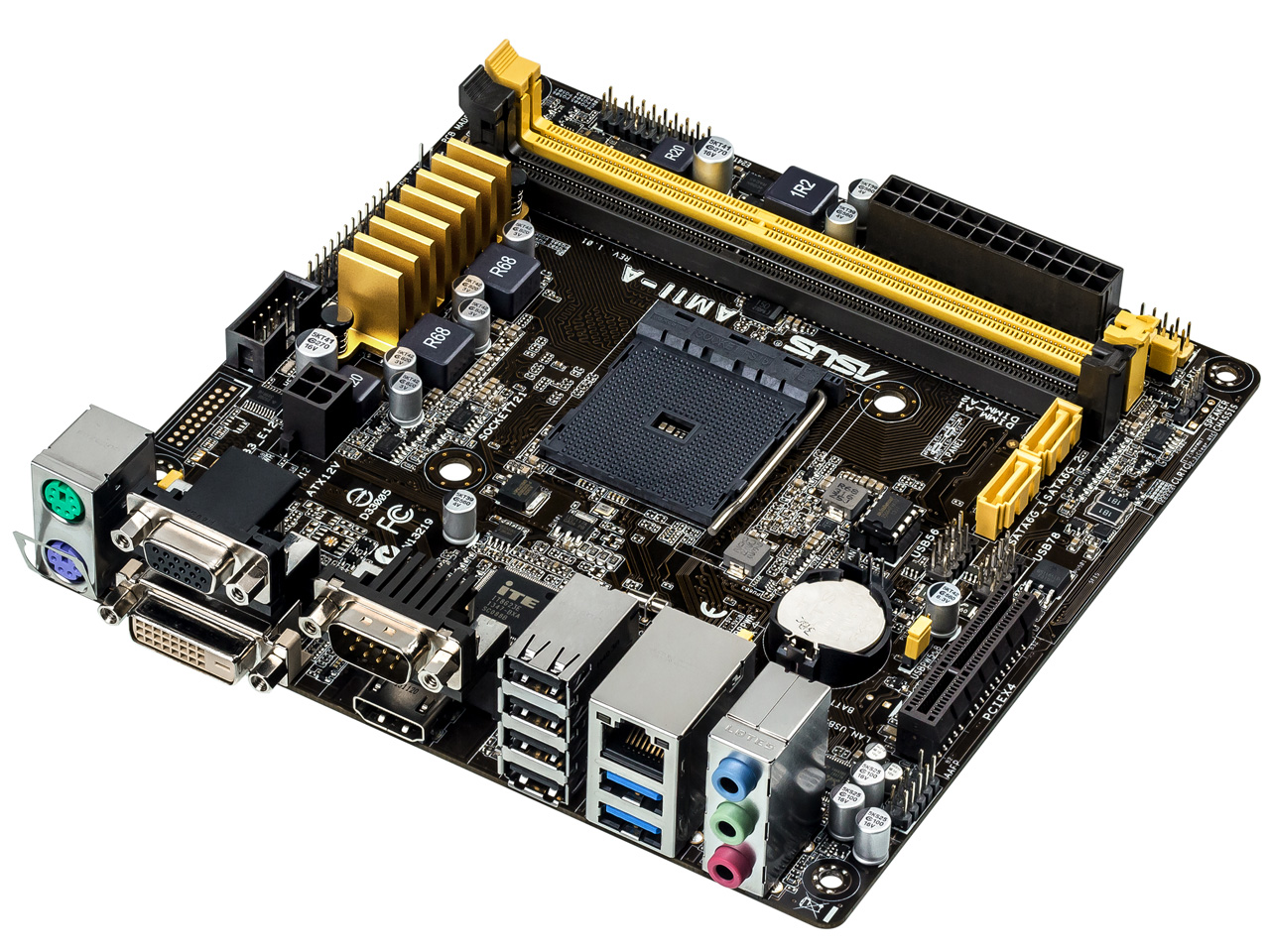

メモリ用ヒューズや静電気保護回路を搭載するMini-ITXマザーボード

型番：ASU-AM1I-A

メーカー製品ページ

特徴

- Scoket AM1対応
- AMD Athlon/SempronシリーズAPU対応
- DDR3メモリ×2枚（最大32GB）対応
- HDMI×1、DVI-D×1、D-Sub 15ピン×1
- PCIe 2.0 x4×1
- SATA 6Gb/s×2
- USB 3.0×2、USB 2.0×8
- 1000BASE-T×1
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
- USB 3.0をブーストする「USB 3.0 Boost」
- Mini-ITXフォームファクター

製品仕様

対応CPUAMD Socket AM1 Athlon/Sempron Processors
Supports CPU up to 4 cores
搭載チップセットBuild in AMD Sempron & Athlon-Series APUs
対応メモリ2 x DIMM, Max. 32GB, DDR3- 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
グラフィックス機能Integrated AMD Radeon R Series Graphics in the APU
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 60 Hz
Maximum shared memory of 2048 MB
拡張スロット1 x PCIe 2.0 x4
ストレージ機能AMD Sempron & Athlon-Series APUs :
2 x SATA 6Gb/s port(s), yellow
LAN機能Realtek 8111GR, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能Realtek ALC887-VD 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB機能AMD Sempron & Athlon-Series APUs :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
AMD Sempron & Athlon-Series APUs :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
独自搭載機能ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
動作対応OSWindows 8.1 64ビット/32ビット
Windows 8 64ビット/32ビット
Windows 7 64ビット/32ビット
Windows XP 32ビット

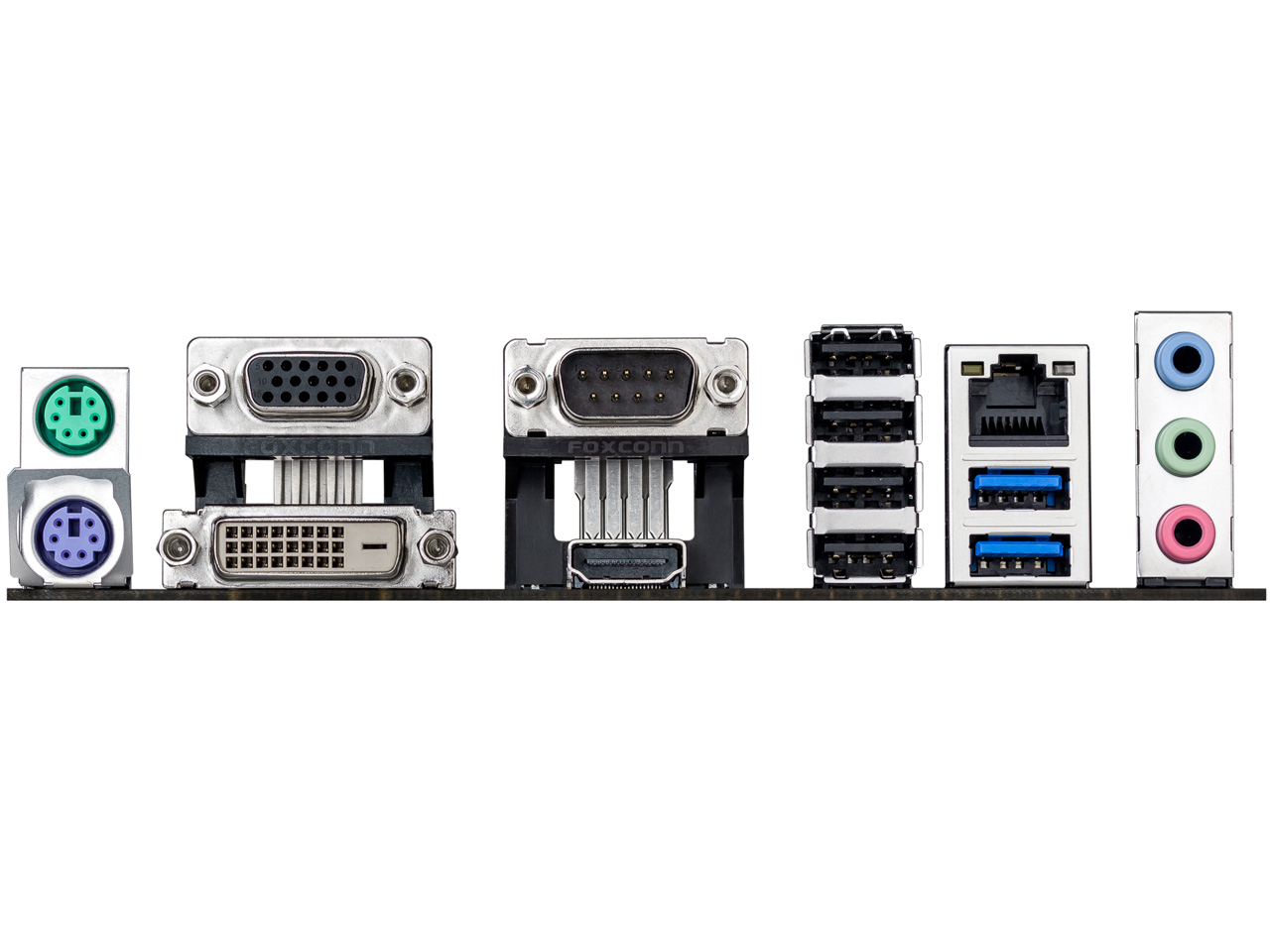

背面インターフェース1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)

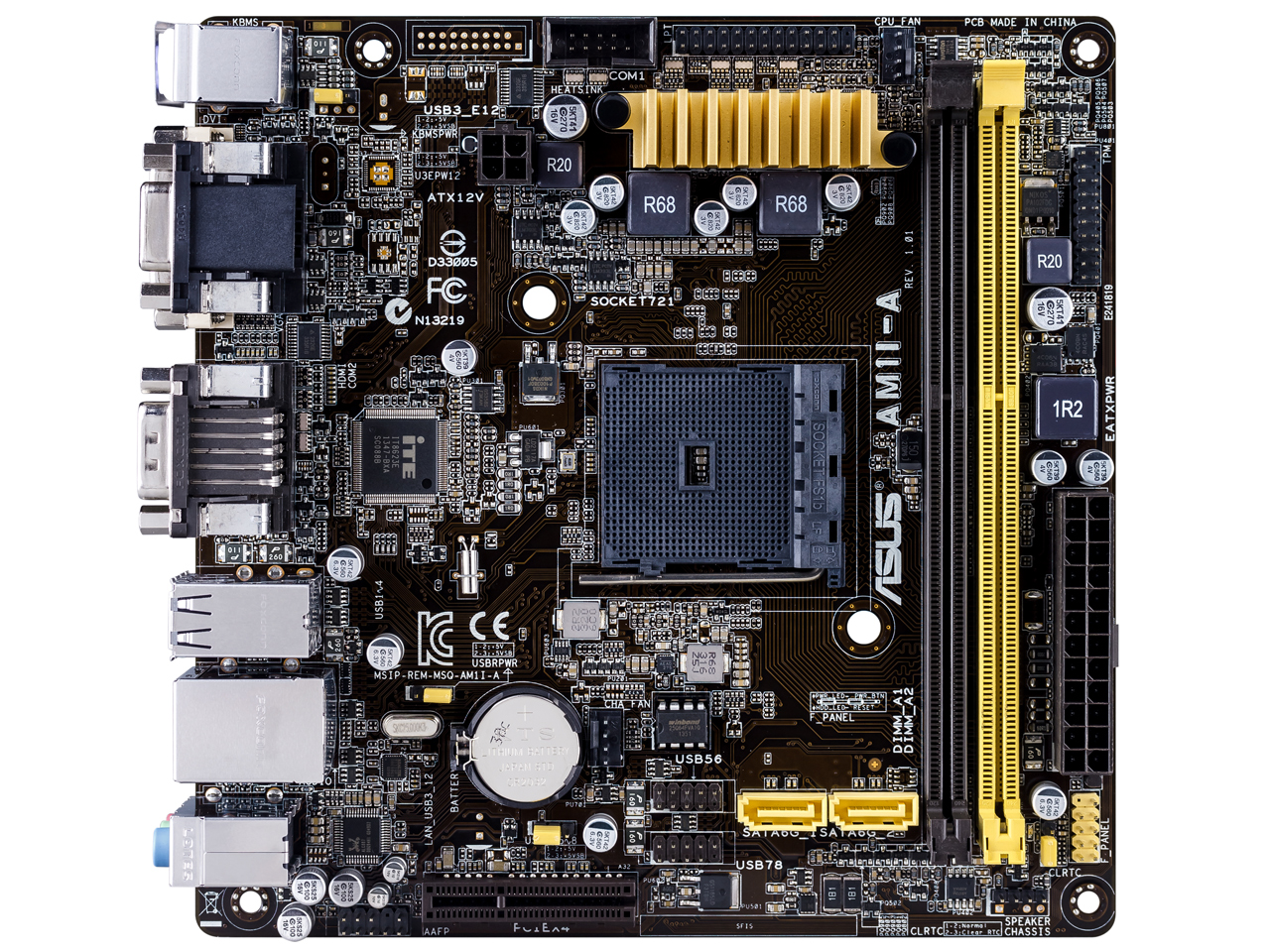

基板上インターフェース2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

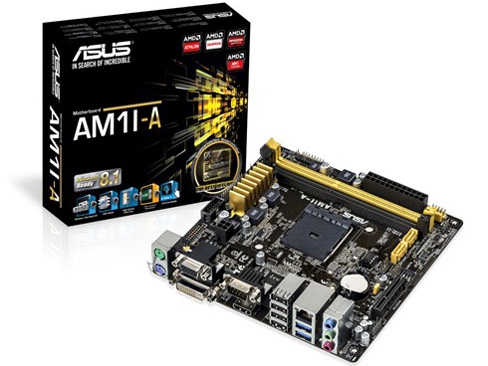

主な付属品User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS機能64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
サポートDVDの内容Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D）Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他*1: Please check the specifications of your AMD APU for capabilities. Video playback at 4096 x 2160 pixels may not be guaranteed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
