X99-M WS/SE

X99-M WS/SE

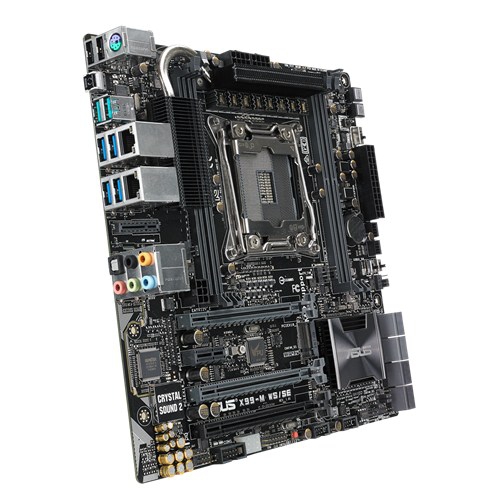

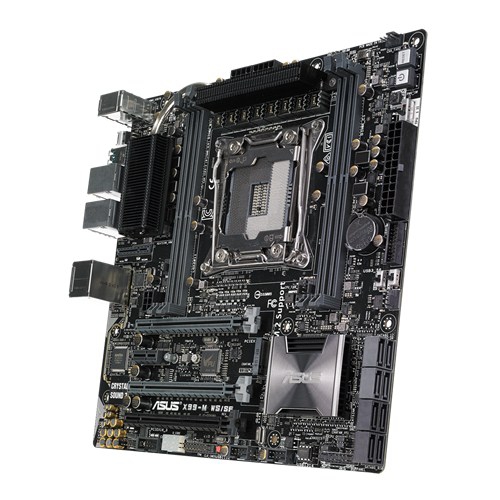

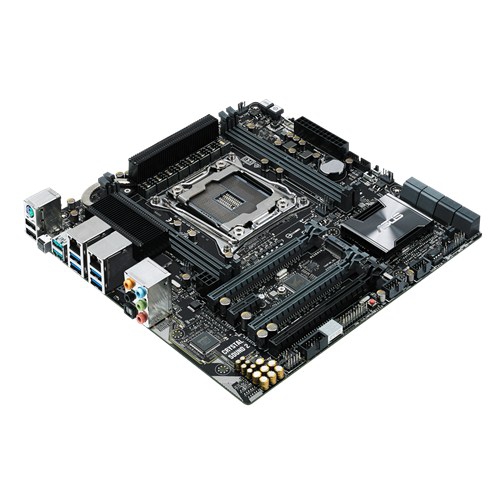

microATXサイズで16レーンフルレーン×2本でのデュアルビデオカード環境を実現するX99マザーボード

型番：ASU-X99M/WS/SE

メーカー製品ページ

特徴

- LGA2011-v3対応
- Intel Core i7シリーズCPU対応
- Intel Xeon E5-2600 v3/1600 v3シリーズCPU対応
- Intel X99チップセット搭載
- DDR4メモリ×4枚（最大64GB）対応
- PCIe 3.0 x16×3、PCIe 2.0 x1×1
- SATA 6Gb/s×8、M.2×1
- USB 3.1×2、USB 3.0×6、USB 2.0×6
- 1000BASE-T×2
- OC性能と安定性を高めたLGA2011-v3完全互換の独自ソケット「OC Socket」を搭載
- 65℃環境で120万時間使用できる高耐久なコンデンサを使用
- CPU＋メモリ用デジタル電源回路「DIGI+ Power Control」を搭載
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert 3」機能を搭載
- 低ノイズに徹底的にこだわったオーディオ機能「Crystal Sound 2」を搭載
- オーバークロック関連処理を行うカスタムチップ「TPU」を搭載
- 電力制御を行うカスタムチップ「EPU」を搭載
- USB 3.1の速度をブーストする「USB 3.1 Boost」機能を搭載
- microATXフォームファクター

製品仕様

CPUIntel Socket 2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Intel Socket 2011-v3 for Intel Xeon processor E5-1600 v3 product family
Intel Socket 2011-v3 for Intel Xeon processor E5-2600 v3 product family
チップセット Intel X99
メモリ4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *1
4 x DIMM, Max. 64GB, DDR4 2133/1866 MHz ECC, Un-buffered Memory *2
4 x DIMM, Max. 64GB, DDR4 2133/1866 MHz ECC, Register Memory *2
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
マルチGPU機能Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
拡張スロット40-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
40-Lane CPU-
1 x PCIe 2.0 x1
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4)
28-Lane CPU-
1 x PCIe 2.0 x1
ストレージ機能Intel X99 chipset :
8 x SATA 6Gb/s port(s), *3
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*4
LAN機能Intel I210-AT, 1000BASE-T/100BASE-TX/10BASE-T×1
Intel I218LM, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Support Teaming Technology
ASUS Turbo LAN Utility
オーディオ機能Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality
USBIntel X99 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, , 2 at mid-board)
Intel X99 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue)
Workstation Feature12K hours Capacitors
ProCool Power Connector
ASUS PIKE SAS upgrade kit(Optional)
Special Features5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Remote Entertainment
- Media Streamer
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Turbo App
Fan Xpert 3
Operating System SupportWindows 8.1
Windows 8
Windows 7

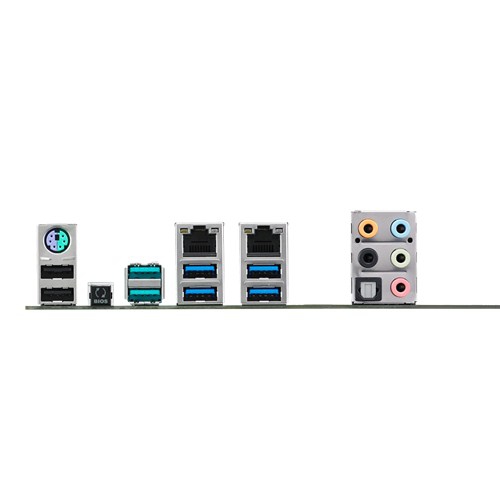

背面インターフェース2 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O

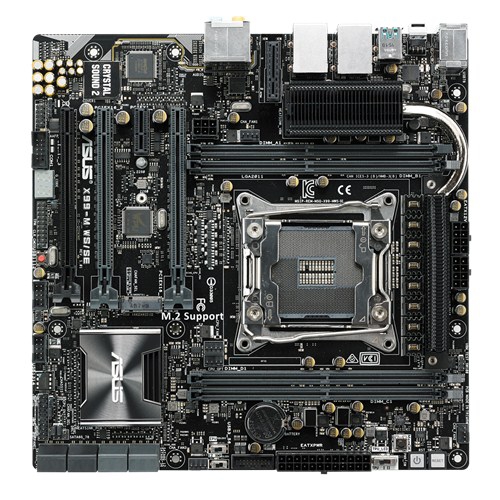

基板上インターフェース1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
2 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
主な付属品User's manual
ASUS Q-Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB 2.0 module(s)
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
ManageabilityWfM 2.0, DMI 2.7, WOL by PME, PXE
サポートDVDDrivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version)
フォームファクター／サイズ（W×D）mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
動作環境Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
その他*1 When installing Intel Socket 2011-v3 Core i7 Processors
*2 When installing Intel Xeon E5-1600 v3/2600 v3 Processor
*3: Due to chipset behavior, The SATA6G_78, SATA6G_910 ports (black) do not support IRST including RAID configuration.
*4: These functions will work depending on the CPU installed.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
