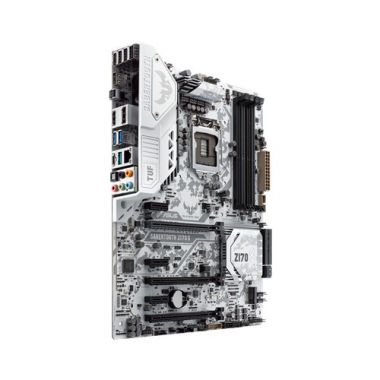

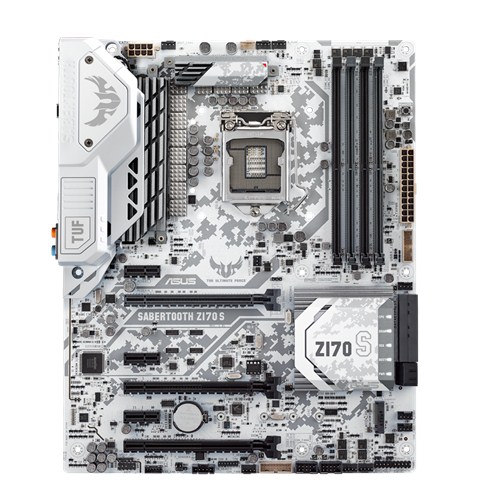

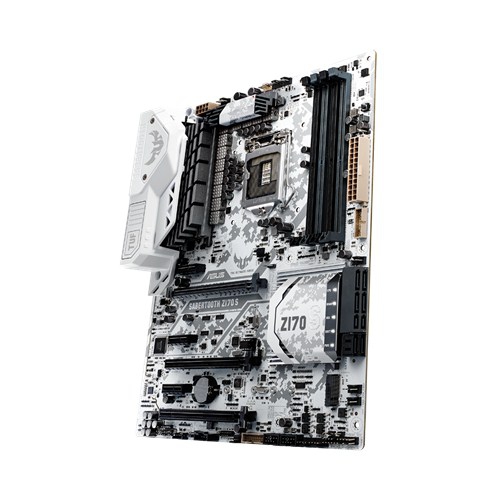

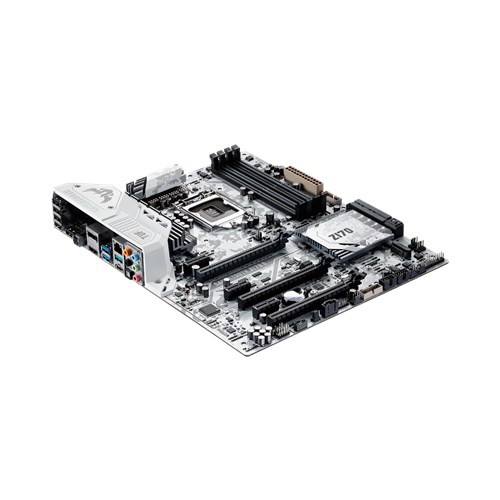

SABERTOOTH Z170 S

SABERTOOTH Z170 S

耐久性と信頼性に特化した白迷彩カラーのZ170マザーボード

型番：ASU-SABERTOOTH-Z170-S

メーカー製品ページ

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel Z170チップセット搭載
- DDR4メモリ×4枚（最大64GB）対応
- DisplayPort 1.2×1、HDMI 1.4b×1
- PCIe 3.0 x16×3、PCIe 2.0 x1×3
- SATA 6Gb/s×6、SATA Express×2、M.2×1
- USB 3.1 Type-A×1、USB 3.1 Type-C×1、USB 3.0×6、USB 2.0×8
- 1000BASE-T×1
- デジタル電源回路「TUF ENGINE!」
- 外部クロックジェネレーターチップ「PRO Clock」
- オーバークロック専用チップ「TPU」
- 省電力を実現する電力制御チップ「EPU」
- PC内の温度やファンの状態をスマートフォンから確認できる「TUF Detective 2」
- 高機能ファンコントロール機能「TUF Thermal Radar 2」
- 「TUF ICe」チップでファン制御でのCPU負荷ゼロ
- チップを静電気から守る「TUF ESD Guards 2」
- USB 3.1をブーストする「USB 3.1 Boost」
- ATXフォームファクター

製品仕様

対応CPUIntel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel Z170
対応メモリ4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
グラフィックス機能Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
マルチGPU対応Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
3 x PCIe 3.0/2.0 x1
ストレージ機能Intel Z170 chipset :
2 x SATA Express port, Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports*3
Supports Intel Smart Response Technology*4
LAN機能Intel I219V, 1000BASE-T/100BASE-TX/10BASE-T×1
Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
ASUS Turbo LAN Utility
オーディオ機能Realtek ALC1150 8-Channel High Definition Audio CODEC
- Supports : Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- Absolute Pitch 192khz/24bit true BD lossless sound
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能Intel Z170 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
Intel Z170 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
ASMedia USB 3.1 controller :
1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, teal blue, Type-A)
ASMedia USB 3.1 controller :
1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible)
独自機能OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
TUF Features:
TUF ENGINE! Power Design :
- 8 +4 Digital Phase Power Design
- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
- TUF ICe
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
ASUS Exclusive Features :
- GPU Boost
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- M.2 & SATA Express
- Anti-Surge
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
- Turbo LAN
- PC Cleaner
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット

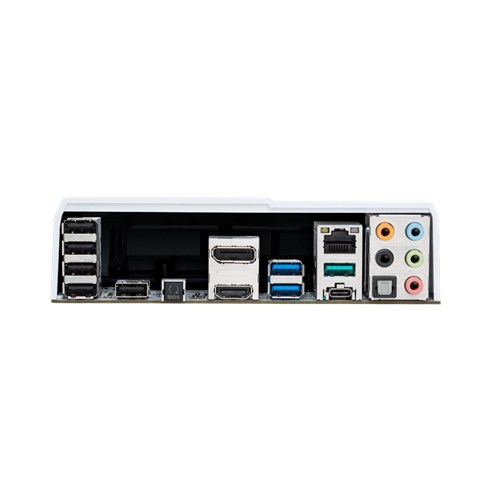

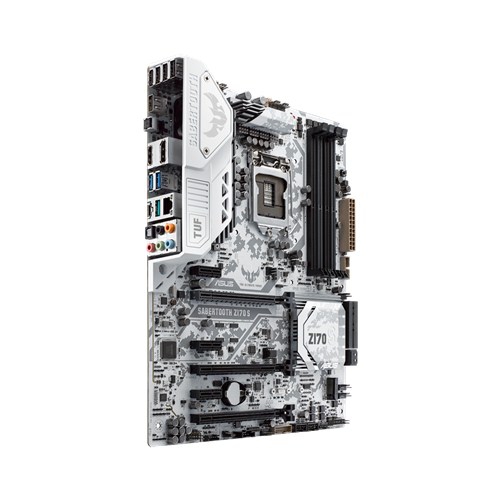

背面インターフェース1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (teal blue)Type-A
1 x USB 3.1 Type-C
4 x USB 2.0
2 x USB 3.0 (blue) (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O
1 x TUF Detective USB port
基板上インターフェース1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: , Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
6 x Chassis Fan connector(s) (4 -pin)
2 x Assistant Fan connector(s) (1 x 3 -pin, 1 x 4 -pin, [White])
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x 14-1 pin TPM connector
主な付属品User's manual
Accessory Guide
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF INSIDE sticker(s) (gray)
1 x STAY COOL BE TUF sticker(s)(gray)
- 1 x back I/O dust frame
- 1 x back I/O dust grid
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能WfM 2.0, DMI 3.0, WOL by PME, PXE
フォームファクター（サイズW×D）ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他*1: The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is default set at x2 mode.
Supports Intel RST for PCIE RAID storage.
*2: The M.2 socket shares SATA ports with SATA Express_1 port. Adjust BIOS settings to use an M.2 SATA device.
*3: Supports PCIE RAID configurations via onboard M.2 and PCIEX16_3 slot storages.
*4: These functions will work depending on the CPU installed.
*5: These SATA ports are for data hard drivers only. ATAPI devices are not supported.

※製品の仕様・付属品は予告なく変更する場合があります。
