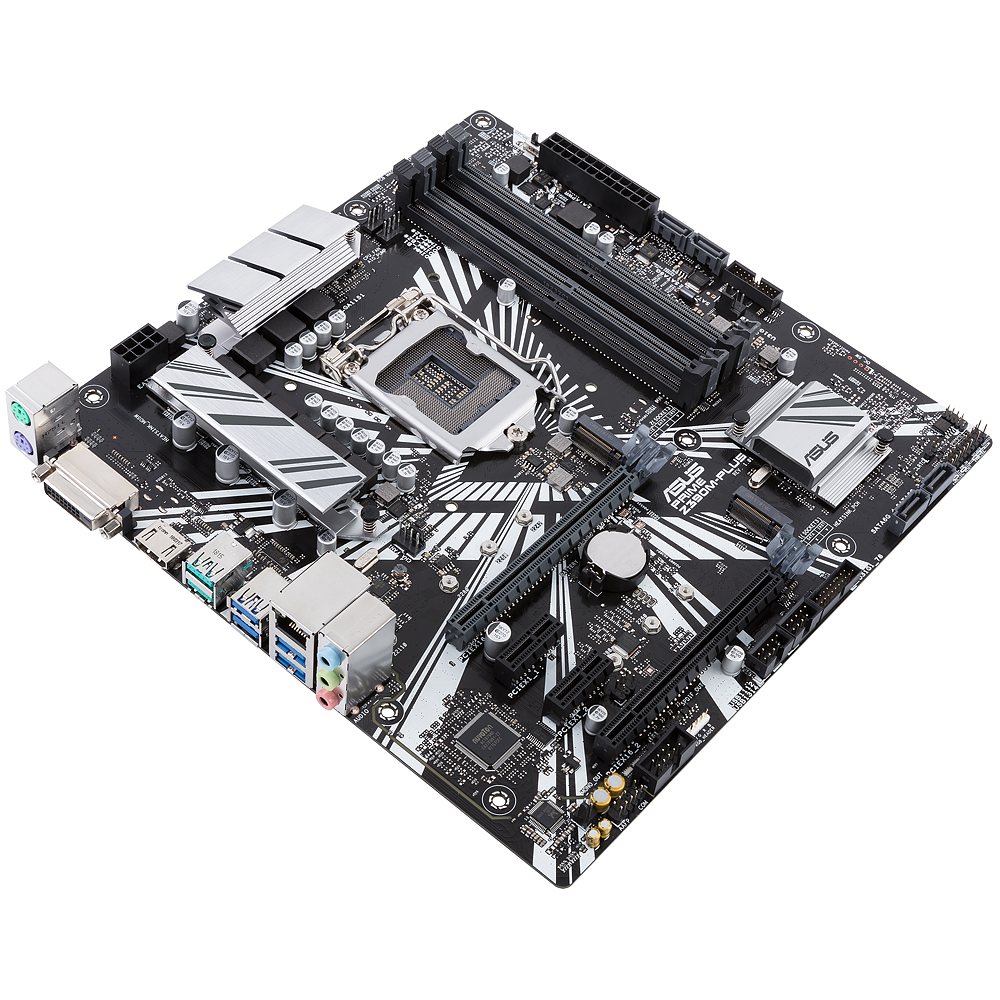

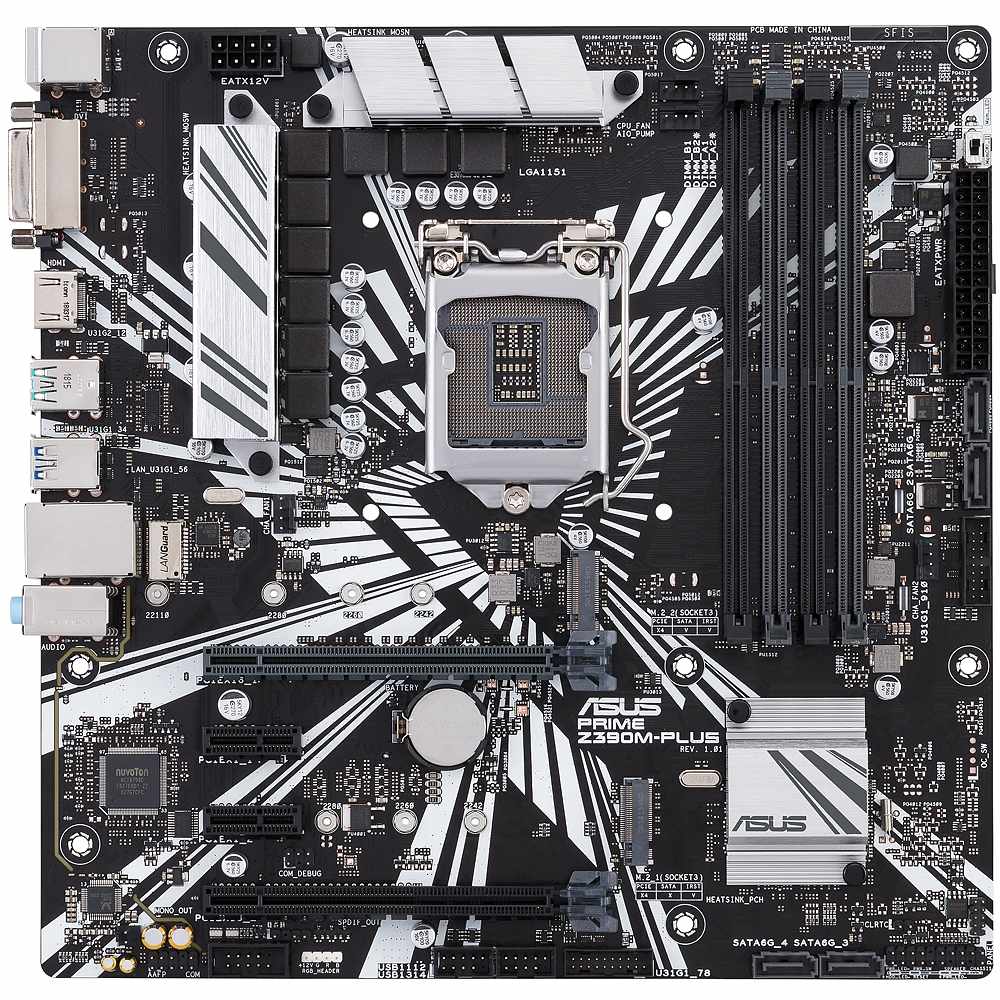

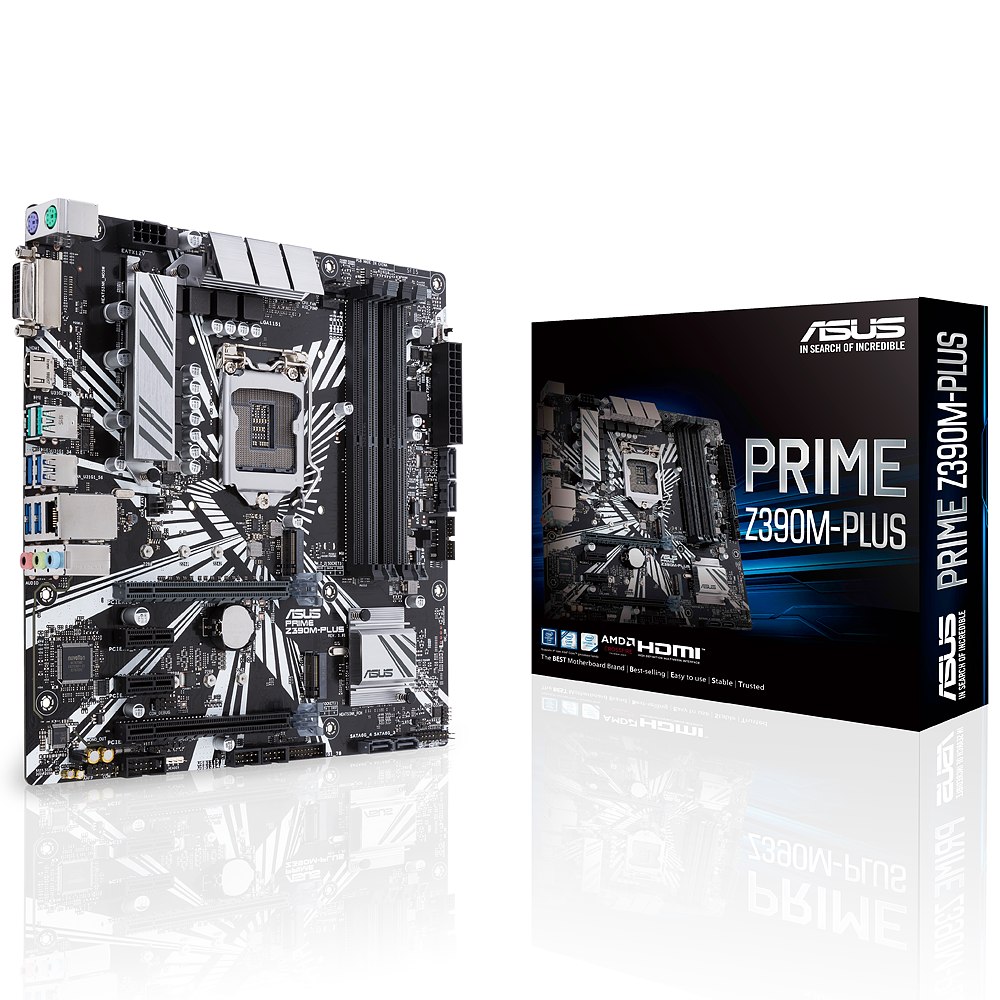

PRIME Z390M-PLUS

PRIME Z390M-PLUS

優れた電力効率と冷却性能を備え様々なPCパーツとの広範な互換性を持つZ390搭載mATXマザーボード

  • OptiMem II:トレースとビアのルーティング、グランド層の最適化により信号の完全性を維持し、メモリオーバークロックを改善
  • 電力ソリューションの改良:プレミアムコンポーネントの採用で優れた電力効率を実現
  • UEFI BIOS:目当ての設定項目を簡単に見つけられる検索機能など、新たなUEFIオプションを搭載
  • 業界を最先端の冷却オプション:ファンXpert 4またはUEFI経由で冷却ファンとAIOポンプの包括的な制御に対応
  • 超高速の接続:驚異的なストレージ速度を実現するデュアルネイティブM.2およびNVMe PCIe RAIDをサポート
  • 5X Protection III:複数のハードウェアプロテクションの組合せによる絶対的な保護

製品仕様

対応CPU Intel Socket 1151 for 8th Generation Core Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel Z390
メインメモリ 4 x DIMM, Max. 64GB, DDR4- 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
デュアルチャンネル Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
グラフィックス機能 Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
マルチGPU対応 Supports AMD CrossFireX Technology
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
ストレージ機能 Intel Z390 Chipset :
1 x M.2 Socket 3, , with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
Intel CPU with Intel Rapid Storage Technology support (RAID 0 & RAID 1)
PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card
LAN機能 Intel I219V, 1000BASE-T/100BASE-TX/10BASE-T×1
Anti-surge LANGuard
オーディオ機能 Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB機能 Intel Z390 Chipset :
2 x USB 3.1 Gen 2 port(s)
Intel Z390 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at mid-board)
Intel Z390 Chipset :
4 x USB 2.0 port(s) (4 at mid-board)
独自機能 ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 9 Phase digital power design
ASUS Optimem II:
- Improved DDR4 Stability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- MemOK! II
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

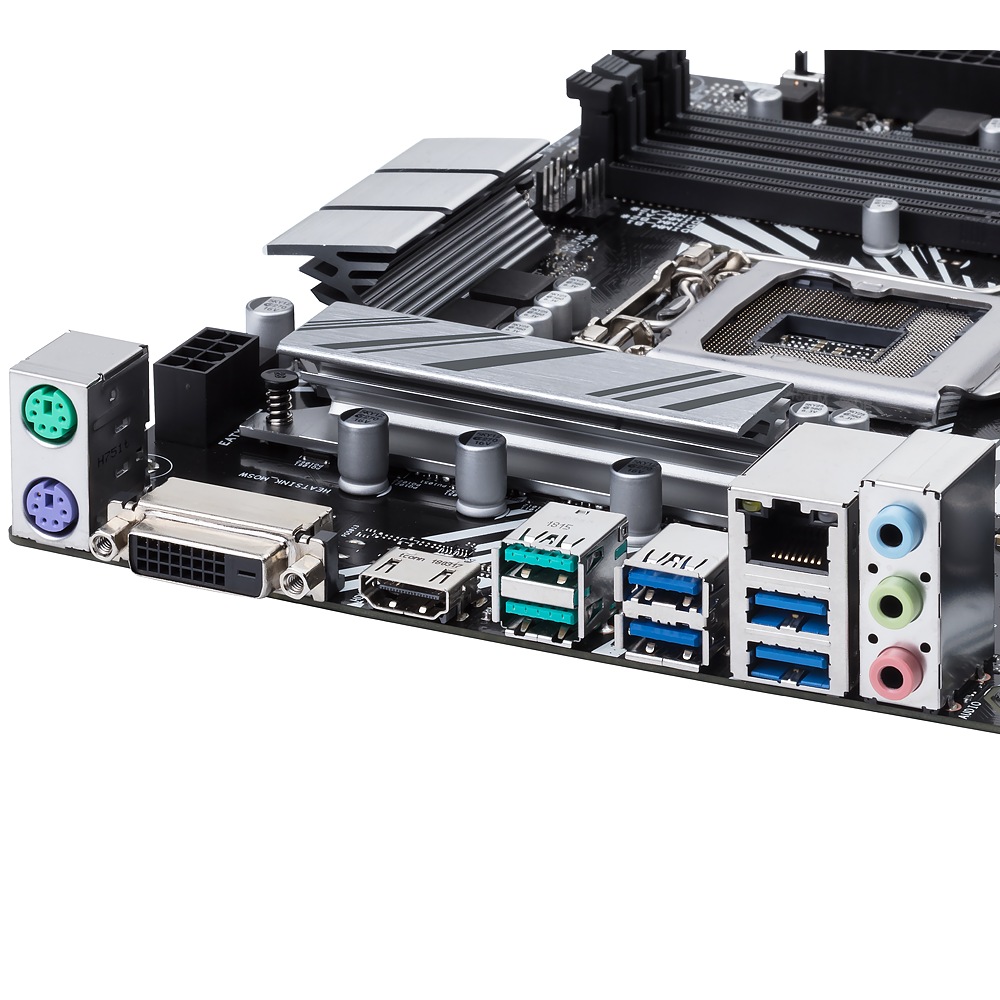

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A,
4 x USB 3.1 Gen 1 Type-A,
3 x Audio jack(s)
基板上インターフェース 1 x Lighting Control RGB Strip Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! II switch(es)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Mono Out header
主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容 Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
OS Windows 10 64-bit
フォームファクター(サイズW×D) mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
その他 * PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card. **
** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
