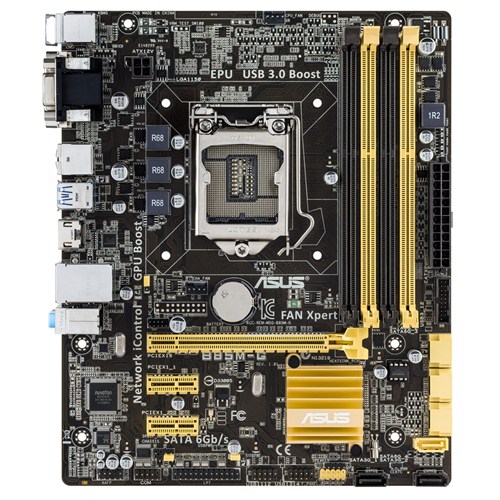

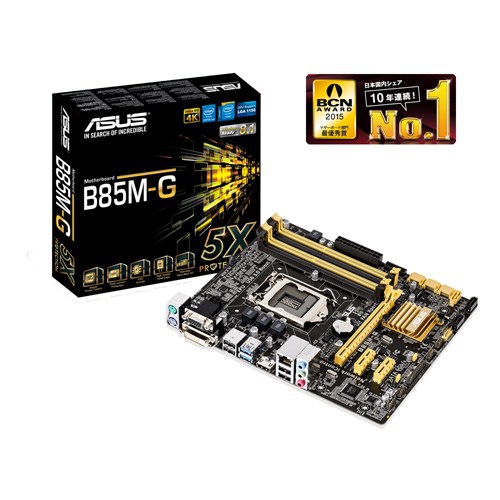

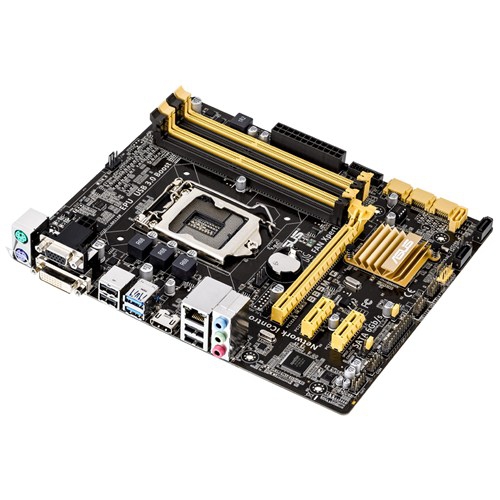

B85M-G

B85M-G

高コストパフォーマンスな エントリーモデル

- Intel B85
- DDR3メモリ×4（最大32GB）
- PCIe 3.0 x16×1、PCIe 2.0 x1×2
- HDMI×1、DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×4、SATA 3Gb/s×2
- 1000BASE-T×1
- USB 3.0×4、USB 2.0×8
- DIGI+ VRM 3フェーズ
- EPU、Fan Xpert

型番：ASU-B85M-G

メーカー製品HP

CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Celeron dual-core/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
チップセット Intel B85
メモリ 4 x DIMM, Max. 32GB, DDR3- 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
拡張スロット 1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
ストレージ機能 Intel B85 chipset :
4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
LAN機能 Realtek 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USB Intel B85 chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
Intel B85 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
Special Features ASUS 5X PROTECTION :
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
GPU Boost
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors

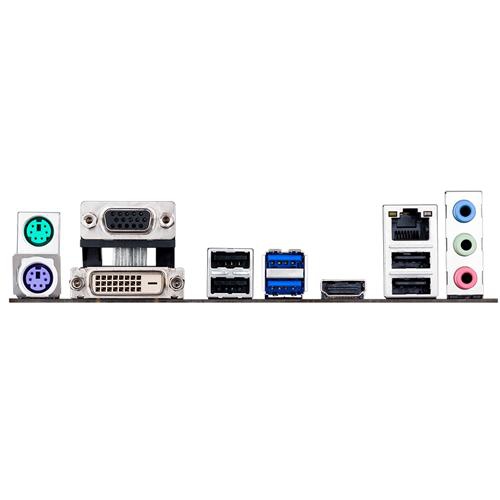

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT1 header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
サポートDVD Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D） mATX Form Factor
9.2 inch x 7.6 inch ( 23.3 cm x 19.3 cm )

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
