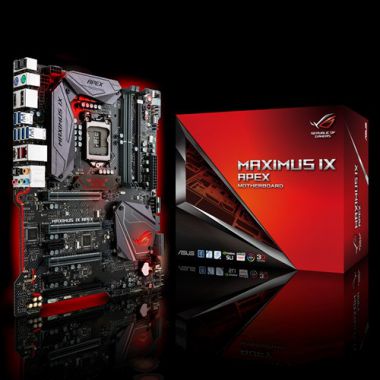

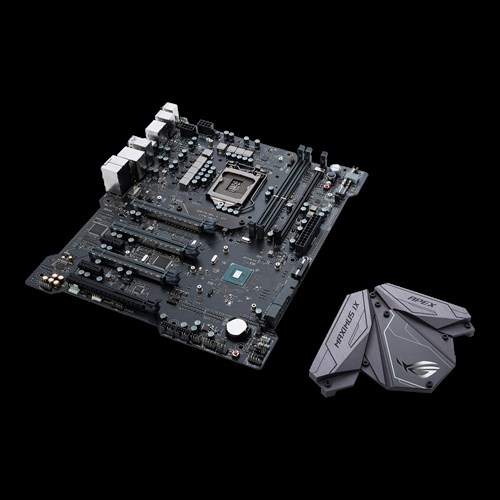

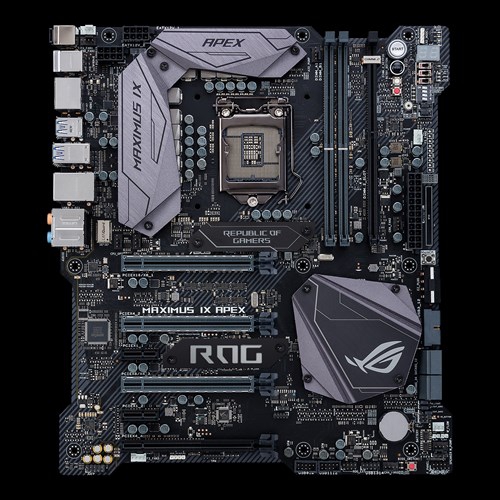

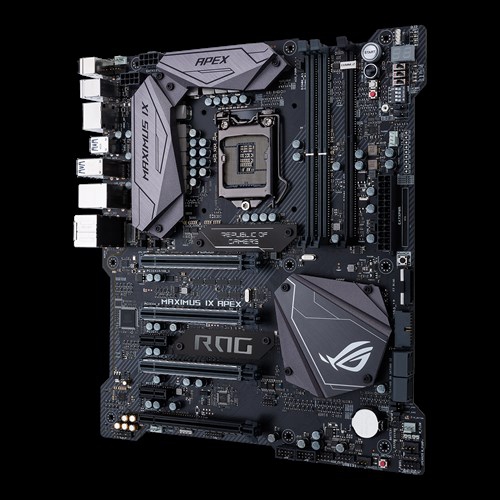

型番:ASU-MAXIMUS/IX/APEX
- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel Z270チップセット搭載
- DDR4メモリ×2枚(最大32GB)対応
- DisplayPort 1.2×1、HDMI 1.4b×1
- PCIe 3.0 x16×4、PCIe 3.0 x1×2
- M.2×2、SATA 6Gb/s×4
- USB 3.1 Type-C×1、USB 3.1×1、USB 3.0×8、USB 2.0×6
- 1000BASE-T×1
- OC対応のデジタル電源回路「Extreme Engine Digi+」
- 鮮やかに光るイルミネーション機能「Aura」
- 高性能ファンコントロール機能「Fan Xpert 4」
- ゲーム用オーディオ機能「ROG SupremeFX」
- ExtendedATXフォームファクター
対応CPU | Intel for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
搭載チップセット | Intel Z270 |
対応メモリ | 2 x DIMM, Max. 32GB, DDR4- 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3500(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
グラフィックス機能 | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2304 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz Maximum shared memory of 1024 MB |
マルチGPU対応 | Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD 4-Way CrossFireX Technology |
拡張スロット | 1 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x8 2 x PCIe 3.0/2.0 x1 2 x PCIe 3.0 x4 |
ストレージ機能 | Intel Z270 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology Support Raid 0, 1, 5, 10 Intel Optane Memory Ready *1 |
LAN機能 | Intel I219V, 1000BASE-T/100BASE-TX/10BASE-T×1 ASUS LAN Guard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A*2 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - ESS ES9023P Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel |
USB機能 | Intel Z270 Chipset : 8 x USB 3.0 port(s) Intel Z270 Chipset : *3 6 x USB 2.0 port(s) ASMedia USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C) |
R.O.G.シリーズ独自搭載機能 | ROG RAMCache II ROG CPU-Z ROG CloneDrive MemOK! Button Slow Mode CMOS button Overwolf ReTry Button Safe Boot Button Start Button Reset Button LN2 Mode ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFET Power Block MOSFET - 10K Black Metallic Capacitors Mem TweakIt UEFI BIOS features : |
独自機能 | 5-Way Optimization by Dual Intelligent Processors 5 SafeDIMM slot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - MemOK! - AI Suite 3 - Anti-Surge ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Performance Optimization : - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control |

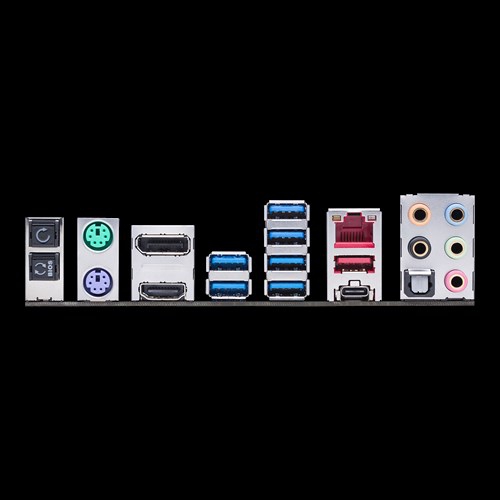

背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 ()Type-A + Type-C 6 x USB 3.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 5 x Gold-plated audio jacks |
基板上インターフェース | 1 x AAFP connector 2 x RGB Header(s) 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Slow Mode switch(es) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x BIOS Switch button(s) 1 x Clear CMOS button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x 14-1 pin TPM connector 1 x Slow Mode jumper(s) 1 x W_Pump+ Header 1 x AIO PUMP Header 1 x 3D Mount screw port(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x Thermal sensor connector 1 x Start button |

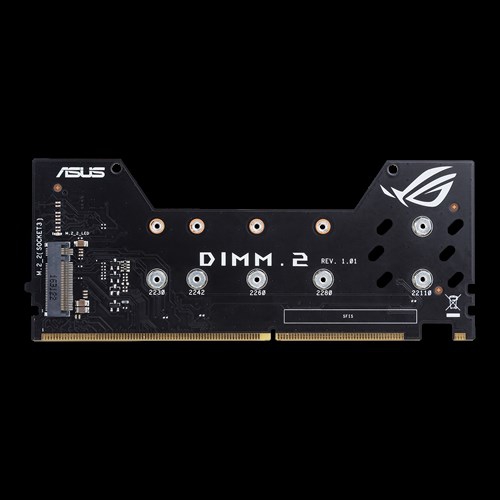

主な付属品 | User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-L) 1 x Q-Connector 1 x 10-in-1 ROG cable label 1 x DIMM.2 extension card with 2 x M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x 3D printing mount package 1 x ROG coasters |
OS | Windows 10 64-bit Windows 8.1 64-bit *4 Windows 7 32-bit *4 Windows 7 64-bit *4 |
フォームファクター(サイズW×D) | Extended ATX Form Factor 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm ) |
その他 | *1 Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *2 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *3 2 x USB2.0 port at mid-board share with ROG extension (ROG_EXT) port. *4 Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
