- LGA1151対応
- Intel Core i7/i5/i3、Pentium、Celeron対応
- Intel H170チップセット搭載
- DDR4メモリ×4(最大64GB)対応
- PCIe x16×2、PCIe x1×4
- DisplayPort×1、HDMI×1、DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×6、SATA Express×1、M.2×1
- USB 3.1 Type-C×1、USB 3.1 Type-A×1、USB 3.0×6、USB 2.0×8
- TPU(オーバークロック制御チップ)搭載
- Fan Xpert 3搭載、USB高速充電機能搭載
- 低ノイズオーディオ機能搭載
- ATXフォームファクター
CPU | Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
チップセット | Intel H170 |
メモリ | 4 x DIMM, Max. 64GB, DDR4 2133 MHz Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
グラフィックス機能 | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 512 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
マルチGPU機能 | Supports AMD Quad-GPU CrossFireX Technology |
拡張スロット | 1 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x16 (x4 mode, black) 4 x PCIe 3.0/2.0 x1 |
ストレージ機能 | Intel H170 chipset : 1 x SATA Express portCompatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology*2 |
LAN機能 | Intel I219V, 1000BASE-T/100BASE-TX/10BASE-T×1, GameFirst technology Anti-surge LANGuard |
オーディオ機能 | SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 115 dB SNR stereo playback output Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar II |
USB | ASMedia USB 3.1 controller : 1 x USB 3.1 port(s) (1 at back panel, , Type-A) ASMedia USB 3.1 controller : 1 x USB 3.1 port(s) (1 at back panel, , Type-C, Reversible) Intel H170 chipset : 6 x USB 3.0/2.0 port(s) (2 at back panel, , 4 at mid-board) Intel H170 chipset : 8 x USB 2.0/1.1 port(s) (2 at back panel, , 6 at mid-board) |
Special Features | Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger+ - USB 3.1 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Media Streamer RAMCache |
Operating System Support | Windows 10 64ビット Windows 8.1 64ビット Windows 7 64ビット/32ビット |

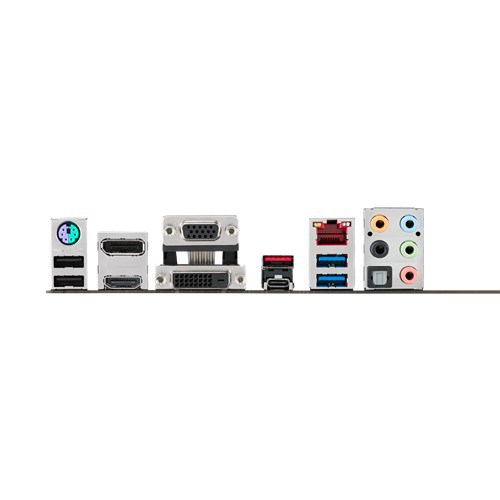

背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 (black)Type-C 1 x USB 3.1 (red)Type-A 2 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
基板上インターフェース | 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector |
主な付属品 | User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x 12 in 1 Cable Label (s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
サポートDVD | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
フォームファクター/サイズ(W×D) | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
その他 | *1:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. *2:These functions will work depending on the CPU installed. |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
