第14世代Intel Coreプロセッサー対応「ROG MAXIMUS DARK HERO」マザーボード

・Intel Z790チップセット搭載
・第14世代Intel Coreプロセッサー対応
・合金チョーク、プレミアム金属コンデンサー、および ProCool II 電源コネクター
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・オンボードThunderbolt 4 (USB Type-C) 搭載
・最大60WのQuick Charge 4+に対応したUSB 20Gbps Type-Cフロントパネルコネクター搭載
・Intel 2.5G LAN + Wi-Fi 7
・Q-Antenna、PCIe Slot Q-Release、M.2 Q-Latch、事前取り付け済みI/Oシールド
・AI Cooling、AI Networking、双方向AIノイズキャンセル

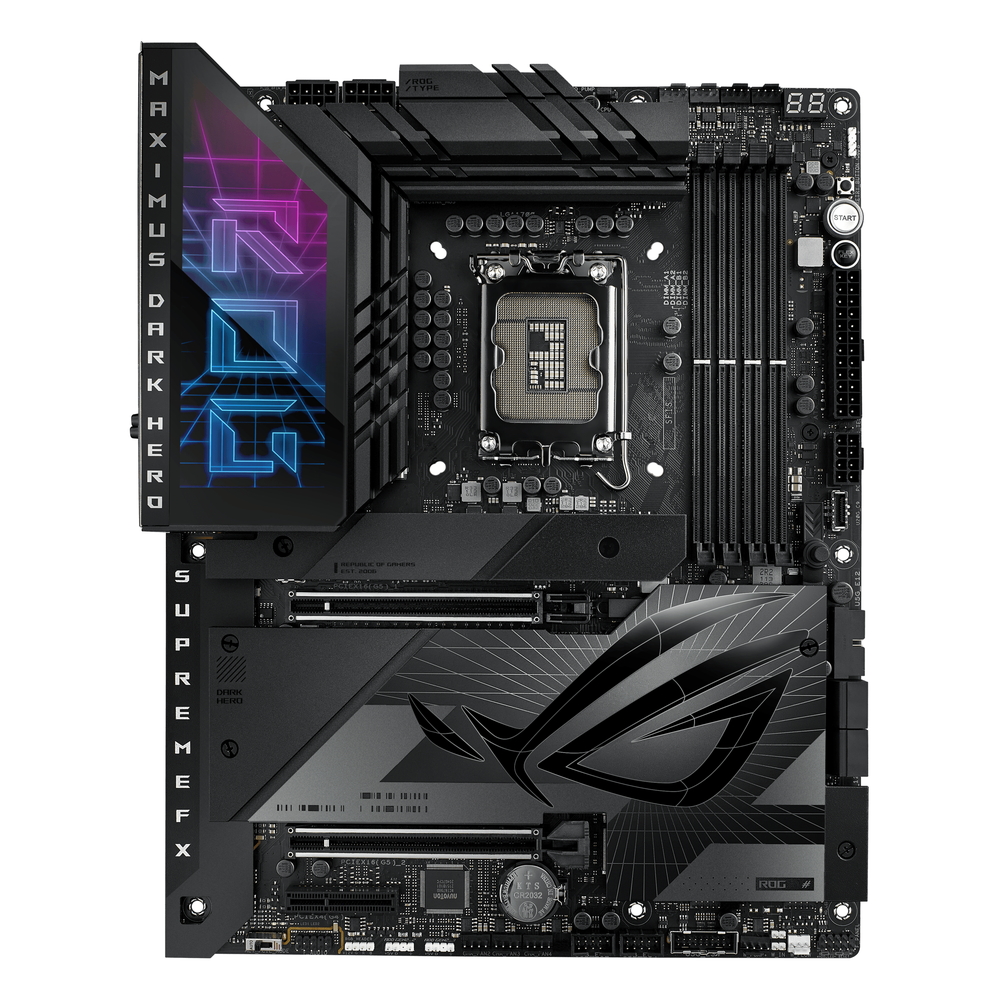

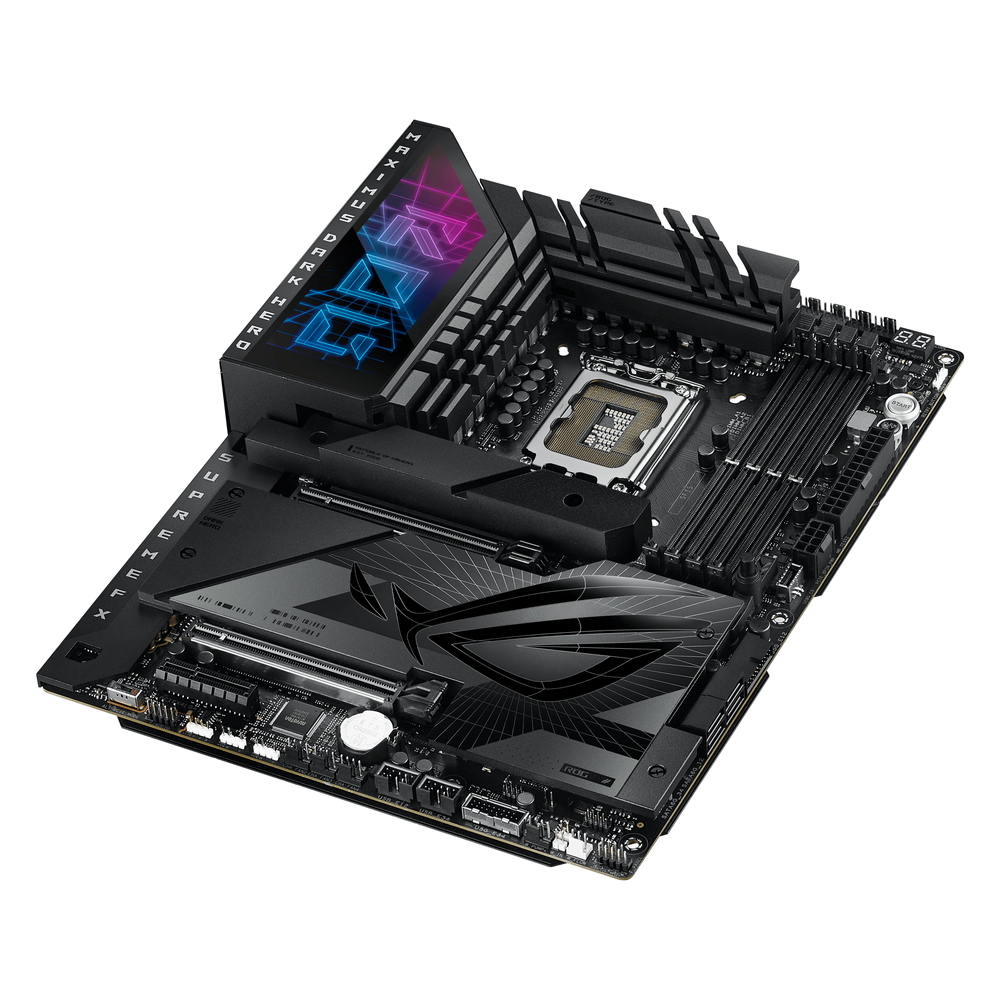

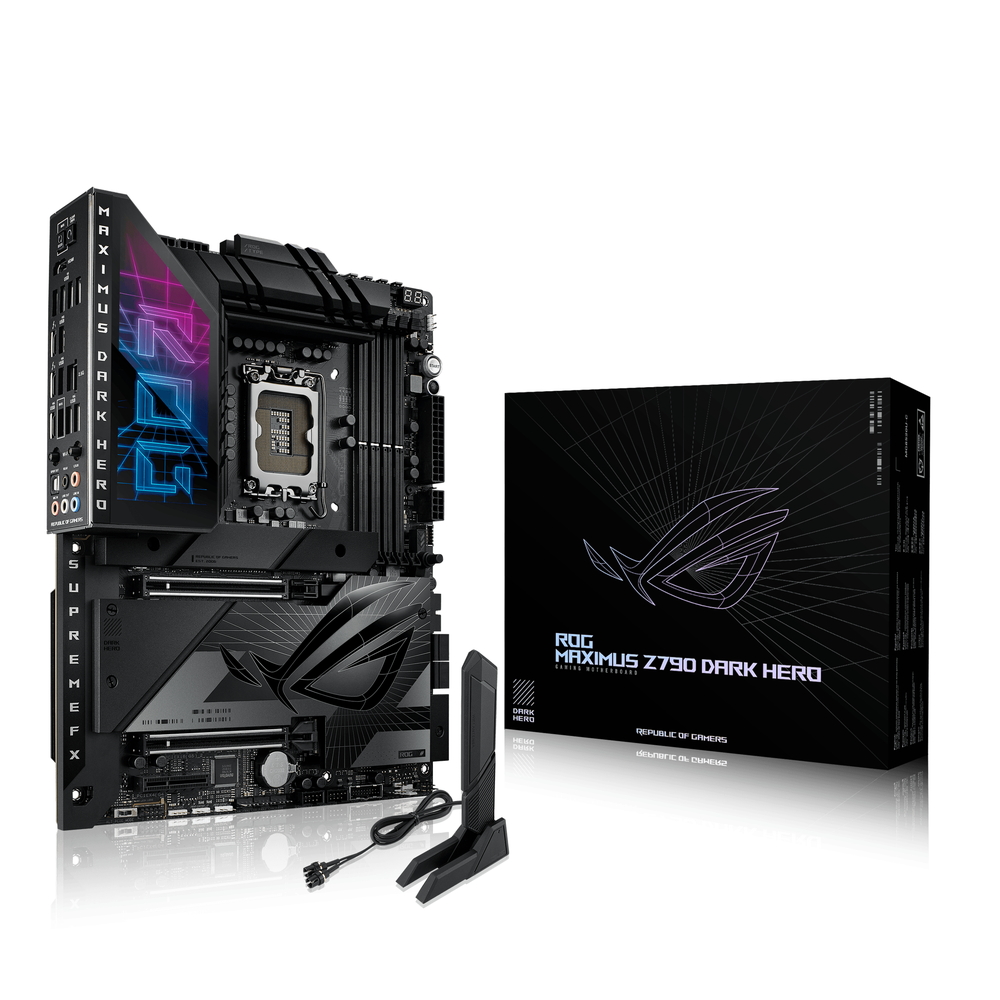

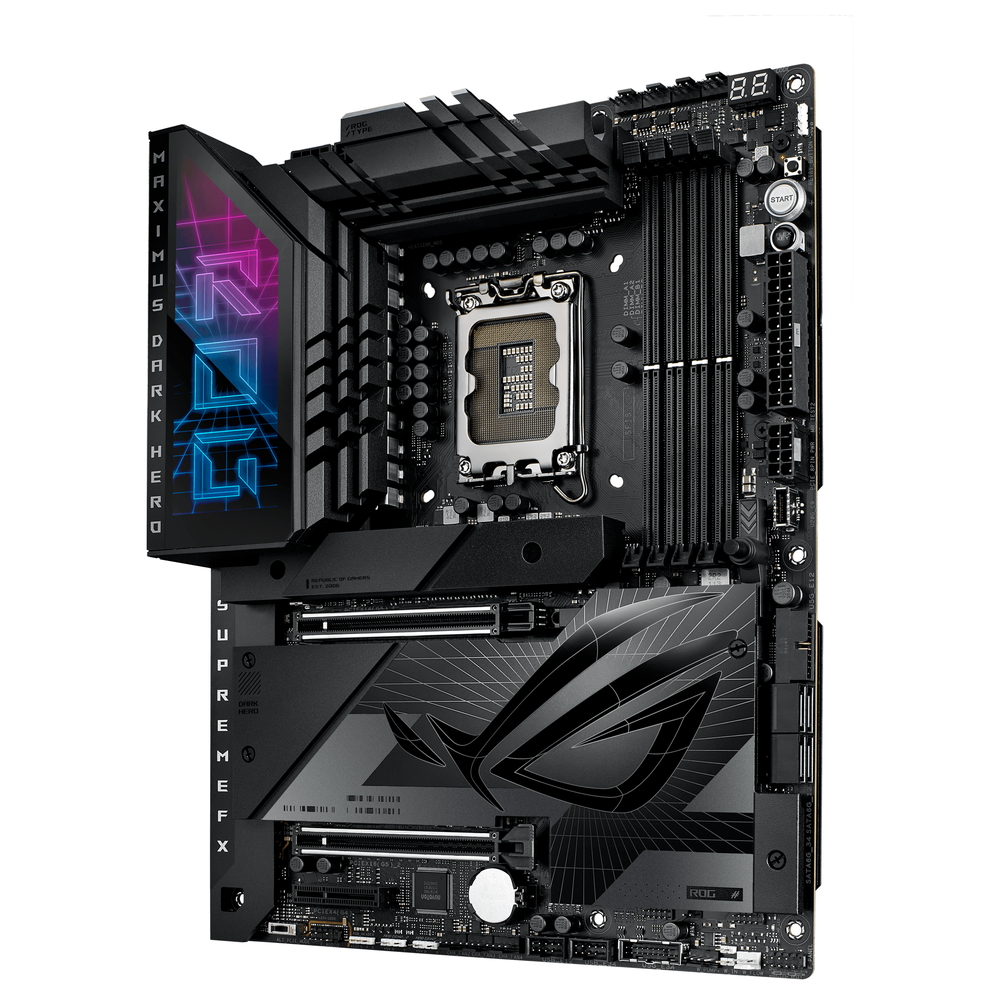

「ROG MAXIMUS Z790 DARK HERO」は、Intel Z790チップセットを搭載したマザーボードです。
定格90Aの20+1パワーステージの強力な電源回路を備え、最新の第14世代Intel Core プロセッサーの性能を引き出します。
また、最新のDDR5メモリーに対応するほか、PCIe 5.0スロットやPCIe 5.0 M.2スロットを装備。さらにオンボードThunderbolt 4ポート、最大60WのQuick Charge 4+に対応したUSB 20Gbps Type-Cフロントパネルコネクター搭載などの高速規格を搭載しています。
Intel 2.5G LAN + Wi-Fi 7*をサポートし、高速なネットワーク環境を構築することができます。


フォームファクター ATX(305×244mm)
チップセット Intel Z790 Chipset
対応CPUソケット LGA1700
対応CPU Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 DIMM slots, max. 192GB, DDR5
6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*"
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
* Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel® Core Processors (14th & 13th & 12th Gen)*
PCIe 5.0 x16 slot × 2 (support x16 or x8/x8 modes)**
Intel® Z790 Chipset
PCIe 4.0 x4 slot × 1
* Please check the PCIe bifurcation table on the support site (
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
- To ensure compatibility of the device installed, please refer to for the list of supported peripherals.
ストレージ M.2 slot × 5
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

SATA 6Gb/s port × 4
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.

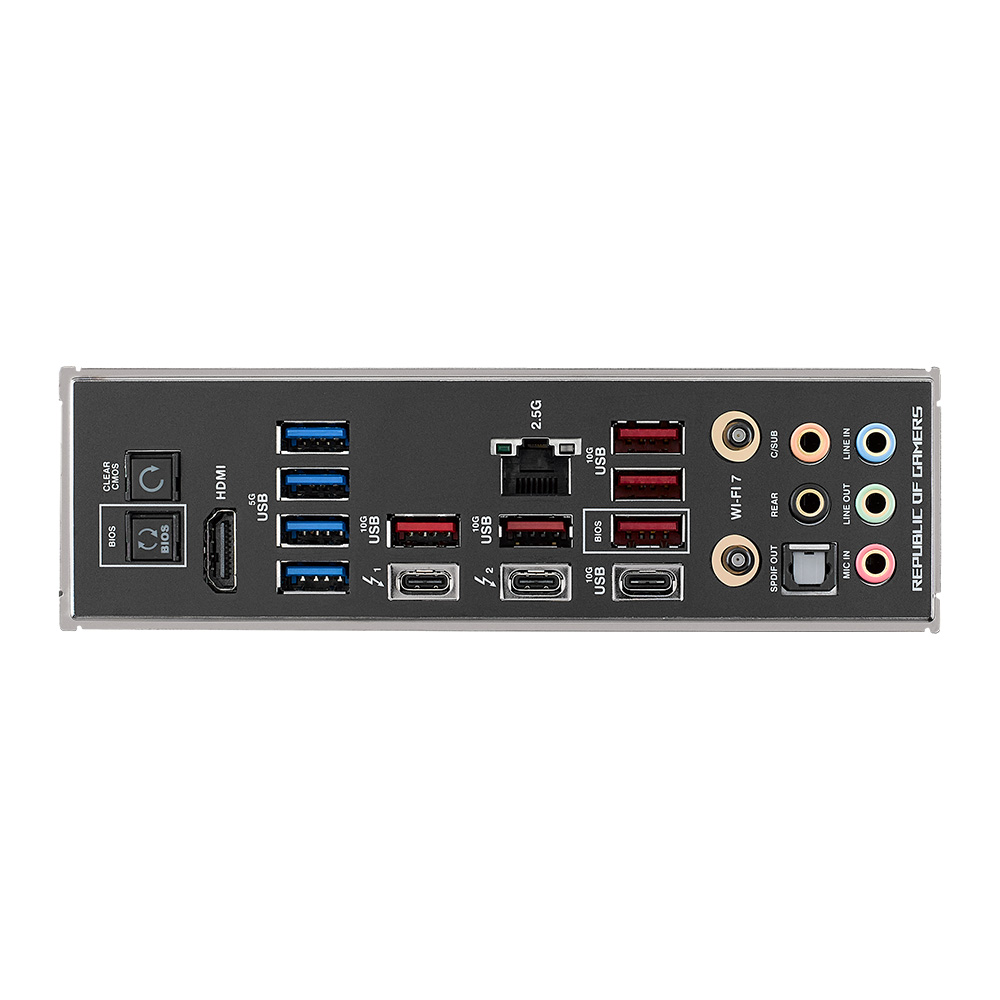

USB Rear USB (Total 12 ports)
Thunderbolt™ 4 port × 2 (2 USB Type-C®)
USB 10Gbps port × 6 (5 Type-A + 1 USB Type-C®)
USB 5Gbps port × 4 (4 Type-A)

Front USB (Total 9 ports)
USB 20Gbps connector × 1 (supports USB Type-C® with up to 60W PD/QC4+)
USB 5Gbps header × 2 (support 4 additional USB 5Gbps ports)
USB 2.0 header × 2 (support 4 additional USB 2.0 ports)
LAN Intel® 2.5Gb Ethernet × 1
無線機能 Intel® Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
Bluetooth® v5.4****

* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

映像出力 HDMI port × 1
Support 4K@60Hz as specified in HDMI 2.1.

Intel® Thunderbolt™ 4 port × 2 (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**

* Graphics specifications may vary between CPU types. Please refer to for any updates.
** VGA resolution support depends on processors' or graphic cards' resolution.
オーディオ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
LED Addressable Gen 2 header × 3
AURA RGB header × 1
OS Windows® 11, Windows® 10 64-bit

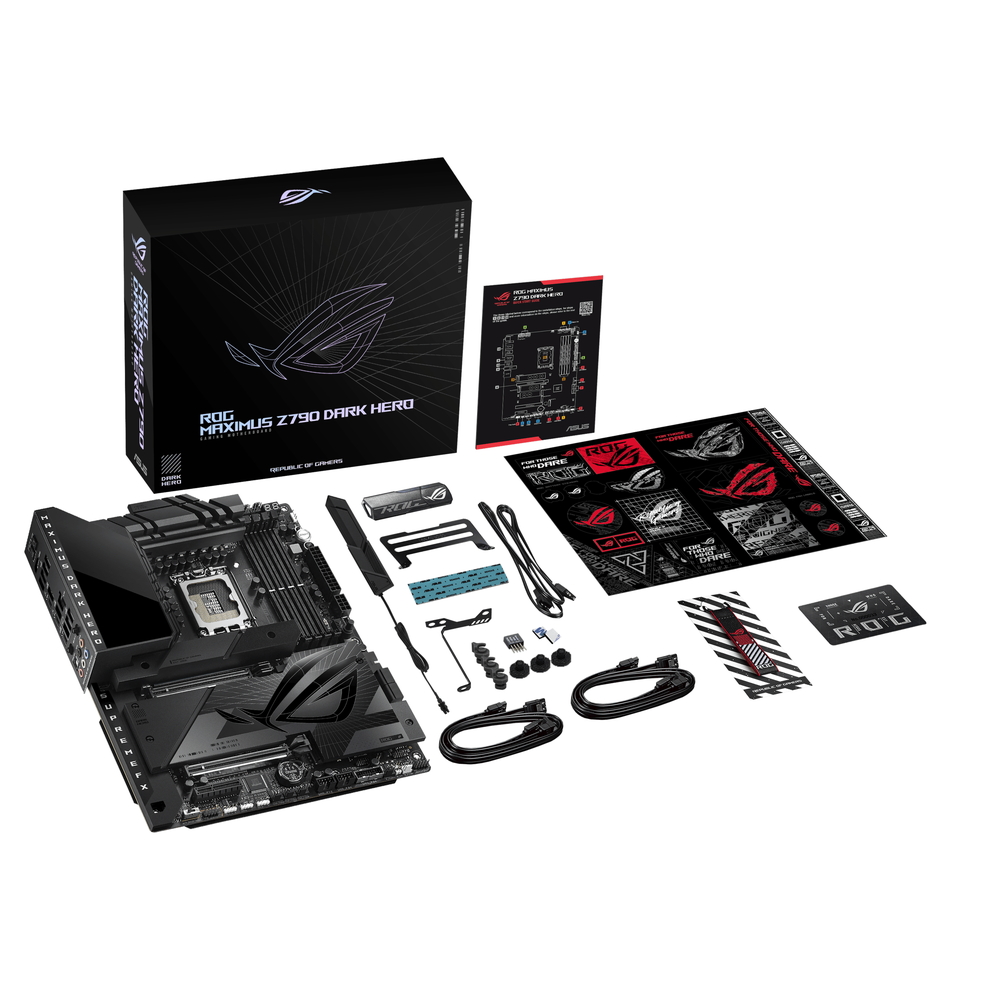

付属品 ARGB RGB extension cable × 1
SATA 6Gb/s cable × 4
Thermal pad for M.2 × 1
DDR5 fan holder × 1
ASUS WiFi Q-Antenna × 1
M.2 backplate Q-Latch package × 3
M.2 backplate Rubber Package × 3
Q-connector × 1
ROG stickers × 1
ROG key chain × 1
M.2 rubber package × 1
ROG VIP card × 1
USB drive with utilities and drivers × 1
Quick start guide × 1
