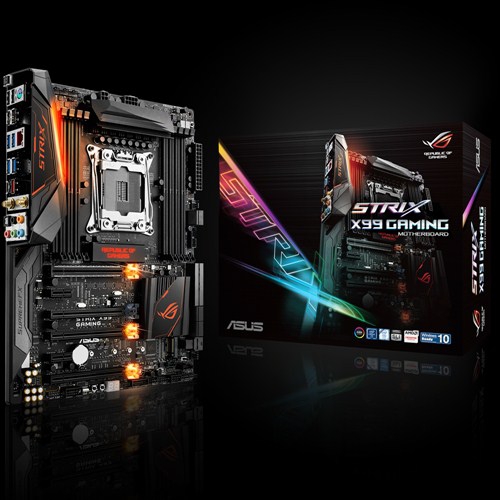

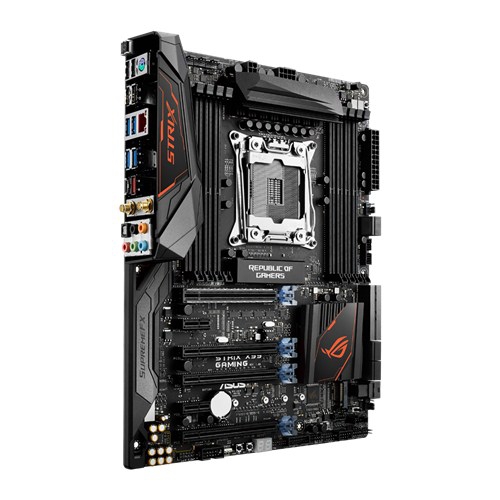

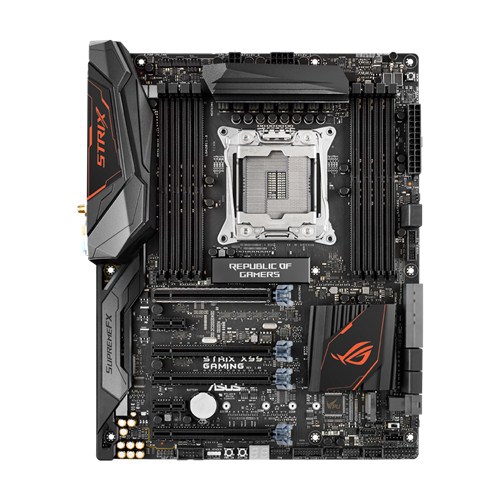

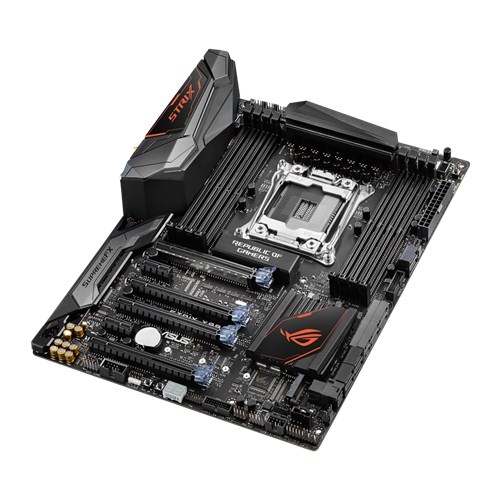

ROG STRIX X99 GAMING

ROG STRIX X99 GAMING

イルミネーション機能を搭載するR.O.G.シリーズのゲーマー向けIntel X99マザーボード

型番：ASU-STRIX-X99-GAMING

メーカー製品ページ

特徴

- LGA2011-v3対応
- Intel Core i7シリーズCPU対応
- Intel X99チップセット搭載
- DDR4メモリ×8枚（最大128GB）対応
- PCIe x16×4、PCIe x1×2
- SATA 6Gb/s×10、SATA Express×1、M.2×1、U.2×1
- USB 3.1 Type-A×1、USB 3.1 Type-C×1、USB 3.0×8、USB 2.0×8
- 1000BASE-T×1、IEEE802.11ac/n/a/g/b
- Bluetooth 4.1
- LEDでマザーボードを鮮やかに光らせる「ROG Aura」機能を搭載
- ゲーム用の「SupremeFX」オーディオ機能を搭載
- ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
- 安定性を高めたLGA2011-v3完全互換の独自ソケット「OC Socket」を搭載
- デジタル電源回路の「DIGI+ VRM」を搭載
- オーバークロック専用チップの「TPU」を搭載
- 省電力を実現する電力制御チップの「EPU」を搭載
- 業界最高水準の高性能ファンコントロール機能「Fan Xpert 4」を搭載
- 重いカードも安心な高耐久PCI Expressスロット「SafeSlot」を搭載
- USB 3.1の速度を上げる「USB 3.1 Boost」機能を搭載
- ATXフォームファクター

製品仕様

対応CPUIntel Socket 2011-v3 Core i7 X-Series Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 3.0
搭載チップセット Intel X99
対応メモリ8 x DIMM, Max. 128GB, DDR4- 3333(O.C.)/ 3300(O.C.)/ 3000(O.C.)/ 2800(O.C.)/2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
マルチGPU対応Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
拡張スロット3 x PCIe 3.0/2.0 x16 ( x16, x16/x16, x8/x16/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1 *1
ストレージ機能New Intel Core i7 X-Series Processors :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
1 x U.2 port, support PCIe 3.0 x4 NVM Express storage
Intel X99 chipset :
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s),
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*2
LAN機能Intel I218V, 1000BASE-T/100BASE-TX/10BASE-T×1
無線機能Wi-Fi 802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能Bluetooth 4.1

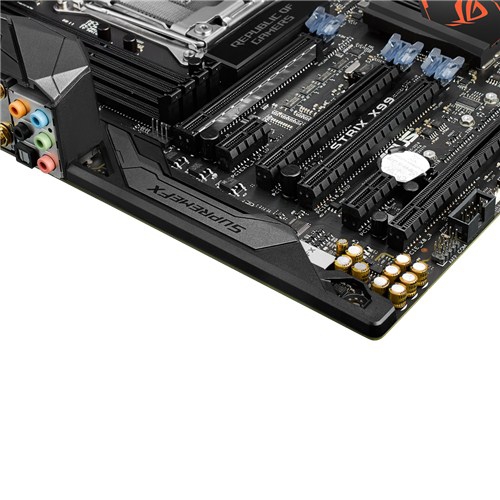

オーディオ機能ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar II
USB機能Intel X99 chipset :
5 x USB 3.0 port(s) (1 at back panel, blue, 4 at mid-board)
Intel X99 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
ASMedia USB 3.0 controller :
3 x USB port(s) (3 at back panel, blue)
ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C)
R.O.G.シリーズ独自搭載機能ROG RAMCache
Overwolf
GameFirst IV
USB BIOS Flashback
独自機能5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- ESD Guards
- USB 3.0 Boost
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache
AURA: RGB Lighting Control
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット/32ビット
Windows 7 64ビット/32ビット

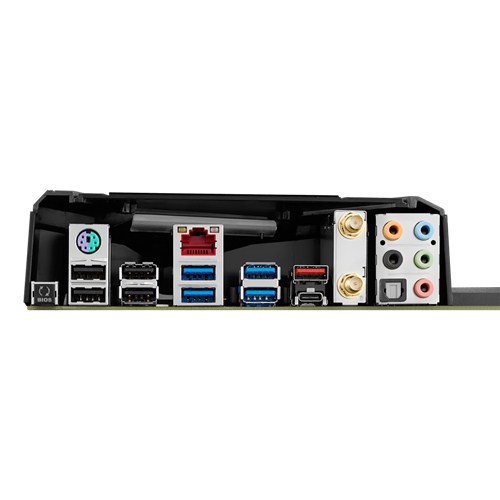

背面インターフェース1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
1 x USB 3.1 (red)Type-A
1 x USB 3.1 (black)Type-C
4 x USB 3.0 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
基板上インターフェース1 x U.2 port
1 x AAFP connector
1 x Aura RGB Strip Header
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan header (4-pin)
主な付属品User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Cable ties pack(s)
ROG Fan Label
1 x Extension Cable for RGB strips (80 cm)
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能WfM 2.0, WOL by PME, PXE
フォームファクター（サイズW×D）ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他*1 The PCIEX4_1, PCIEX1_2, and USB3.1_EC1EA2 connectors share the same bandwidth. By default, the PCIEX4_1 slot and PCIEX1_2 slot automatically run at x1 mode with USB3.1_EC1 and USB3.1_EA2 enabled for best resource optimization.
*2 These functions will work depending on the CPU installed.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
