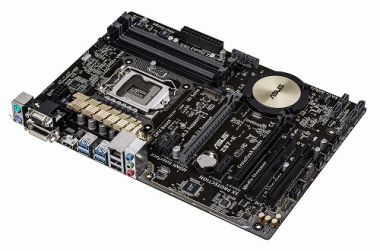

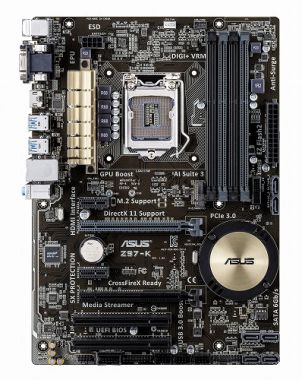

型番:ASU-Z97-K
マザーボードサイズ | ATX 30.5cm x 21.8cm |
CPUソケット | LGA1150 第四世代 Core i7 / i5 / i3 / Pentium / Celeron 対応 |
チップセット | Z97 |
メモリースロット | 4スロット 最大32GB |
メモリークロック | DDR3-1600/1333対応 3200(OC)デュアルチャンネル |
グラフィック | CPUに内蔵 |
映像出力 | 同時出力 3画面対応 |
- DisplayPort | - |
- DVI-D | 1ポート 1920x1200 60Hz |
- DVI-I | - |
- HDMI | 1ポート 4096x2160 24Hz / 2560x1600 60Hz |
- D-SUB | 1ポート 1920x1200 60Hz |
拡張スロット | 1x PCI-Express Gen3 x16 1x PCI-Express Gen2 x16(信号はx4)※ 2x PCI-Express Gen2 x1※ 2x PCI 32bit AMD Quad-GPU CrossFireX対応 ※x4ボードを使用した場合 PCIE x1 2スロットは使用できません。 |
M.2スロット | 1スロット(SATA 5/6と排他使用) |
SATA Express | - |
SATAポート | 6 x SATA 6Gbps Intel Rapid Storage Technology13 RAID0,1,5,10 Intel Rapid Start Technology,Intel Smart Connect Technologyサポート ※(2ポートは ポートはM.2と排他使用) |
LAN | 1x Gigabit LAN Realtek 8111GR |
Audio | ALC887 7.1ch freaturing Crystal Sound 2 |

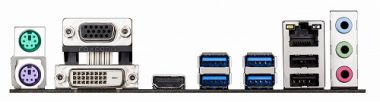

USB | USB3.0 IOパネル:4ポート 内部ピンヘッダ:2ポート USB2.0 IOパネル:2ポート 内部ピンヘッダ:6ポート |
対応OS | Windows 8.1 32bit/64bit Windows 8 32bit/64bit Windows 7 32bit/64bit |
付属品 | 2 x Serial ATA 6.0Gb/s cables 1 x IO-Shield 1 x User's manual |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
