MAXIMUS VII FORMULA

MAXIMUS VII FORMULA

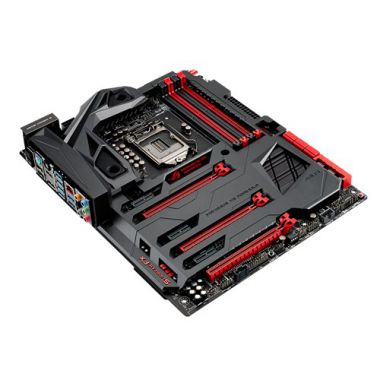

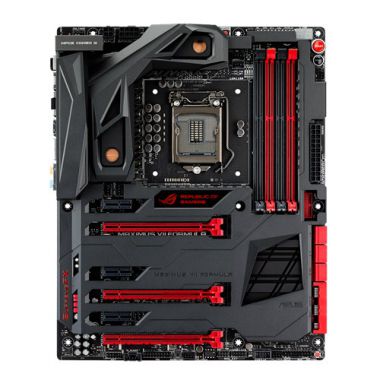

ゲーマー向けに特化した Intel Z97 マザーボード

型番：ASU-MAXIMUS/VII/FORMULA

メーカー製品HP

  • Intel LGA1150対応
  • Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
  • Intel Z97 Express Chipset搭載
  • M.2（SATA接続/PCI Express x2接続両対応）ソケット搭載
  • ビデオカードの熱からマザーボードを守る「ROG Armor」
  • すべてのキーボードにマクロ機能を追加する「KeyBot」機能
  • ASUS史上最高性能のファンコントロール機能
  • USBデバイスを安定させる強化型USBポート「TrueVolt USB」
  • 優れた信号特性を実現した独自LANポート「LANGuard」
  • ゲーム用PCに最適な「Extreme Engine Digi+ III」デジタル電源回路
  • 液冷対応VRMクーラー「CrossChill Copper」搭載
  • Intel LAN ＆ GameFirst III - ネットワークゲームを快適に楽しめる高速LAN機能
  • SupremeFX Formula 2014 - ゲームをクリアな音質で楽しめるオーディオ機能
  • Sonic Radar II - 敵の足音を画面上にグラフィカルに表示
CPU
Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/
Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット
Intel® Z97
メモリ
4 x DIMM, Max. 32GB, DDR3- 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/
2666(O.C.)/2400(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/
1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
マルチGPU機能
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
拡張スロット
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode) *1
3 x PCIe 2.0 x1
1 x PCIe 2.0 x1 Mini Card *
ストレージ機能
Intel® Z97 chipset :
1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, , , with M Key, type 2260 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s), red,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology,
Intel® Smart Connect Technology *3
ASMedia® SATA Express controller : *4
1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
ASMedia® ASM1061 controller : *4
2 x SATA 6Gb/s port(s), red,
LAN機能
Intel® I218V, 1000BASE-T/100BASE-TX/10BASE-T×1, featuring GAMEFIRST III
Intel® LAN- Dual interconnect between the Integrated LAN controller and
Physical Layer (PHY)
Anti-surge LANGuard
無線機能
Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Bluetooth機能
Bluetooth V4.0

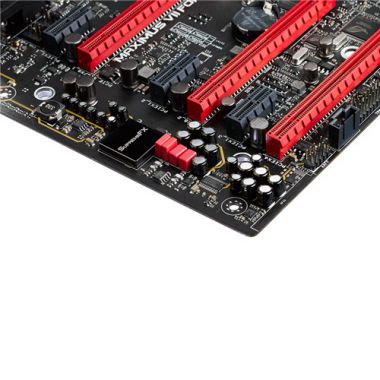

オーディオ機能
ROG SupremeFX Formula 2014 8-Channel High Definition Audio CODEC *4
- Supports : Jack-detection, Multi-streaming
- SupremeFX Shielding Technology
- Cirrus Logic® CS4398 DAC: 120 dB SNR, -107 dB THD+N (Max. 192 kHz/ 24 -bit)
- WIMA® film capacitors
- ELNA® premium audio capacitors
- TI LM4562 high-fidelity audio OP AMP(s)
Audio Feature :
- Blu-ray audio layer Content Protection
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II
USB
Intel® Z97 chipset : *5
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z97 chipset : *6
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
オーバークロック関連機能
CrossChill Copper (Hybrid air and liquid cooling)*7

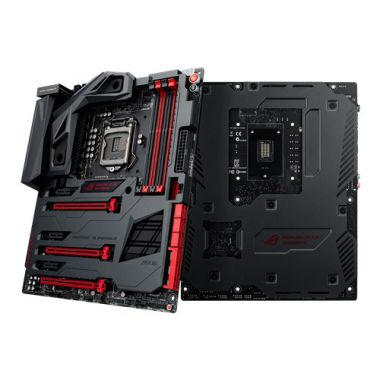

ROG Armor (including top cover and SECC steel backplate)*8

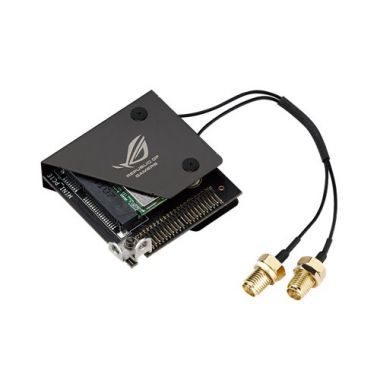

mPCIe Combo III (mPCIe/M.2 combo card)
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
Extreme Engine Digi+ III :
- 8 + 2 phase power design
- NexFET™ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ProbeIt
KeyBot
- CPU Level Up
- XMP
- Direct Key
UEFI BIOS features :
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
Extreme Tweaker
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 2, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Media Streamer
Operating System Support
Windows® 8.1
Windows® 8
Windows® 7

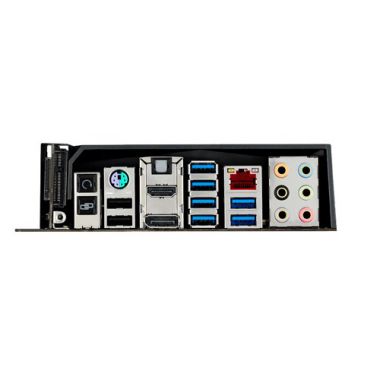

バックパネル
インターフェース
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
基板上インターフェース
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: red,
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
6 x Chassis Fan connector(s) (6 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
10 x ProbeIt Measurement Points
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x mPCIe Combo III connector(s)
1 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button
主な付属品
User's manual
I/O Shield
8 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo III card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0 module
1 x ROG Door Hanger(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0,
Multi-language BIOS
Manageability
WfM2.0, DMI2.7, WOL by PME, PXE
サポートDVD
Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
HomeCloud
ASUS Utilities
フォームファクター／サイズ（W×D）
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他
1. The PCIe 2.0 x 16 slot (PCIEX4_3) shares bandwidth with SATAExpress_E1 connector. The default setting is in Auto mode that automatically optimizes the system bandwidth. If you install PCIe 2.0 x4 device, the system will automatically detect and disable SATAExpress_E1 connector.
2. The mPCIe slot is on mPCIe Combo III card and pre-installed with a Wi-Fi/Bluetooth module.
3. The functions support depends on the CPU types.
4. These SATA ports are for data hard drives only. ATAPI devices are not supported.
5. Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.1/8.
6. 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
7. Supports G1/4" threaded fittings. Fittings require separate purchase.
8. Chassis must conform to ATX specification for successful installation: brass stand-offs of at least 6mm are required.



※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
