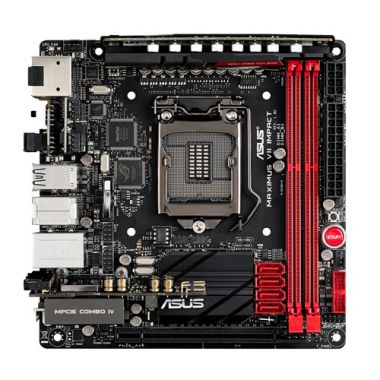

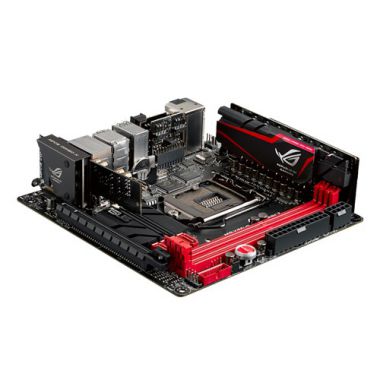

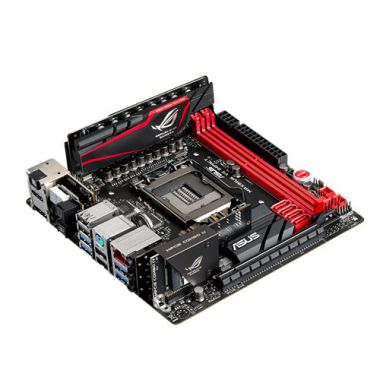

MAXIMUS VII IMPACT

MAXIMUS VII IMPACT

多くの機能を垂直配置にすることでMini-ITXサイズでの高性能高機能化を実現したゲーマー向けZ97マザーボード

型番：ASU-MAXIMUS/VII/IMPACT

メーカー製品HP

  • Intel LGA1150対応
  • Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
  • Intel Z97 Express Chipset搭載
  • M.2（PCI Express 3.0 x4接続）ソケット搭載
  • 垂直搭載のデジタル電源回路「Impact Power II」

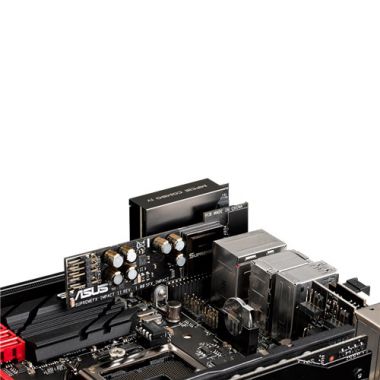

  • ゲーム用オーディオ機能「SupremeFX Impact II」

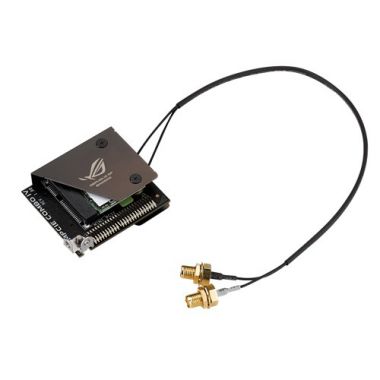

  • M.2とPCIe 2.0 Mini Cardスロットを垂直搭載する「mPCIe Combo IV」
  • 巨大CPUクーラーを装着可能にするファン接続ハブ「Impact CoolHub」
  • すべてのキーボードにマクロ機能を追加する「KeyBot」機能
  • 優れた信号特性を実現した独自LANポート「LANGuard」
  • Intel LAN ＆ GameFirst III - ネットワークゲームを快適に楽しめる高速LAN機能
  • Sonic Radar II - 敵の足音を画面上にグラフィカルに表示
CPU
Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/
Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット
Intel® Z97
メモリ
2 x DIMM, Max. 16GB, DDR3- 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/
2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/
1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160
@ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up
to 3 displays
拡張スロット
1 x PCIe 3.0/2.0 x16 *1
1 x PCIe 2.0 x1 Mini Card *2
ストレージ機能
Intel® Z97 chipset :
4 x SATA 6Gb/s port(s), red, with M key, type 2242/2260/2280 storage devices
support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology,
Intel® Smart Connect Technology *3
PCI Express gen 3.0 : *1
1 x M.2 Socket 3 on mPCIe Combo IV expansion card(s), black, *4with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
Support M.2 Type 2242/2260/2280/22110 SSD card (up to 110mm in length),
support PCI express 3.0 x4 standard
LAN機能
Intel® I218V, 1000BASE-T/100BASE-TX/10BASE-T×1, featuring GAMEFIRST III
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical
Layer (PHY)
Anti-surge LANGuard
無線機能
Wi-Fi 802.11a/b/g/n/ac*5
Supports dual band frequency 2.4/5 GHz
Support ASUS Wi-Fi Go! Utility
Bluetooth機能
Bluetooth V4.0
オーディオ機能
ROG SupremeFX Impact II 8-Channel High Definition Audio CODEC *6
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Blu-ray audio layer Content Protection
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II
USB
Intel® Z97 chipset : *7
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z97 chipset : *8
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
オーバークロック
関連機能
SupremeFX Impact II
Impact CoolHub
mPCIe Combo IV (mPCIe/M.2 combo card)
Impact Power II :
- 8 + 2 phase power design
- NexFET™ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
Mem TweakIt
ROG Extreme OC kit :
- LN2 Mode *9
ProbeIt
KeyBot
- CPU Level Up
- XMP
- Direct Key
UEFI BIOS features :
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
Extreme Tweaker
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key
perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 2, and Turbo App together, providing better CPU performance, efficient power saving, precise digital
power control, whole system cooling and even tailor your own app usages.
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse,
File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Cable
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Media Streamer
Turbo App
Operating System Support
Windows® 8.1
Windows® 8
Windows® 7

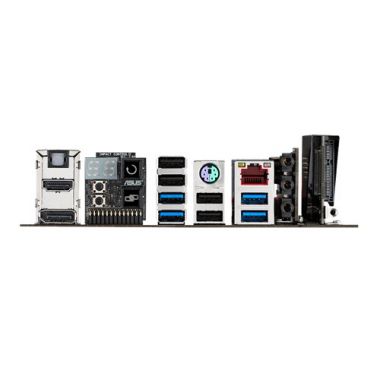

バックパネル
インターフェース
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
3 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
1 x Q-Code LED
1 x Sonic SoundStage button
1 x KeyBot button
基板上
インターフェース
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s) *9
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)*10
1 x System panel(s)
10 x ProbeIt Measurement Points
1 x LN2 Mode header(s)*9
1 x Power-on button(s)
1 x Reset button(s)
1 x mPCIe Combo IV connector(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Impact CoolHub connector(s)
1 x SupremeFX Impact II connector(s)
主な付属品
User's manual
1 x ASUS Q-Cable
1 x SupremeFX Impact II audio card(s)
1 x Optional 4-in-1 washers for CPU cooler backplate
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo IV card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0 module
1 x Impact CoolHub card(s)
BIOS
64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI5.0 Multi-Language BIOS
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
サポートDVD
Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
Home Cloud
ASUS Utilities
フォームファクター／サイズ（W×D）
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他
*1: The M.2 slot shares bandwidth with PCIe 3.0/2.0 X16 slot. Bandwidth on the PCIe 3.0/2.0 x16 slot becomes x8 when M.2 device is inserted.
*2: The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo IV expansion card.
*3: The functions support depends on the CPU types.
*4: M.2 slot supports PCIE mode storage device only.
*5: The module is pre-installed on mPCIe Combo IV expansion card.
*6: 8-channel audio output is supported by jack-retasking using a chassis with HD audio module in the front panel.
*7: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under WindowsR 8.1/8.
*8: 2 x USB2.0 ports at mid-board (USB1213) shares with ROG extension (ROG_EXT) port.
*9: 1 x LN2 mode header and CHAFAN_2/3 locate on Impact CoolHub card.
*10: AAFP header locates on the SupremeFX Impact II card.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
