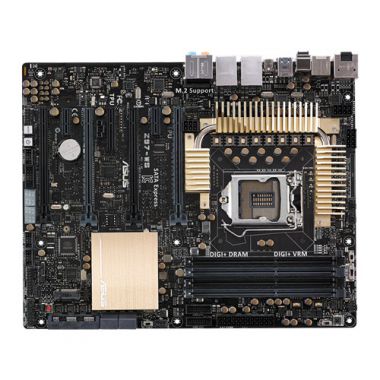

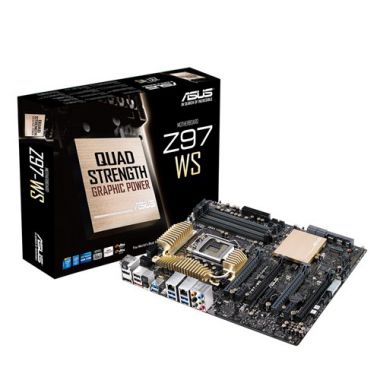

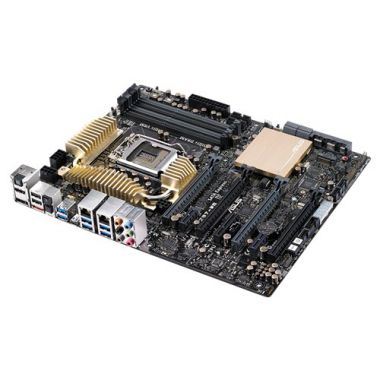

Z97-WS

Z97-WS

4-way SLI/CrossFireXに対応するZ97ワークステーションマザーボード

型番：ASU-Z97-WS

メーカー製品HP

  • 4-way SLI/CrossFireXに対応 / ビデオカードを4枚使用することで
　　グラフィックス性能やGPU性能を大幅に向上可能
  • 高性能な電源回路 / 最高レベルの部品をふんだんに使用した高効率電源回路
  • 5-Way Optimization by Dual Intelligent Processors 5 / ワンクリックでPCを自動カスタマイズ
  • より使いやすくなった新しいUEFI BIOS
  • M.2 & SATA Express / - PCの速度を向上する転送速度10Gb/sのストレージインターフェース
CPU
Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/
Core™ i3/Pentium®/Celeron®/Xeon® E3-1200/12x5 v3 series Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット
Intel® Z97
メモリ
4 x DIMM, Max. 32GB, DDR3- 3300(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/
2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/
2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
IIntegrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort /Mini DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz /
  2560 x 1600 @ 60 Hz
- Supports Mini DisplayPort with max. resolution 4096 x 2160 @ 24 Hz /
  2560 x 1600 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
マルチGPU機能
Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
拡張スロット
4 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8 or quad x8)
1 x PCIe 2.0 x4 (x4 mode) *2
2 x PCIe 2.0 x1
ストレージ機能
Intel® Z97 chipset :
1 x SATA Express port, blackcompatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support
(both SATA & PCIE mode)
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology,
Intel® Smart Connect Technology *2
ASMedia® SATA Express controller :
1 x SATA Express port, blackcompatible with 2 x SATA 6.0 Gb/s ports
ASMedia® PCIe SATA controller :
1 x eSATA 6Gb/s port(s),
LAN機能
Intel® I210-AT
Intel® I218LM
オーディオ機能
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear)
  and 104 dB SNR recording input
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
IEEE1394
VIA® 6315N controller
1 x IEEE 1394a port(s)
USB
Intel® Z97 chipset :
5 x USB 3.0/2.0 port(s) (4 at back panel, blue, 1 at mid-board)
Intel® Z97 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
ASMedia® USB 3.0 controller :
5 x USB 3.0/2.0 port(s) (2 at back panel, , 3 at mid-board)
Workstation Feature
4 x PCIe x 16 slot(s)
ASUS Dr. Power
12K hours Capacitors
ProCool Power Connector
Q-Code Logger
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key
perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3,
and Turbo App together, providing better CPU performance, efficient power saving,
precise digital power control, whole system cooling
and even tailor your own app usages.
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
Media Streamer
Special Memory O.C. Design
Turbo App
Fan Xpert 3
Operating System Support
Windows® 8.1
Windows® 8
Windows® 7

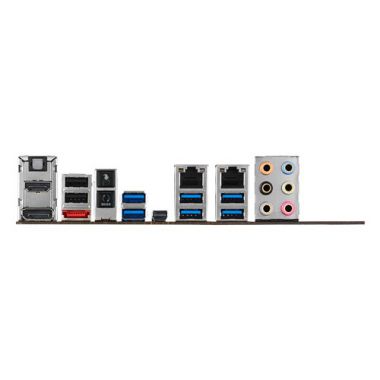

バックパネル
インターフェース
1 x DisplayPort
1 x HDMI
1 x eSATA
2 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
2 x USB 2.0 *3
1 x Optical S/PDIF out
1 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x Mini DisplayPort(s)
1 x Q-Code Logger button
基板上
インターフェース
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: black,
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
2 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x EZ XMP switch
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Dr.Power switch(es)
主な付属品
User's manual
ASUS Q-Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB2.0 + 1394 bracket(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0,
SM BIOS 2.8, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard,
F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD
(Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
サポートDVD
Drivers
ASUS Utilities
フォームファクター／サイズ（W×D）
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他
*1 The PCIe x4_1, USB3_E56 and SATAExpress_E1 connectors share the same bandwidth.
The PCIe x4_1's default setting is in Auto mode that automically optimizes
the system bandwidth. If you use two of these connectors, the system automatically
disables the unused connector.
*2 These functions will work depending on the CPU installed
*3 1 supports USB BIOS Flashback, 1 supports Q-Code Logger

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
