XONAR U5

XONAR U5

Compact 5.1-channel USB sound card and headphone amplifier with 192kHz/24-bit HD sound and Sonic Studio suite

True 5.1-channel HD (192kHz/24-bit) surround sound from a compact USB-powered device
104dB signal-to-analog ratio (SNR) ensures pure sound
Sonic Studio provides complete control over loads of sound technologies
Perfect Voice technology eliminates noises for clear in-game communications
Independent mic and master-volume controls for instant in-game adjustments
Integrated headphone amplifier provides clear, detailed sound for an immersive audio experience

型番：ASU-XONAR/U5

メーカー製品HP

Audio Interface USB
Audio Performance Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
104 dB
Output THD+N at 1kHz (Front-out) :
>0.005 %(-86 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 44 KHz
Output/Input Full-Scale Voltage :
Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p)
Headphone output : 1.3 Vrms (3.677 Vp-p)
チップセット Audio Processor :C-Media CM6631A High-Definition Sound Processor
Sample Rate and Resolution Analog Playback Sample Rate and Resolution :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit

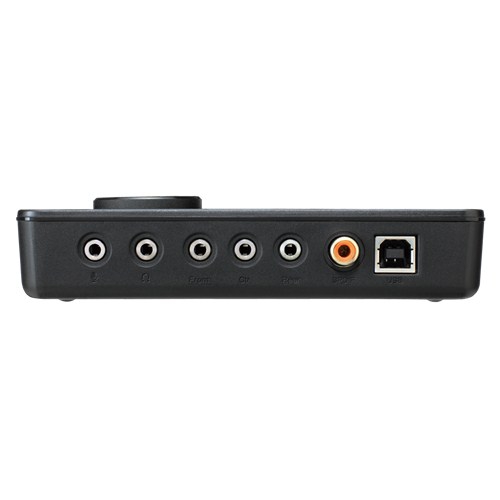

Connectivity Analog Output
4 x 3.5 mm jack (1/8") (Headphone out /Front out/Center-Subwoofer out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Coaxial)
Special Features Sonic Studio
OS Windows 8.1
Windows 8 64ビット/32ビット
Windows 7 64ビット/32ビット
Mac OS X 以降
主な付属品 S/PDIF adapter x 1
USB cable x 1
Driver CD x 1
Quick start guide x 1
サイズ 138 x 80 x 25 mm ( L x W x H )
その他 * Xonar U5 playback under OS X without any driver needed.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
