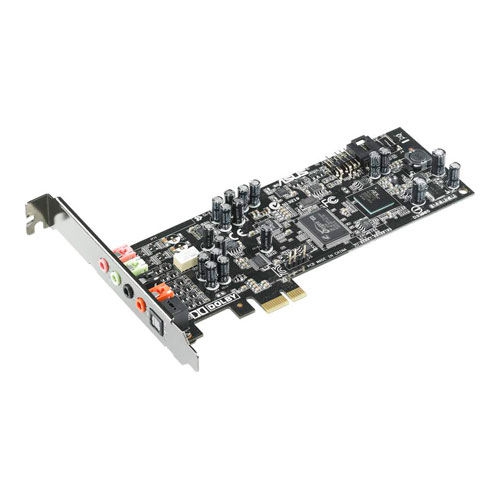

XONAR DGX

XONAR DGX

PCI Express 5.1-channel gaming audio card

Built-in Headphone AMP to power up every sound detail in gaming
3 headphone AMP gain modes for different usage scenarios - VOIP, pro-gaming, exciter
Dolby? Headphone technology for an immersive 5.1 surround experience
ASUS exclusive GX2.5 gaming audio engine for realistic 3D audio effects

型番：ASU-XONAR/DGX

メーカー製品HP

Audio Interface PCI Express
Audio Performance Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
105 dB
Input Signal-to-Noise Ratio (A-Weighted) :
103 dB
Output THD+N at 1kHz (Front-out) :
<0.0025 %(-92 dB)
Input THD+N at 1kHz :
<0.0022 %(-93 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
Chipset Audio Processor :C-Media CMI8786 High-Definition Sound Processor (Max. 96KHz/24bit)
Sample Rate and Resolution Analog Playback Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96KHz @ 16bit/24bit
Special Features Smart Volume Normalizer
Xear 3D Virtual Speaker Shifter
Magic Voice
Karaoke Functions
FlexBass
10 -band Equalizer
27 Environment Effects
GX2.5 Gaming Audio Engine
VocalFX
Accessories Low -profile Bracket x 1
Driver CD x 1
Quick Start Guide x 1
Dimensions 170.44 x 64.39 mm ( L x W )

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
