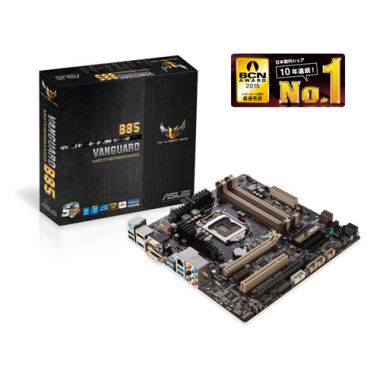

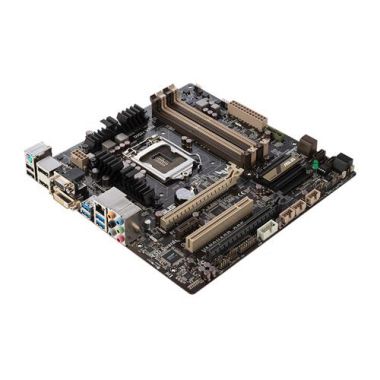

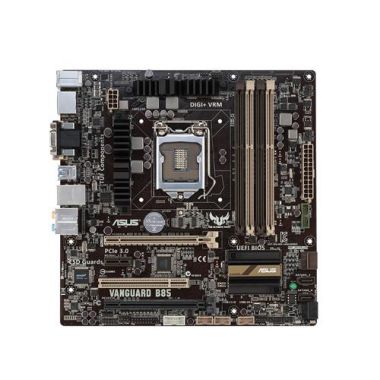

VANGUARD B85

VANGUARD B85

サーバー製品と同じ耐久テストをクリアした高耐久特化マザー

- Intel B85
- DDR3メモリ×4（最大32GB）
- PCIe 3.0 x16×1、PCIe 2.0 x16×1、PCIe 2.0 x1×1、PCI×1
- AMD CrossFireX
- DisplayPort×1、HDMI×1、DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×4、SATA 3Gb/s×2
- 1000BASE-T×1
- USB 3.0×6、USB 2.0×8
- TUF ENGINE!

型番：ASU-VANGUARD/B85

メーカー製品HP

CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット Intel B85
メモリ 4 x DIMM, Max. 32GB, DDR3- 1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
グラフィックス機能 Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort 3.2.1 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
マルチGPU機能 Supports AMD Quad-GPU CrossFireX Technology
拡張スロット 1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI
ストレージ機能 Intel B85 chipset :
4 x SATA 6Gb/s port(s), brown
2 x SATA 3Gb/s port(s), black
Supports Intel Rapid Start Technology, Intel Smart Connect Technology
LAN機能 Intel I217V
オーディオ機能 Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Intel B85 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel B85 chipset :
8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
Special Features TUF ENGINE! Power Design :
- 4 +1 Digital Phase Power Design
- TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ VRM Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Radar Core
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Operating System Support Windows 8
Windows 7

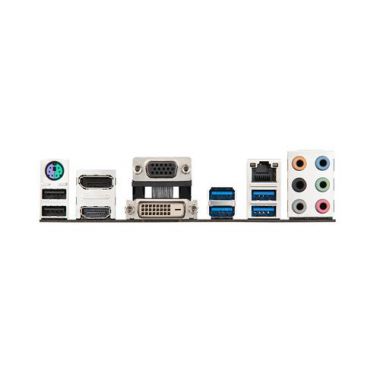

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
6 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
主な付属品 User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE
サポートDVD Drivers
ASUS Utilities
ASUS/TUF CPU-Z
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D） uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
その他 *DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
