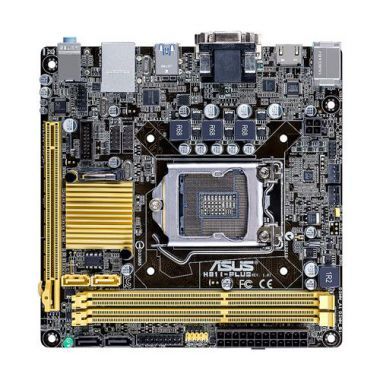

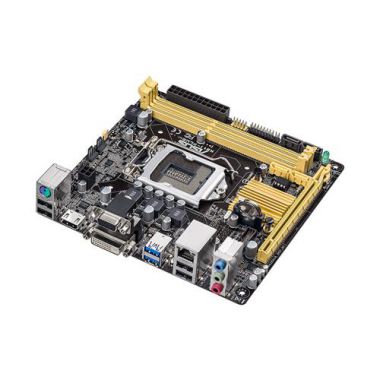

H81I-PLUS

H81I-PLUS

Affordable Mini-ITX build with precise digital power design and superfast USB 3.0 transfer speed

New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
Network iControl: Real-time network bandwidth management
AI Suite 3: One-stop access to innovative ASUS features
EPU:All-round energy efficiency

型番：ASU-H81I-PLUS

メーカー製品HP

CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット Intel H81
メモリ 2 x U-DIMM, Max. 16GB, DDR3- 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
グラフィックス機能 Integrated Graphics Processor
- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
拡張スロット 1 x PCIe 2.0 x16
ストレージ機能 Intel H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel Rapid Start Technology, Intel Smart Connect Technology *1
LAN機能 Realtek RTL8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887 8-Channel High Definition Audio CODEC *2
USB Intel H81 chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
Intel H81 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
Special Features ASUS EPU :
- EPU
ASUS Digital Power Design :
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
100% All High-quality Conductive Polymer Capacitors
Operating System Support Windows 8
Windows 7

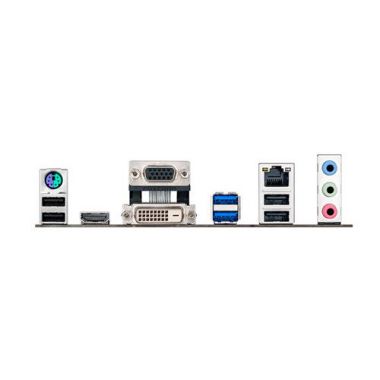

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a
Manageability WOL by PME, PXE
サポートDVD Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D） Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他 *1-1:Due to the limitation of the Intel H81chipset, Intel Rapid Start Technology can be configured only from the BIOS Setup program.
*1-2:These functions will work depending on the CPU installed.
*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
