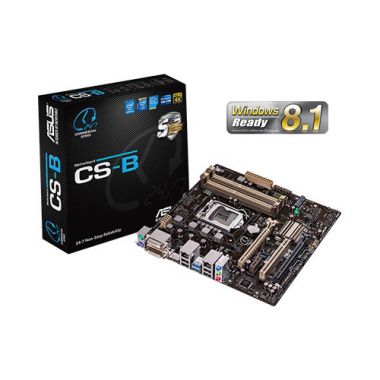

CS-B

CS-B

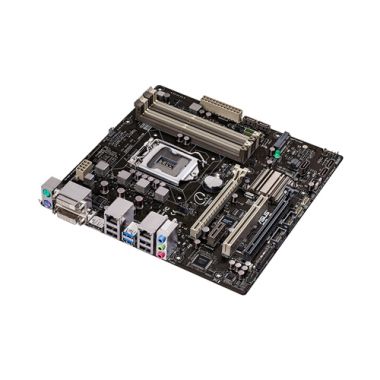

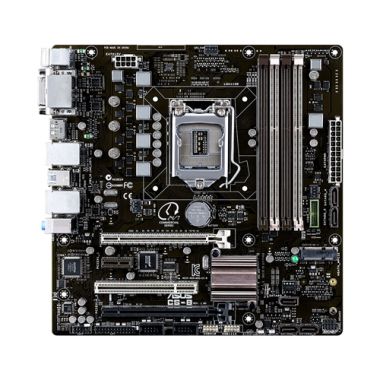

Intel Q87チップセットを搭載する常時稼働の業務用途向けmicroATXマザーボード

LGA1150 socket for 4th Generation Intel?Core? i7/ i5/ i3/ Pentium?/ Celeron? Processors
Intel? Q87 Express Chipset
The highest testing standards ensure reliability and durability in long-term usage
Bespoke Motherboard Design & Commercial Focused Features - Building on ASUS' extensive experience in motherboard technologies that allow the system to keep running stable and nonstop, 24-7
Enhanced with TUF components which are certified for military-grade reliability

型番：ASU-CS-B

メーカー製品HP

CPUIntel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
チップセット Intel Q87
メモリ4 x DIMM, Max. 32GB, DDR3- 1600/1333/1066 MHz Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能Integrated Graphics Processor
Multi-VGA output support : DVI-D/DVI-I/DisplayPort ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI-I with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports up to 3 displays simultaneously
拡張スロット1 x PCIe 3.0/2.0 x16 (beige)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1 (brown)
1 x PCI (beige)
1 x PCIe 2.0 x1 Mini Card (full-length, black) *
ストレージ機能Intel Q87 chipset : *
5 x SATA 6Gb/s port(s), brown
1 x mini-SATA 6Gb/s port(s), black,
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
LAN機能Intel I217LM, 1000BASE-T/100BASE-TX/10BASE-T×1
Realtek 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能Realtek ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USBIntel Q87 chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
Intel Q87 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
Special Features- TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
ASUS Exclusive Features :
- AI Suite 3
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
TPM IC Onboard
Bespoke Motherboard Design & Commercial Focused Features :
- Layout Design: Maximized microATX layout for better thermal performance
- ASUS Watchdog Timer AP: Your system will always run, non-stop
- Total ESD Guard: Strongest electrostatic protection for maximum lifespan
- Stainless Steel Back I/O: Three times more corrosion resistance
- Overcurrent Protection: Short circuit prevention, protects your system
Operating System SupportWindows 8
Windows 7

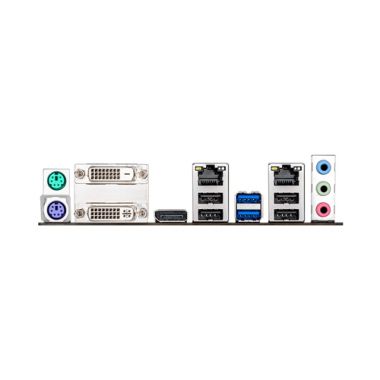

背面インターフェース1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x DVI-I
1 x DisplayPort
2 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
基板上インターフェース1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT header
2 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x mSATA connector
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
主な付属品User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
サポートDVDDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D）mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
その他* Mini-SATA and mini-PCIe share the same slot. When mini-SATA card is inserted, mini-PCIe will not be usable, and vice versa.
* Full-length mini-PCIe slot supports full/half length mini card.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
