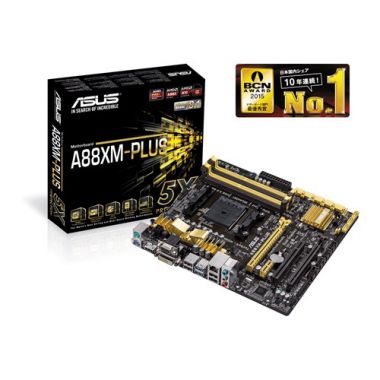

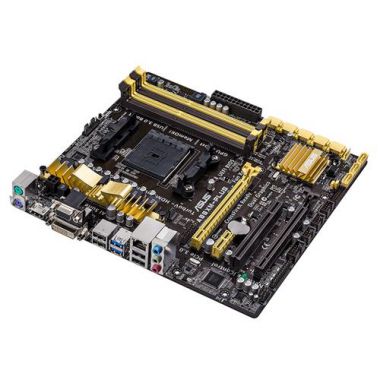

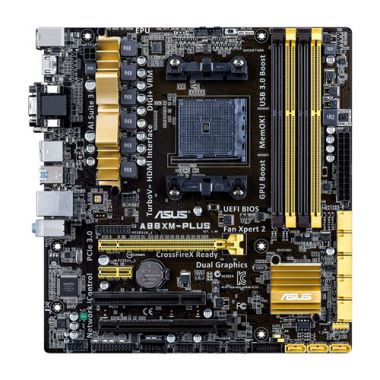

A88XM-PLUS

A88XM-PLUS

A88X motherboard with FM2+ Socket boosts integrated graphics on all APUs and features intuitive UEFI BIOS

GPU Boost -Unlock integrated graphics performance for up to 30% boost
ASUS 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
Fan Xpert 2 - Comprehensive controls for the perfect cool and quiet balance
New UEFI BIOS ? Friendlier, easier, and more intuitive with helpful info added
USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0

型番：ASU-A88XM-PLUS

メーカー製品HP

CPU AMD Socket FM2+ Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list
チップセット AMD A88X (Bolton D4)
メモリ 4 x DIMM, Max. 64GB, DDR3- 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
グラフィックス機能 Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support *2
マルチGPU機能 Supports AMD CrossFireX Technology
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16 mode) *3
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
1 x PCI
ストレージ機能 AMD A88X FCH(Bolton D4) chipset :
8 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10, JBOD
LAN機能 Realtek 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887 8-Channel High Definition Audio CODEC *4
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB AMD A88X FCH(Bolton D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A88X FCH(Bolton D4) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Special Features ASUS 5X Protection :
- ASUS DIGI+ VRM - 4 + 2 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- TurboV EVO
- GPU Boost
- MemOK!
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
Operating System Support Windows 8.1 64ビット/32ビット
Windows 8 64ビット/32ビット
Windows 7 64ビット/32ビット
Windows XP 32ビット

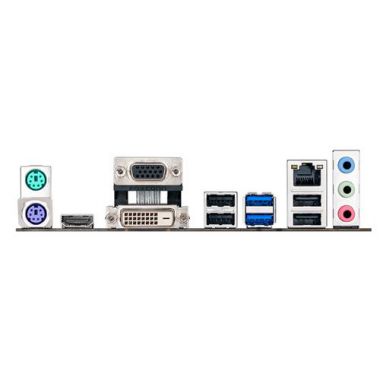

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)
主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
サポートDVD Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
フォームファクター／サイズ（W×D） mATX Form Factor
9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
その他 *1:Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.
*2:Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
*3:Only FM2+ Processors can support PCIe3.0.
*4:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
