A68HM-E

A68HM-E

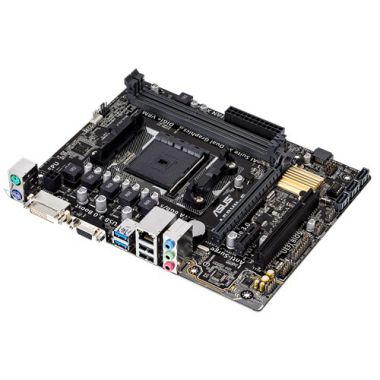

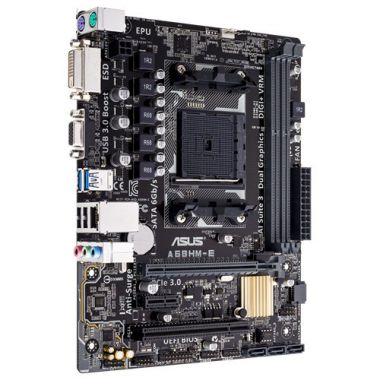

低ノイズにこだわったオーディオ機能を搭載するmicroATXマザーボード

- Socket FM2+対応
- AMD A/AthlonシリーズAPU対応
- AMD A68Hチップセット搭載
- DDR3メモリ×2枚（最大32GB）対応
- DVI-D×1、D-Sub 15ピン×1
- PCIe 3.0 x16×1、PCIe 2.0 x1×1、PCI×1
- SATA 6Gb/s×4
- USB 3.0×2、USB 2.0×6
- 1000BASE-T×1
- 安心の独自基準「5X PROTECTION」を

型番：ASU-A68HM-E

メーカー製品HP

CPU AMD Socket FM2+ Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list
チップセット AMD A68H FCH (Bolton D2H)
メモリ 2 x DIMM, Max. 32GB, DDR3- 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
グラフィックス機能 Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support *1
拡張スロット 1 x PCIe 3.0/2.0 x16 *2
1 x PCIe 2.0 x1
1 x PCI
ストレージ機能 AMD A68H FCH (Bolton D2H) chipset :
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD
LAN機能 Realtek 8111GR, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887-VD 8-Channel High Definition Audio CODEC *3
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB AMD A68H FCH (Bolton D2H) chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
AMD A68H FCH (Bolton D2H) chipset :
2 x USB 3.0 port(s) (2 at back panel, )
Special Features ASUS 5X Protection :
- ASUS DIGI+ VRM - 3 + 2 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
Operating System Support Windows 8.1 64ビット/32ビット
Windows 8 64ビット/32ビット
Windows 7 64ビット/32ビット
Windows XP 32ビット

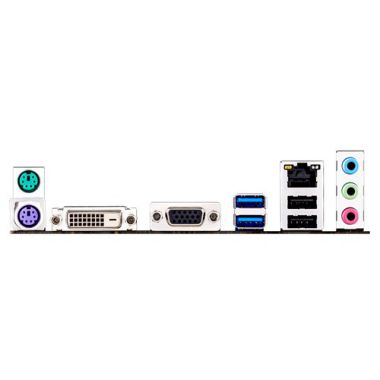

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0
2 x USB 2.0
3 x Audio jack(s)

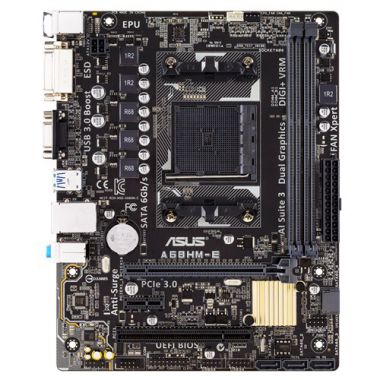

基板上インターフェース 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

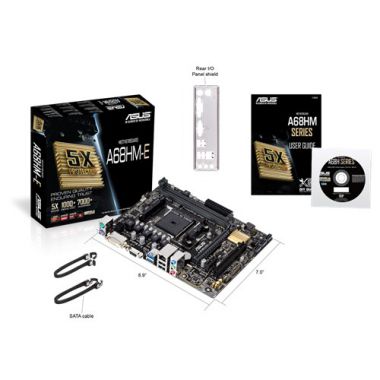

主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
サポートDVD Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D） mATX Form Factor
8.9 inch x 7.0 inch ( 22.6 cm x 18.0 cm )
その他 *1: Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
*2: Only FM2+ Processors can support PCIe3.0.
*3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
