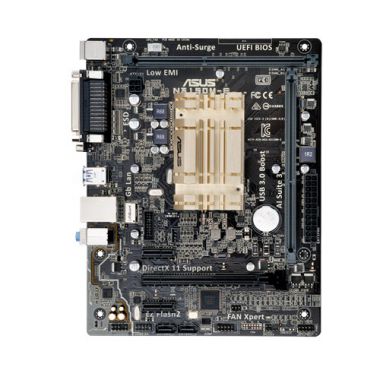

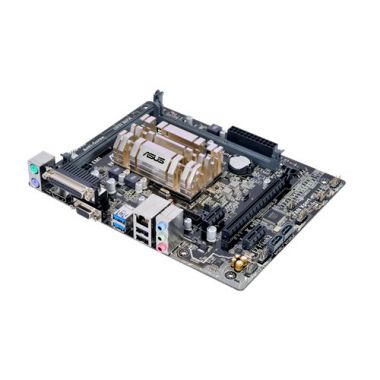

Low-power, fanless motherboard for Intel Celeron? SoC N3150 processors, with 5X Protection and HDMI/D-Sub support
型番:ASU-N3150M-E
CPU | Intel Celeron Quad-Core N3150 SoC onboard Processors |
メモリ | 2 x U-DIMM, Max. 8GB, DDR3- 1600/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
グラフィックス機能 | Integrated Graphics Processor Multi-VGA output support : HDMI/RGB ports - Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB |
拡張スロット | 1 x PCIe 2.0 x16 (x1 mode) 2 x PCIe 2.0 x1 |
ストレージ機能 | Built-in Controller : 2 x SATA 6Gb/s port(s), dark brown, Supports Intel Smart Connect Technology |
LAN機能 | Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1 |
オーディオ機能 | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *1 |
USB | Built-in Controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) GL852G USB Hub : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
Special Features | ASUS 5X Protection : - ASUS LANGuard - Advanced LAN protection - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS Exclusive Features : - AI Suite 3 - Anti-Surge - Low EMI Solution - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
Operating System Support | Windows 8.1 64ビット |
背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 2 x USB 2.0 1 x Parallel port(s) 3 x Audio jack(s) |
基板上インターフェース | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) |

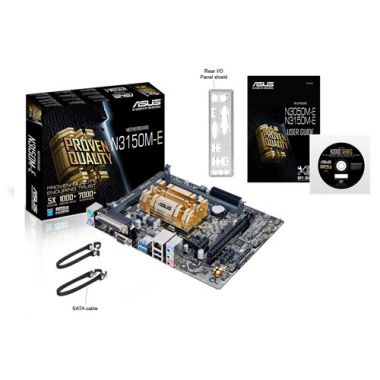

主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) |
BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
サポートDVD | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
フォームファクター/サイズ(W×D) | mATX Form Factor 8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm ) |
その他 | *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
