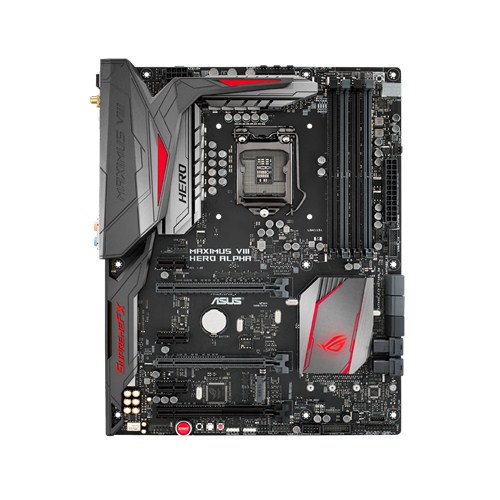

ROG MAXIMUS VIII HERO ALPHA

ROG MAXIMUS VIII HERO ALPHA

U.2など最新のインターフェースを搭載し市販のLEDテープも使用できるゲーマー向けIntel Z170マザーボード

型番：ASU-MAXIMUS/VIII/HERO/ALPHA

メーカー製品ページ

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel Z170チップセット搭載
- DDR4メモリ×4枚（最大64GB）対応
- DisplayPort 1.2×1、HDMI 1.4b×1
- PCIe 3.0 x16×3、PCIe 3.0 x1×3
- SATA 6Gb/s×6、M.2×1、U.2×2
- USB 3.1 Type-A×1、USB 3.1 Type-C×1、USB 3.0×6、USB 2.0×6
- 1000BASE-T×1、IEEE802.11ac/n/a/g/b
- Bluetooth 4.1
- LEDでマザーボードを美しく照らす「ROG Aura」機能を搭載
- ゲーム用の「SupremeFX 2015」オーディオ機能を搭載
- ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
- デジタル電源回路「Extreme Engine Digi+」
- 外部クロックジェネレーターチップ「PRO Clock」
- オーバークロック専用チップ「TPU」
- 省電力を実現する電力制御チップ「EPU」
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert 3」
- USB 3.1をブーストする「USB 3.1 Boost」
- ATXフォームファクター



製品仕様

対応CPU Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel Z170
対応メモリ 4 x DIMM, Max. 64GB, DDR4- 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3500(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
グラフィックス機能 Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
マルチGPU対応 Supports NVIDIA Quad-GPU SLI Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, +black)
3 x PCIe 3.0/2.0 x1
ストレージ機能 Intel Z170 chipset :
2 x U.2 port*1,
1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports*3
Supports Intel Smart Response Technology*3
ASMedia ASM1061 controller :
2 x SATA 6Gb/s port(s), black, *4,
LAN機能 Intel I219V, 1000BASE-T/100BASE-TX/10BASE-T×1, GameFirst technology
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
無線機能 Wi-Fi 802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能 Bluetooth 4.1
オーディオ機能 ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS ES9023P
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
USB機能 Intel Z170 chipset :
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
Intel Z170 chipset : *5
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Intel USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, black, Type-C)
Intel USB 3.1 controller :
1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
R.O.G.シリーズ独自搭載機能 Start Button
Reset Button
LN2 Mode
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
独自機能 OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache
動作対応OS Windows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット

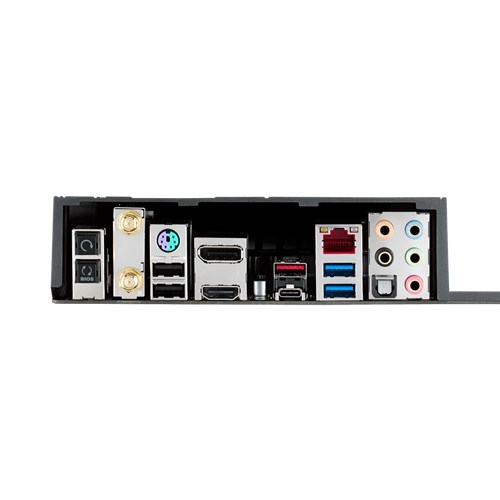

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
1 x USB 3.1 (red)Type-A
2 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
2 x Wi-Fi antenna port(s)
1 x USB BIOS Flashback Button(s)

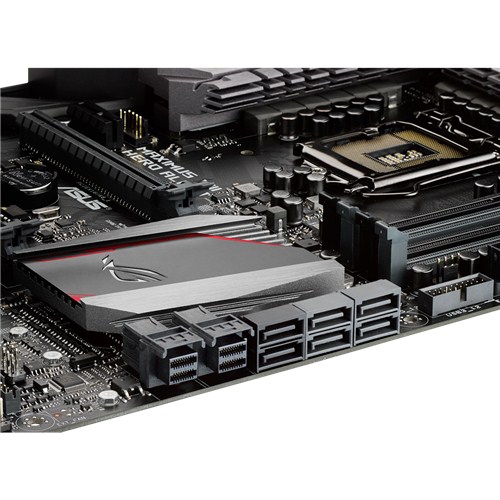

基板上インターフェース 2 x U.2 port

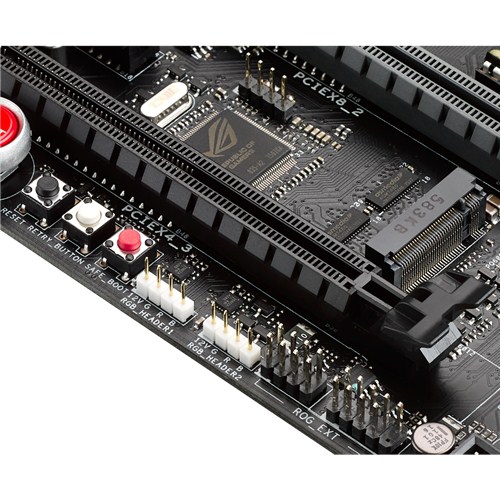

2 x Aura RGB Strip Headers
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x Slow Mode jumper(s)
主な付属品 User's manual
ASUS Q-Shield
6 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD

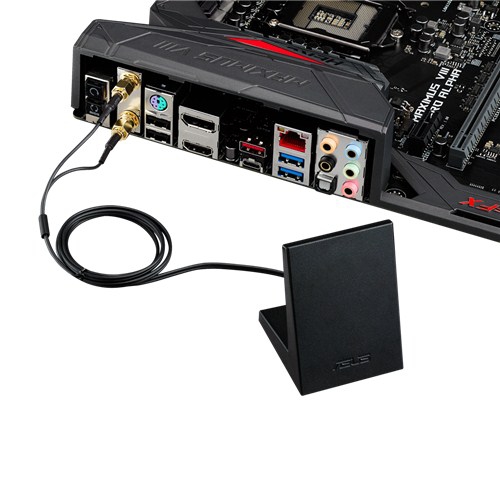

1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (40 cm)
1 x Extension Cable for RGB strips (80 cm)
BIOS機能 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能 WfM2.0, DMI3.0, WOL by PME, PXE
サポートDVDの内容 Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
ROG Keybot II
ROG Aura (Lighting Control)
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 *1 The U.2_2 shares bandwidth with SATA6G_1234.
*2 The M.2 x4 shares bandwidth with PCIEX4_3.
*3 This function will work depending on the CPU installed.
*4 These SATA ports are for data hard drives only. ATAPI devices are not supported.
*5 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
