A88X-PLUS/USB 3.1

A88X-PLUS/USB 3.1

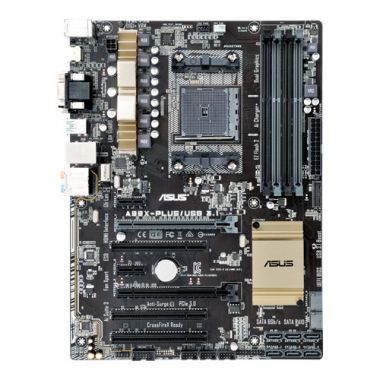

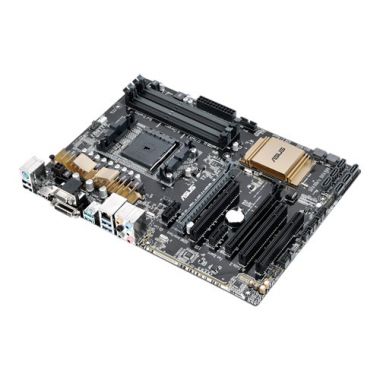

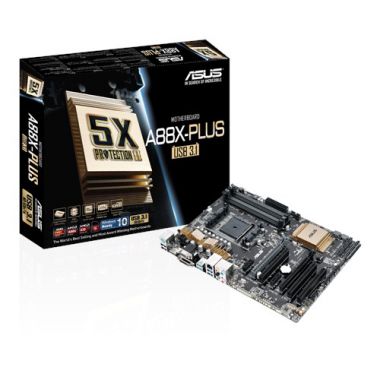

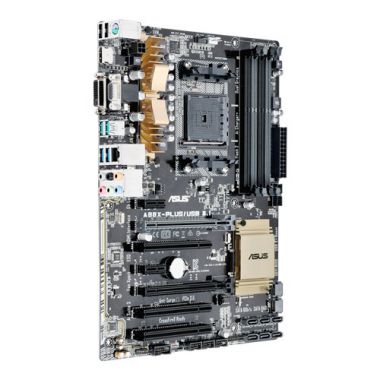

USB 3.1ポートを2ポート搭載するAMD Socket FM2+対応マザーボード

型番：ASU-A88X-PLUS/USB3.1

メーカー製品ページ

特徴

- Socket FM2+対応
- AMD A/AthlonシリーズAPU対応
- AMD A88Xチップセット搭載
- DDR3メモリ×4枚（最大64GB）対応
- PCIe 3.0 x16×1、PCIe 2.0 x16×1、PCIe 2.0 x1×2、PCI×3
- SATA 6Gb/s×8
- USB 3.1 Type-A×2、USB 3.0×4、USB 2.0×8
- 1000BASE-T×1
- デジタル電源回路の「DIGI+ VRM」を搭載
- 省電力を実現する電力制御チップの「EPU」を搭載
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert」機能を搭載
- USB 3.1の転送速度をブーストする「USB 3.1 Boost」機能を搭載
- ATXフォームファクター



製品仕様

対応CPU AMD Socket FM2+ Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
搭載チップセット AMD A88X (Bolton D4)
対応メモリ 4 x DIMM, Max. 64GB, DDR3- 2400(O.C.)/ 2250(O.C.)/ 2200(O.C.)/ 2133/ 1866/ 1600/ 1333 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
グラフィックス機能 Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support *2
マルチGPU対応 Supports AMD Quad-GPU CrossFireX Technology
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16 mode) *3
1 x PCIe 2.0 x16 (max at x4 mode) *4
2 x PCIe x1
3 x PCI
ストレージ機能 AMD A88X FCH(Bolton D4) chipset :
8 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 5, 10, JBOD
LAN機能 Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking
USB機能 AMD A88X FCH(Bolton D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A88X FCH(Bolton D4) chipset :
8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, teal blue)
独自機能 ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS EPU :
- EPU
ASUS Exclusive Features :
- TurboV EVO
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
動作対応OS Windows 10 64ビット
Windows 8.1 64ビット/32ビット
Windows 7 64ビット/32ビット
Windows XP 32ビット

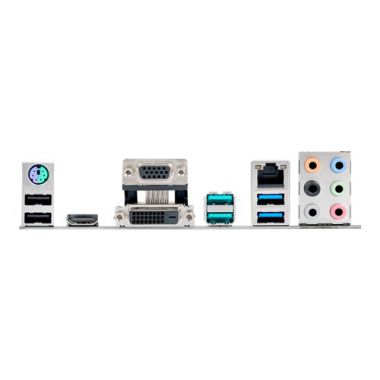

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)
2 x USB 3.0 (blue)
2 x USB 2.0
6 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

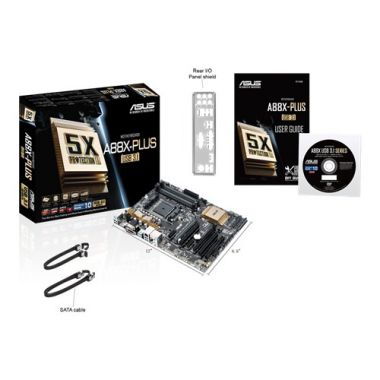

主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS機能 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
サポートDVDの内容 Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 8.9 inch ( 30.5 cm x 22.6 cm )
その他 *1: Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.
*3: Only FM2+ Processors can support PCIe3.0.
*4: The PCIe x16_2 slot shares bandwidth with USB 3.1_E12. The PCIe x16_2 is default set at x2 mode.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
