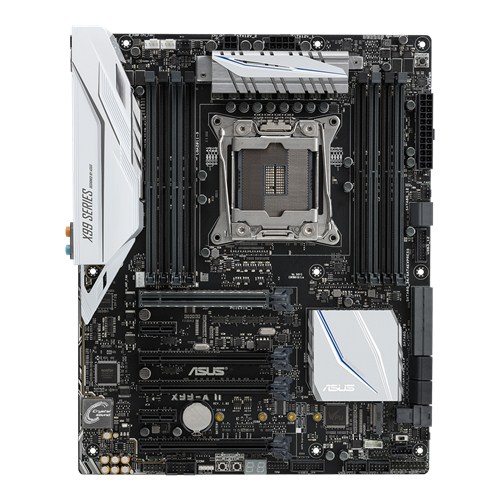

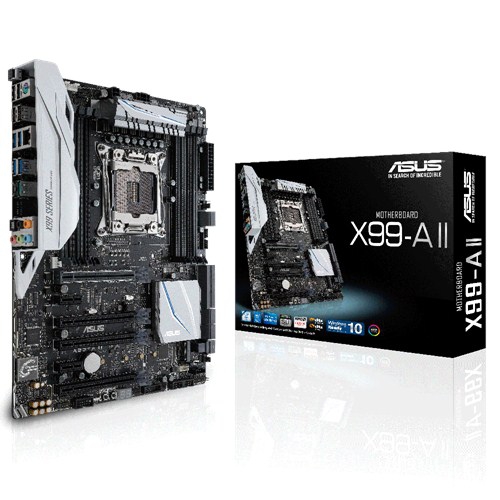

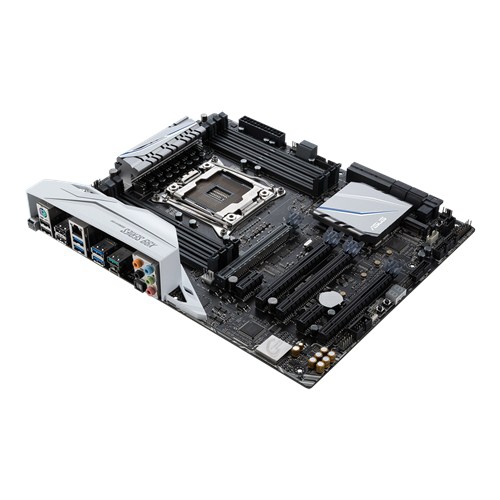

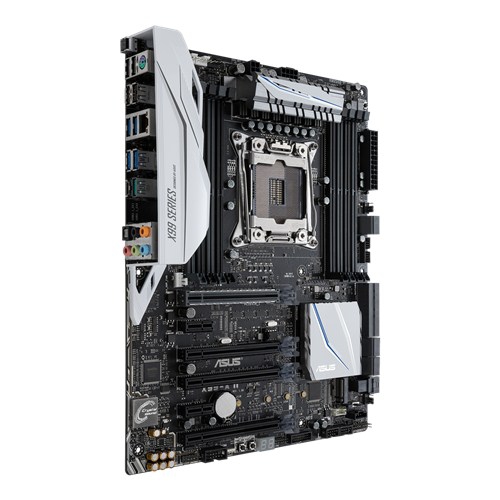

X99-A II

X99-A II

U.2など最新のインターフェースを搭載したIntel X99マザーボード

型番：ASU-X99-A/II

メーカー製品ページ

特徴

- LGA2011-v3対応
- Intel Core i7シリーズCPU対応
- Intel X99チップセット搭載
- DDR4メモリ×8枚（最大128GB）対応
- PCIe x16×4、PCIe x1×2
- SATA 6Gb/s×10、SATA Express×1、M.2×1、U.2×1
- USB 3.1 Type-A×1、USB 3.1 Type-C×1、USB 3.0×8、USB 2.0×8
- 1000BASE-T×1
- 安定性を高めたLGA2011-v3完全互換の独自ソケット「OC Socket」を搭載
- デジタル電源回路の「DIGI+ VRM」を搭載
- オーバークロック専用チップの「TPU」を搭載
- 省電力を実現する電力制御チップの「EPU」を搭載
- 業界最高水準の高性能ファンコントロール機能「Fan Xpert 4」を搭載
- LEDでマザーボードを鮮やかに光らせる「Aura」機能を搭載
- 重いカードも安心な高耐久PCI Expressスロット「SafeSlot」を搭載
- USB 3.1の速度を上げる「USB 3.1 Boost」機能を搭載
- ATXフォームファクター



製品仕様

対応CPU Intel Processors
Intel Core i7 X-Series Processors on LGA 2011-3 Socket
* The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology
搭載チップセット Intel X99
対応メモリ 8 x DIMM, Max. 128GB, DDR4- 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
マルチGPU対応 Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット 40-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16 or x16/x16, x8/x16/x8) *1
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8) *2
1 x PCIe 2.0 x16 (x4 mode) *3
2 x PCIe 2.0 x1 (x1 mode) *3
ストレージ機能 New Intel Core i7 X-Series Processors :
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)*4
1 x U.2 port, support PCIe 3.0 x4 NVM Express storage*4
Intel X99 chipset :
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
10 x SATA 6Gb/s port(s)*5, 2 ports from SATA Express
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*6
LAN機能 Intel I218V, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Feature :
- DTS Connect
- DTS Studio Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- Power pre-regulator: Reduces power input noise to ensure consistent performance
USB機能 Intel X99 chipset :
5 x USB 3.0/2.0 port(s) (1 at back panel, blue, 4 at mid-board)
Intel X99 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, blue, 4 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1/3.0/2.0 port(s) ( at back panel, teal blue, Type-A + Type-C)
ASMedia USB 3.0 controller :
3 x USB 3.0/2.0 port(s) ()
独自機能 5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS TPU :
- Auto Tuning
- GPU Boost
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Turbo LAN
- Crystal Sound 3
- EZ XMP ASUS Exclusive Features
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
AURA: RGB Lighting Control
Special Memory O.C. Design
Turbo App
動作対応OS Windows 10 64ビット
Windows 8.1
Windows 8
Windows 7

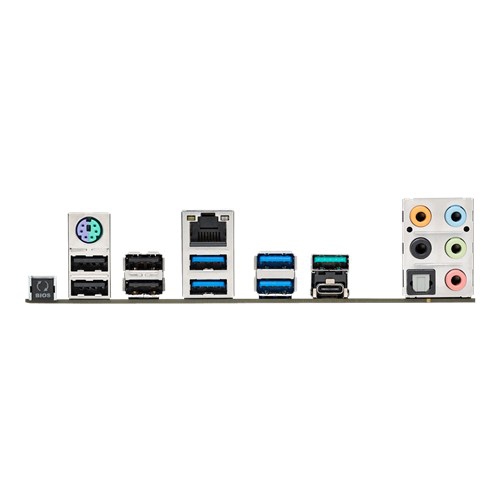

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 3.1 ()Type-A + Type-C
4 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
基板上インターフェース 1 x U.2 port
1 x AAFP connector
1 x RGB Header(s)
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan header (4-pin)

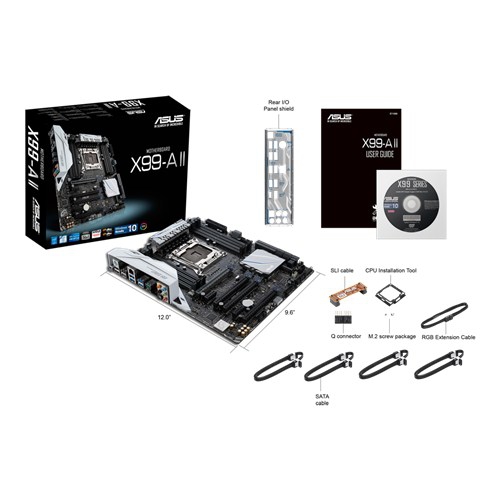

主な付属品 User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x Extension Cable for RGB strips (80 cm)
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 1* PCIe x16_1 and PCIe x16_4 slots share the same bandwidth. PCIe x16_4 slot support up to x8 mode.
2* When using a 28-lane CPU, the PCIe x16_3 slot support up to x8 mode.
3* The PCIe x16_2 shares bandwidth with USB 3.1 and PCIe x1_2 slot. By default, the PCIe x16_2 slot automatically runs at x1 mode.
4* M.2 shares bandwidth with U.2, only one device can be activated at a time.
5* Due to chipset behavior, The SATA6G_78, SATA6G_910 ports (black) do not support IRST including RAID configuration.
6* These functions will work depending on the CPU installed.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
