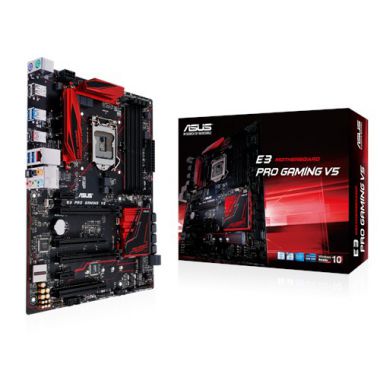

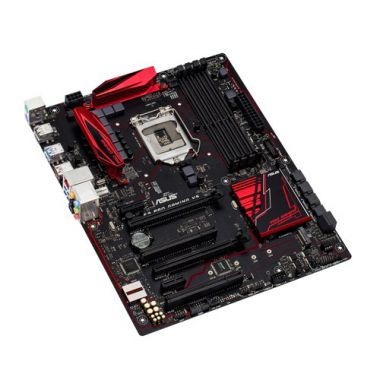

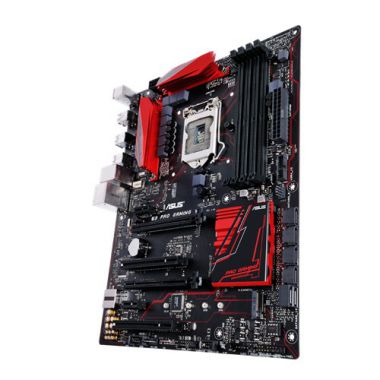

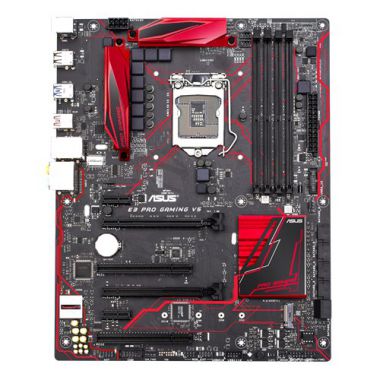

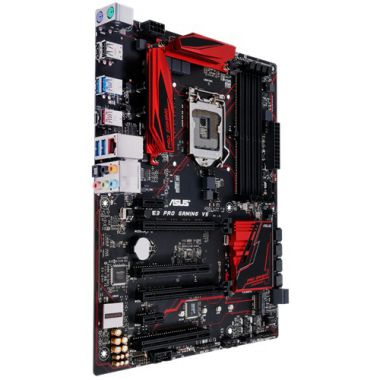

E3 PRO GAMING V5

E3 PRO GAMING V5

Xeon E3-1200 v5シリーズに対応するゲーム用Intel C232マザーボード

型番：ASU-E3/PRO/GAMING/V5

メーカー製品ページ

特徴

- LGA1151対応
- Intel Xeon E3-1200 v5、Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel C232チップセット搭載
- DDR4メモリ×4枚（最大64GB）対応
- PCIe 3.0 x16×2、PCIe 3.0 x1×2、PCI×2
- SATA 6Gb/s×6、M.2×1
- USB 3.1×2、USB 3.0×6、USB 2.0×6
- 1000BASE-T×1
- ゲーム用の「SupremeFX」オーディオ機能を搭載
- ネットワークゲームの通信優先度を高める「GameFirst IV」機能を搭載
- デジタル電源回路「DIGI+ VRM」
- 省電力を実現する電力制御チップ「EPU」
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert 3」
- USB 3.1をブーストする「USB 3.1 Boost」
- ATXフォームファクター



製品仕様

対応CPU Intel Socket 1151 for Xeon E3-1200 v5 and 6th genereation CoreTM, Pentium and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel C232
対応メモリ 4 x DIMM, Max. 64GB, DDR4- 2133 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
* Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
マルチGPU対応 Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16 mode, )
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
2 x PCIe 3.0/2.0 x1
2 x PCI
ストレージ機能 Intel C232 chipset :
1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports*3
LAN機能 Intel I219LM, 1000BASE-T/100BASE-TX/10BASE-T×1, GameFirst technology
Anti-surge LANGuard
オーディオ機能 SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II
USB機能 ASMedia USB 3.1 controller :
1 x USB 3.1 port(s) (Type-A)
ASMedia USB 3.1 controller :
1 x USB 3.1 port(s) (Type-C, Reversible)
Intel C232 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel C232 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
独自搭載機能 Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache
動作対応OS Windows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット *4

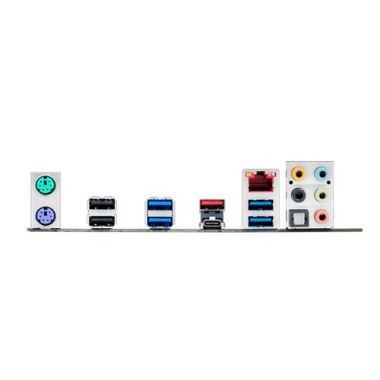

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x USB 3.1 (red)Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s)
主な付属品 User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容 Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 *1: When PCIE x16_2 is occupied by x4 or faster devices, PCIE x1_1 and PCIE x1_2 will be disabled.
*2: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
*3: Before creating RAID on Windows 7, we recommend that you install Windows 7 first via ASUS EZ Installer.
*4: Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
