5-Way Optimization by Dual Intelligent Processors 5 / ワンクリックでPCを自動カスタマイズ
M.2 & SATA Express / - PCの速度を向上する転送速度10Gb/sのストレージインターフェース
Crystal Sound 2オーディオ & デュアルIntel LAN / ゲームPCに最適
ASUS HomeCloud / PCのデータに外出先からアクセス
高い性能と耐久性を保証する5X PROTECTION / 1,000を超えるPCパーツとの互換性チェック、7,000時間を超える製品テスト
対応CPU | Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
搭載チップセット | Intel Z97 |
対応メモリ | 4 x DIMM, Max. 32GB, DDR3- 3200(O.C.)/3100(O.C.)/ 3000(O.C.)/2933(O.C.)/2800(O.C.)/ 2666(O.C.)/2600(O.C.)/2400(O.C.)/ 2200(O.C.)/2133(O.C.)/ 2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
グラフィックス機能 | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4960 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
マルチGPU対応 | Supports NVIDIA Quad-GPU SLI Technology Supports AMD 3-Way CrossFireX Technology |
拡張スロット | 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8) 1 x PCIe 2.0 x16 (x4 mode) *1 4 x PCIe 2.0 x1 *2 |
ストレージ機能 | Intel Z97 chipset : 1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*3 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *4 ASMedia PCIe SATA controller : *5 2 x SATA 6Gb/s port(s), black |
LAN機能 | Intel I218V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance |
オーディオ機能 | Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 112 dB SNR stereo playback output and 104 dB SNR recording input Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Top notch audio sensation delivers according to the audio configuration - EMI protection cover to prevent electrical noise to affect the amplifier quality |
USB機能 | Intel Z97 chipset : 6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board) Intel Z97 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) ASMedia USB 3.0 controller : 2 x USB port(s) (2 at back panel, blue) |
独自搭載機能 | 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. ASUS 5X Protection : - ASUS DIGI+ VRM - 12 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS TPU : - Auto Tuning - GPU Boost - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 12 Phase Power Design - Industry leading Digital 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - Remote GO! - AI Suite 3 - Ai Charger+ - USB Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2 ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Media Streamer Turbo App Fan Xpert 3 |
動作対応OS | Windows 8.1 Windows 8 Windows 7 |

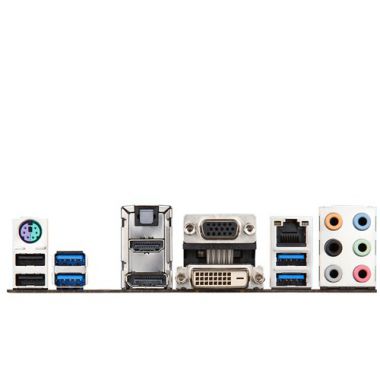

背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
基板上インターフェース | 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key, type 2260/2280 devices 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s) |

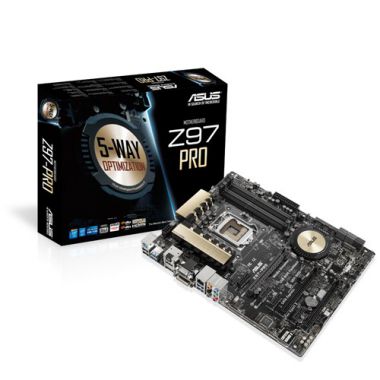

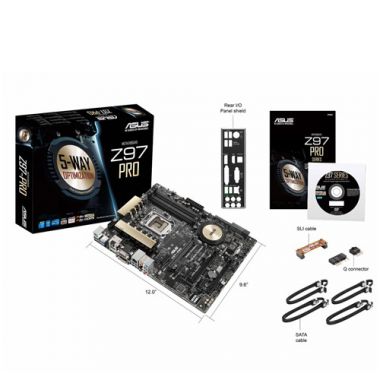

主な付属品 | User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) |
BIOS機能 | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information |
管理機能 | WfM 2.0, DMI 2.7, WOL by PME, PXE |
サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
フォームファクター(サイズW×D) | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
その他 | *1 : The PCIe x16_3 slot shares bandwidth with USB3_E12 and PCIe x1_4. The PCIe x16_3 is default at x1 mode. *2 : The PCIe x1_2 slot shares bandwidth with PCIe x1_3. The PCIe x1_2 is default disabled. *3 : M.2 Socket 3 shares bandwidth with SATAExpress_1 *4 : These functions will work depending on the CPU installed. *5 : These SATA ports are for data hard drivers only. ATAPI devices are not supported. |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
