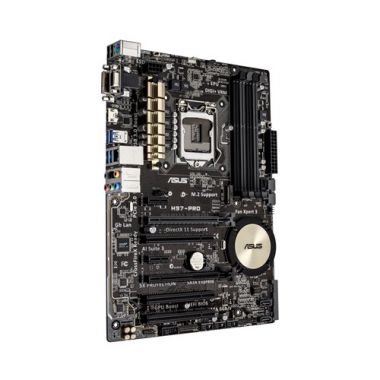

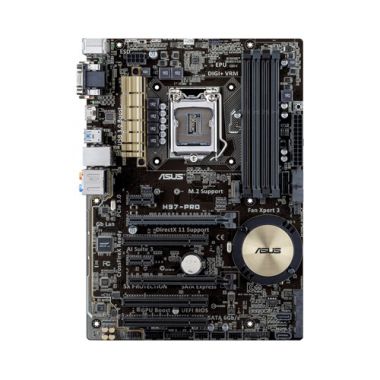

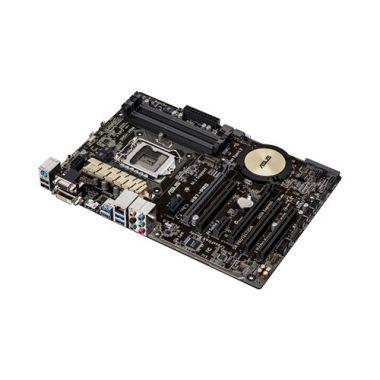

H97-PRO

H97-PRO

10Gb/sの帯域を持つ高速なM.2ポートとSATA Expressポート、高い性能と耐久性を保証する5X PROTECTIONなどに対応するH97 ATXマザーボード

型番：ASU-H97-PRO

メーカー製品ページ

特徴

Fan Xpert 3 / 高度な温度管理を行えるファンコントロール機能
高い性能と耐久性を保証する5X PROTECTION / 1,000を超えるPCパーツとの互換性チェック、7,000時間を超える製品テスト
ゲームPCに最適 / 徹底的なノイズ対策を行ったオーディオ機能、CPU負荷が少ないIntel LAN
PCの速度を向上する転送速度10Gb/sのM.2ポートとSATA Expressポート
初心者向けの自動オーバークロック機能を備える使いやすいUEFI BIOS
ASUS HomeCloud - さまざまなデータを共有できるマルチメディアハブ機能



製品仕様

対応CPU Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel H97
対応メモリ 4 x DIMM, Max. 32GB, DDR3- 1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
グラフィックス機能 Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
マルチGPU対応 Supports AMD Quad-GPU CrossFireX Technology
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe x1
3 x PCI
ストレージ機能 Intel H97 chipset :
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *3
LAN機能 Intel I218V, 1000BASE-T/100BASE-TX/10BASE-T×1, featuring Turbo LAN
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
オーディオ機能 Realtek ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB機能 Intel H97 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel H97 chipset :
8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
独自搭載機能 ASUS 5X Protection :
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- MemOK!
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-Connector
動作対応OS Windows 8.1
Windows 8
Windows 7

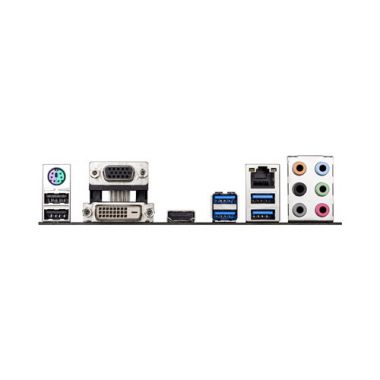

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
6 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)

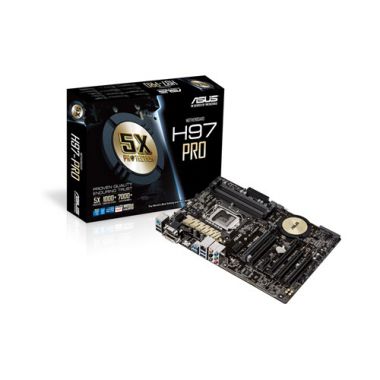

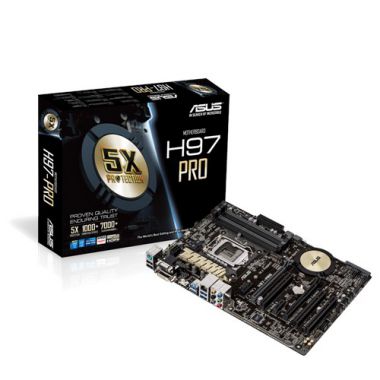

主な付属品 User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 2.7, WOL by PME, PXE
サポートDVDの内容 Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
Management Solution Intel SBA support
その他 *1: The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
*2: M.2 Socket 3 shares bandwidth with SATA Express port.
*3: These functions will work depending on the CPU installed.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
