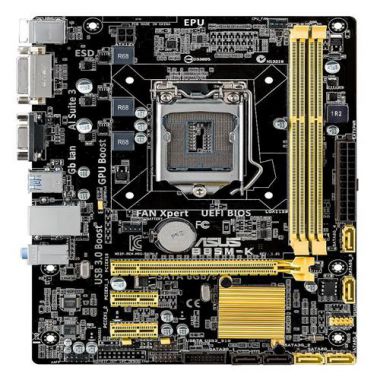

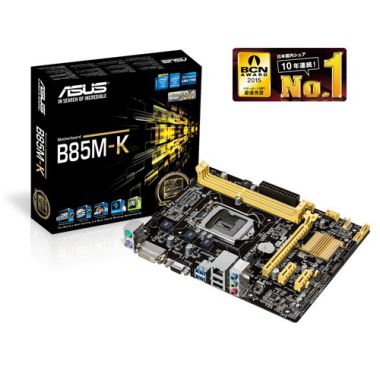

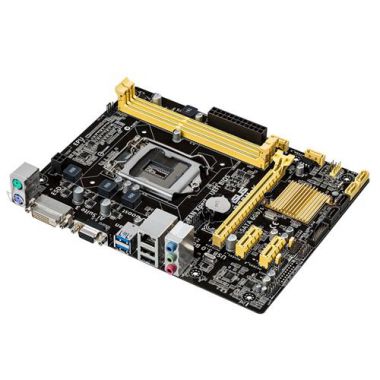

B85M-K

B85M-K

質実剛健なエントリーモデル

型番：ASU-B85M-K

メーカー製品ページ

特徴

- Intel B85
- DDR3メモリ×2（最大16GB）
- PCIe 3.0 x16×1、PCIe 2.0 x1×2
- DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×4、SATA 3Gb/s×2
- 1000BASE-T×1
- USB 3.0×4、USB 2.0×6
- EPU、Fan Xpert



製品仕様

対応CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel B85
対応メモリ 2 x DIMM, Max. 16GB, DDR3- 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
グラフィックス機能 Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
2 x PCIe 2.0 x1
ストレージ機能 Intel B85 chipset :
4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology *1
LAN機能 Realtek 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
USB機能 Intel B85 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel B85 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
独自搭載機能 ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
動作対応OS Windows 8.1
Windows 8
Windows 7

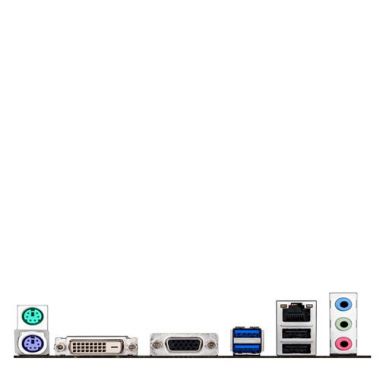

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)
基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS機能 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 2.0, WOL by PME, PXE
サポートDVDの内容 Drivers
ASUS Utilities
EZ Update
Anti-Virus Software (OEM Version)
フォームファクター（サイズW×D） uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
その他 *1:These functions will work depending on the CPU installed.
*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
