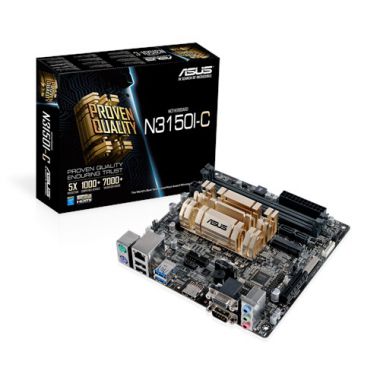

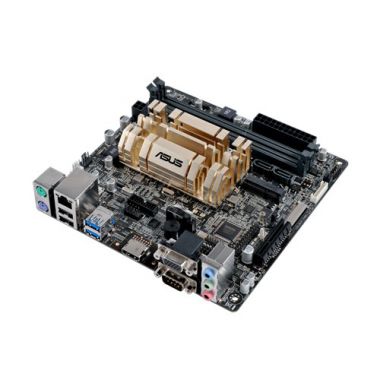

Celeron N3150 CPUをオンボード搭載するファンレス仕様のMini-ITXマザーボード

型番：ASU-N3150I-C

メーカー製品ページ

特徴

- Intel Celeron N3150 CPUをオンボード搭載
- DDR3メモリ×2（最大8GB）対応
- PCIe 2.0 x4×1
- HDMI×1、D-Sub 15ピン×1、LVDS×1
- SATA 6Gb/s×2
- USB 3.0×4、USB 2.0×4
- Fan Xpert搭載
- Mini-ITXフォームファクター



製品仕様

CPU Intel Celeron Quad-Core N3150 SoC onboard Processors
メモリ 2 x DIMM, Max. 8GB, DDR3- 1600/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
グラフィックス機能 Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
拡張スロット 1 x PCIe 2.0 x4 (x1 mode)
ストレージ機能 Built-in Controller :
2 x SATA 6Gb/s port(s), dark brown,
Supports Intel Smart Connect Technology
LAN機能 Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能 Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *1
USB Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
GL852G USB Hub :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
Special Features ASUS 5X Protection :
- ASUS LANGuard - Advanced LAN protection
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS Exclusive Features :
- AI Suite 3
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
Operating System Support Windows 8.1 64ビット
Windows 7 64ビット

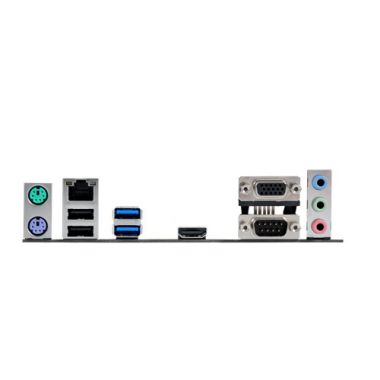

背面インターフェース 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)

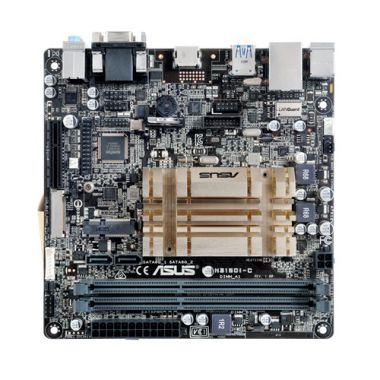

基板上インターフェース 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x LVDS connector(s)
1 x Buzzer

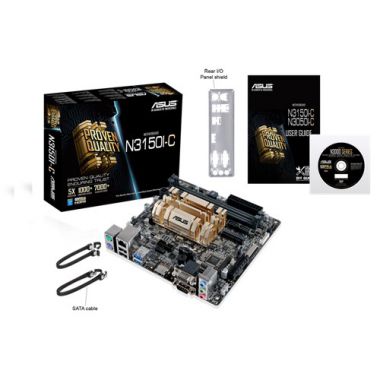

主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
サポートDVD Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D） Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他 *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2:Please follow SOP in manual when installing Windows7 64-bit and USB3.0 drivers.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
