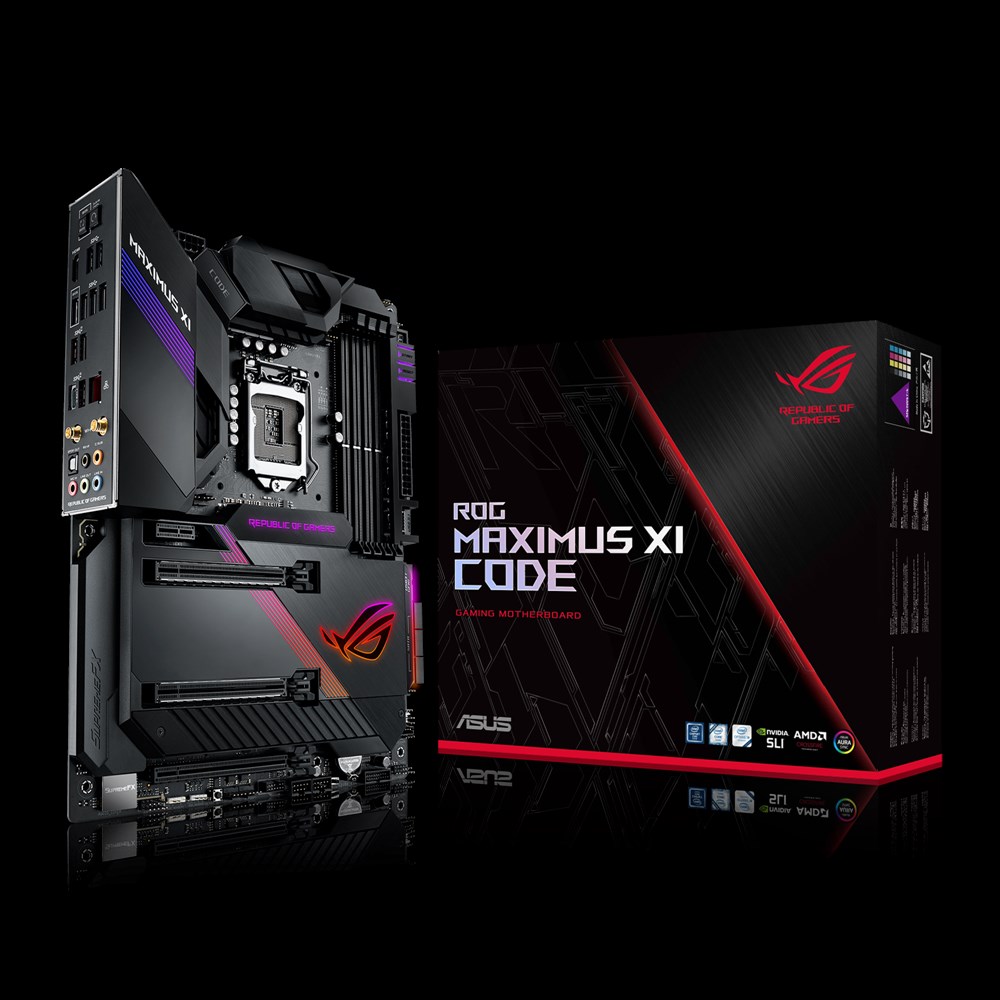

ROG MAXIMUS XI CODE

ROG MAXIMUS XI CODE

優れた拡張性を備え独創的なゲーミングマシン作りに適したZ390搭載ATXマザーボード

  • デスクトップ向け第8世代/第9世代Intel® Core™プロセッサ用LGA1151ソケット搭載
  • ROGエコシステム : ASUS独自のAura Sync RGBライティング、ノーマル/アドレサブル両対応のRGBヘッダーを搭載
  • 専用の水冷ヘッダーゾーン、M.2ヒートシンク、各種ファン制御による完璧な冷却性能を実現
  • ゲーミングコネクティビティ : Intel Gigabitイーサネット、LANGuard、2x2 802.11ac Wi-Fi、デュアルM.2、USB 3.1 Gen 2 Type-A/Type-C™コネクター
  • 簡単に自動化されたワンクリックオーバークロック、BIOSによる高度な制御で広範なオーバークロックオプションを提供
  • ゲーミングオーディオ : SupremeFXとSonic Studio IIIの組合せにより、シーンに奥行きをもたせ、没入感を向上します。
  • 優れた耐久性 : ROGアーマー、プリマウントI/Oシールドを搭載し、各部にプレミアムなコンポーネントを採用

製品仕様

対応CPU Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Build in Intel Z390
メインメモリ 4 x DIMM, Max. 64GB, DDR4- 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
グラフィックス機能 Integrated Graphics Processor- Intel UHD Graphics support
VGA output support : HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
マルチGPU対応 Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors
2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
Intel Z390 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) *
1 x PCIe 3.0 x16
ストレージ機能 Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel Optane Memory Ready
LAN機能 Intel I219V
Anti-surge LANGuard
ROG GameFirst V Technology
無線機能 Wi-Fi IEEE802.11ac/n/g/b
Intel Wireless-AC 9560
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth機能 Bluetooth 5.0
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback *3
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB機能 Intel Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel Z390 Chipset :
4 x USB 3.1 Gen 2 port(s)
Intel Z390 Chipset :
8 x USB 3.1 Gen 1 port(s)
Intel Z390 Chipset :
4 x USB 2.0 port(s)
ASMedia USB 3.1 Gen 1 controller :
2 x USB 3.1 Gen 1 port(s)
ROGシリーズ独自搭載機能 ROG RGB Armor
ReTry Button
Start Button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- OptiMOS Power Stage
- 10K Black Metallic Capacitors
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
独自機能 5-Way Optimization by Dual Intelligent Processors 5
- 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK! II
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
- Reset Button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
背面インターフェース 1 x HDMI
4 x USB 3.1 Gen 2
6 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Anti-surge LAN (RJ45) port
基板上インターフェース 2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Start button
1 x Reset button
1 x Q-Code
主な付属品 User's manual
1 x ROG logo plate sticker
1 x 2-Way SLI bridge(s)
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG coaster(s)
1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
1 x ROG Thank you card
BIOS機能 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
管理機能 WOL , PXE
OS Windows 10 64-bit
フォームファクター(サイズW×D) ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 * The PCIe x 16_3 slot shares bandwidth with SATA6G_56 ports. PCIe x 16_3 slot is set at x2 mode by default.
*2 When M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disabled.
When an 22110 M.2 SSD is installed in M.2_1, M.2_2 will be limited to an 2242 M.2 SSD.
*3 Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
