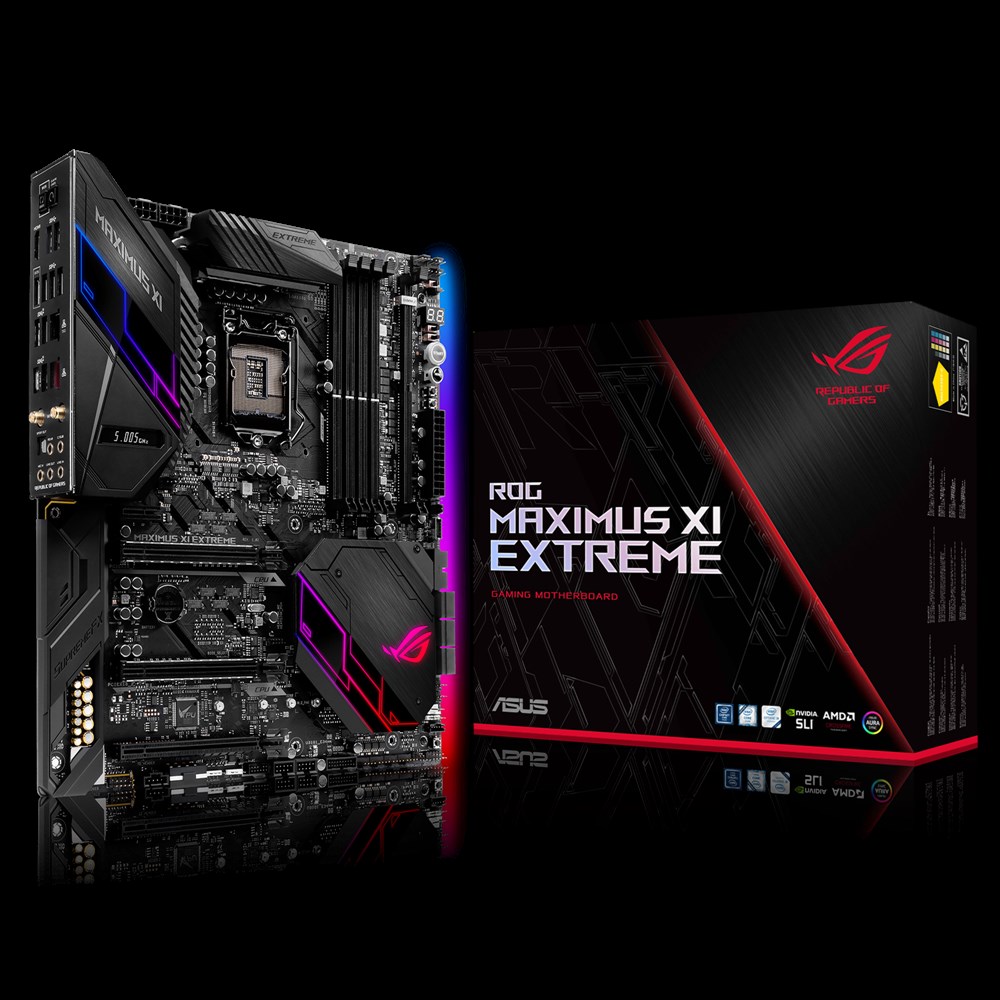

ROG MAXIMUS XI EXTREME

ROG MAXIMUS XI EXTREME

ネットワークの最適化、4基のM.2スロットによる超高速ストレージなど
究極のゲーミング仕様を備えたZ390搭載EATXマザーボード

  • LGA1151ソケット: 第9世代/第8世代インテル® Core™デスクトップ・プロセッサー対応
  • シンクロRGBライティングテクノロジー：Aura Syncに対応した幅広いPCギアで動作し、アドレサブルライトストリップとPhillips Hueに対応
  • 完璧な冷却性能: 専用の水冷ゾーン、包括的なファンコントロール、M.2ヒートシンクを搭載
  • ROG DIMM.2: 最高の冷却性能とパフォーマンスを実現するヒートシンクを搭載した縦型デュアルM.2拡張カード
  • 5-Way Optimization: PCビルドに合わせてカスタマイズされたAIオーバークロックと冷却の設定を提供し、自動的にシステム全体のチューニングを施します。
  • ゲーミング・コネクティビティ: インテル製ギガビット・イーサネット、オンボード5Gbpsイーサネット、4基のM.2、USB 3.1 Gen 2、CNVi 2x2 802.11ac、MU-MIMO対応のインテル製内蔵型Wi-Fiによって、超高速のデータ転送を実現
  • ゲーミングオーディオ: SupremeFXとSonic Studio IIIの組合せにより、シーンに奥行きをもたせ、没入感を向上します。
  • 最高の耐久性: ASUS SafeSlot, プリマウントI/Oシールドを搭載し、各部にプレミアムコンポーネントの採用で最大限の耐久性を実現

型番：ROG MAXIMUS XI EXTREME

JAN：0192876122860

メーカー製品ページ

主な仕様

対応CPU Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel Z390
メインメモリ 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
グラフィックス機能 Integrated Graphics Processor- Intel UHD Graphics support
VGA output support : HDMI port
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
マルチGPU対応 Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
Intel Z390 Chipset
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1
ストレージ機能 Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors :
1 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)*2
Intel Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 3Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
LAN機能 Aquantia AQC111C 5G LAN
Intel I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology
無線機能 Intel Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/ HT40/ HT80/ HT160
Bluetooth機能 Bluetooth 5.0
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB機能 Intel Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel Z390 Chipset :
4 x USB 3.1 Gen 2 port(s) (4 at back panel, )
Intel Z390 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel Z390 Chipset :
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia USB 3.1 Gen 1 controller :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, )
ROGシリーズ独自搭載機能 ReTry Button
Start Button
Reset Button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- OptiMOS Power Stage
- 10K Black Metallic Capacitors
Mem TweakIt
Extreme Tweaker
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
独自機能 ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK! II
- AI Suite 3
- Ai Charger
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
MemOK! II
OptiMem II
背面インターフェース 1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 (red) (1 x Type-C+3 x Type-A)
6 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
5 x LED-illuminated audio jacks
1 x AQC-111C 5G LAN port
基板上インターフェース 1 x W_PUMP+ 1
1 x W_PUMP+ 2
1 x WB_SENSOR
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x RSVD Switch
8 x Radiator Fan Headers
主な付属品 User's manual
1 x ROG logo plate sticker
4 x SATA 6Gb/s cable(s)
3 x M.2 Screw Package
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card (3 x 4-pin fan out)
1 x Fan Extension card screw pack
1 x Fan Extension card cable
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x USB drive with utilities and drivers
1 x ROG coaster(s)
2 x ROG weave SATA 6G cable
1 x ROG DIMM.2 with heatsink
1 x M.2 Pad for ROG DIMM.2
BIOS機能 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
管理機能 WOL, PXE
OS Windows 10 64-bit
その他 *1 When SATA56 is enabled, PCIE x 16_3 will run at x2 mode.
*2 The DIMM.2 Slots (M.2_1/2) are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots.
*3 When M.2_1 socket 3 is operating in SATA mode, SATA port 2 will be disabled.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
