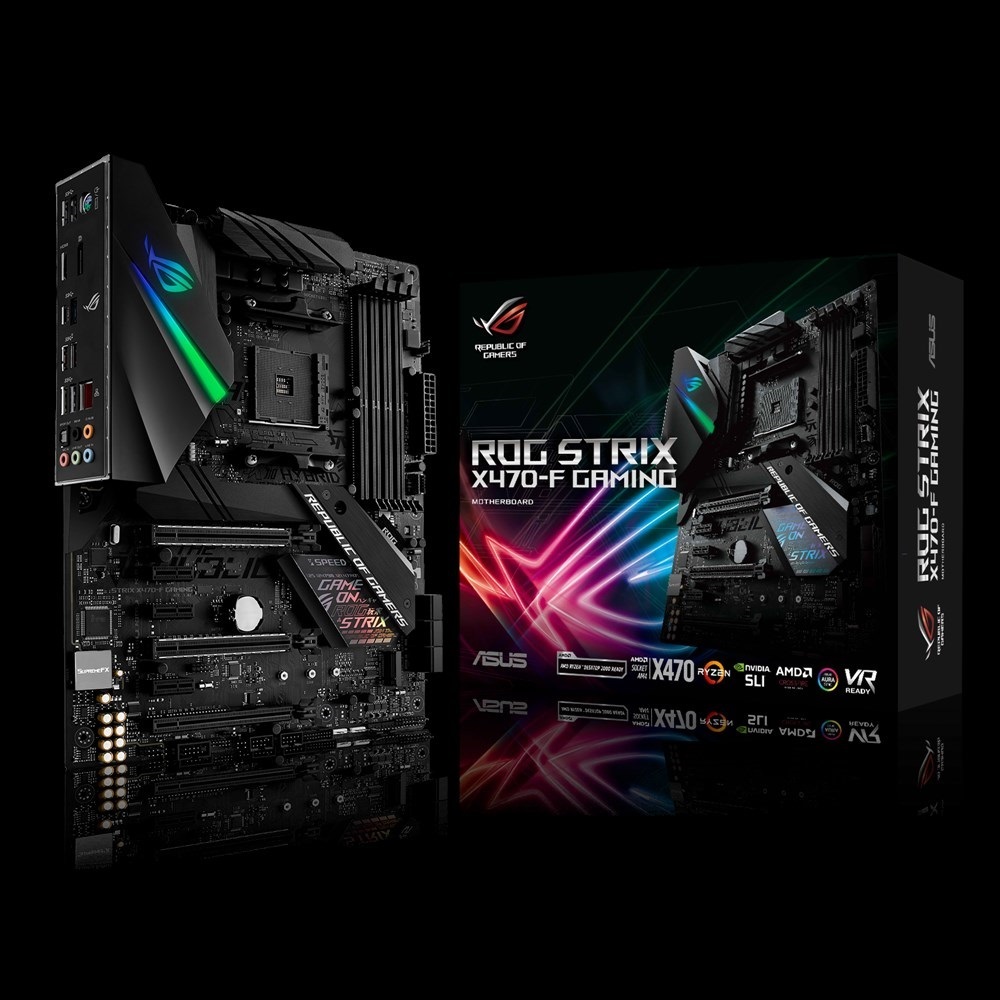

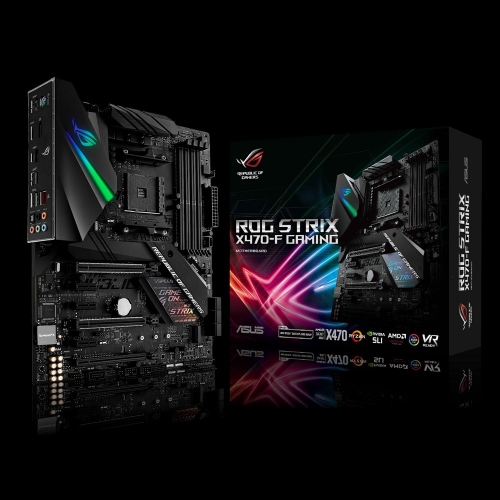

ROG STRIX X470-F GAMING

ROG STRIX X470-F GAMING

第2世代AMD Ryzen™プロセッサに完全対応し、Philips Hueとの連携でゲーミングルームの構築も可能なX470搭載ATXマザーボード

  • AMD Ryzen™プロセッサ用AM4ソケット搭載
  • シンクロRGBライティングテクノロジーはAura Syncに対応した幅広いPCギアで動作し、アドレサブルライトストリップとPhillips Hueに対応
  • オンボードM.2ヒートシンクでM.2ドライブを冷却し、パフォーマンスと安定性を向上
  • ゲーミングコネクティビティ: Intel Gigabitイーサネット、LANGuard、デュアルM.2、USB 3.1 Gen 2
  • 5-Way Optimization: PCビルドに合わせてカスタマイズされたオーバークロックと冷却の設定を提供し、自動的にシステム全体のチューニングを施します。
  • ゲーミングオーディオ: 「SupremeFX S1220A」と「Sonic Studio III」の組み合わせで風景を描くような奥行きのあるサウンドを実現し、アクションへの没入感を向上
  • ゲーマーズガーディアン: プレマウンテッド I/O シールド、ASUS Safeslot、最高の耐久性を実現するプレミアムコンポーネントを採用

型番：ROG STRIX X470-F GAMING

JAN：889349939789

メーカー製品ページ

主な仕様

対応CPU AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
搭載チップセット AMD X470
メインメモリ AMD Ryzen 2nd Generation Processors
4 x DIMM, Max. 64GB, DDR4- 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Un-buffered Memory
デュアルチャンネル Memory Architecture
マルチGPU対応 Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
拡張スロット AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X470 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *
3 x PCIe 2.0 x1
ストレージ機能 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
6 x SATA 6Gb/s port(s),
LAN機能 Intel I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1
Anti-surge LANGuard
ROG GameFirst Technology
オーディオ機能 SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB機能 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X470 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X470 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
AMD X470 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)
ROGシリーズ独自搭載機能 ROG RAMCache II
ROG CPU-Z
Overwolf
GameFirst IV
独自機能 5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting

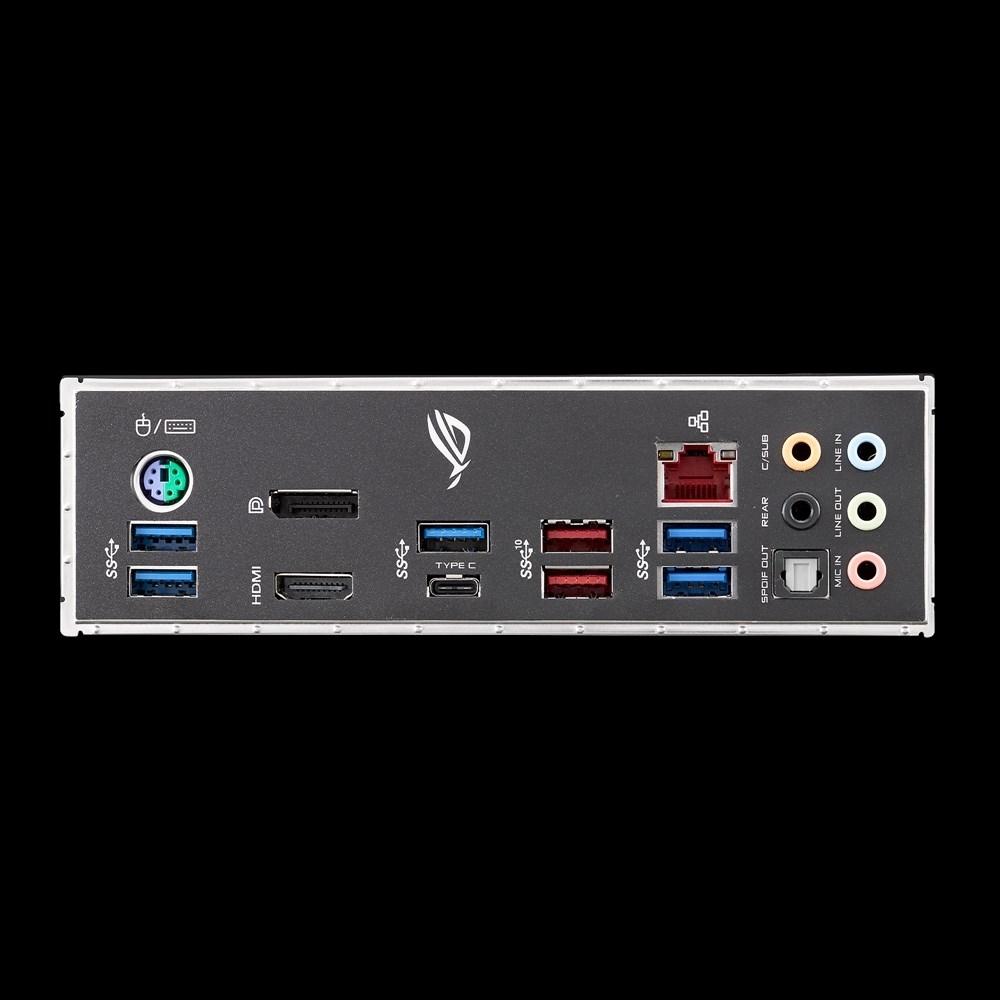

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
2 x USB 3.1 Gen 2 Type-A,
6 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port

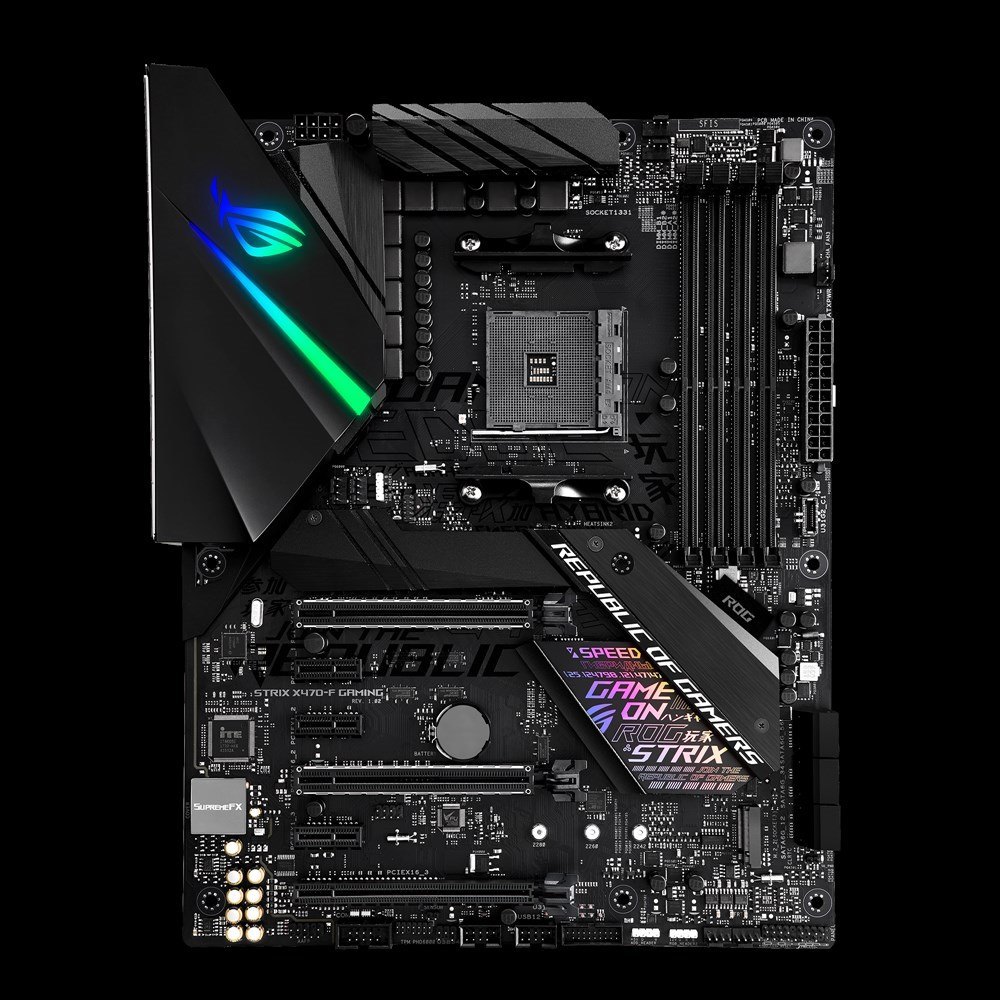

基板上インターフェース 1 x Aura Addressable Strip Header(s)
2 x RGB Header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support
1 x M.2 Socket 3 for M Key, type 2242/ 2260/ 2280 devices
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x USB 3.1 Gen 2 front panel connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

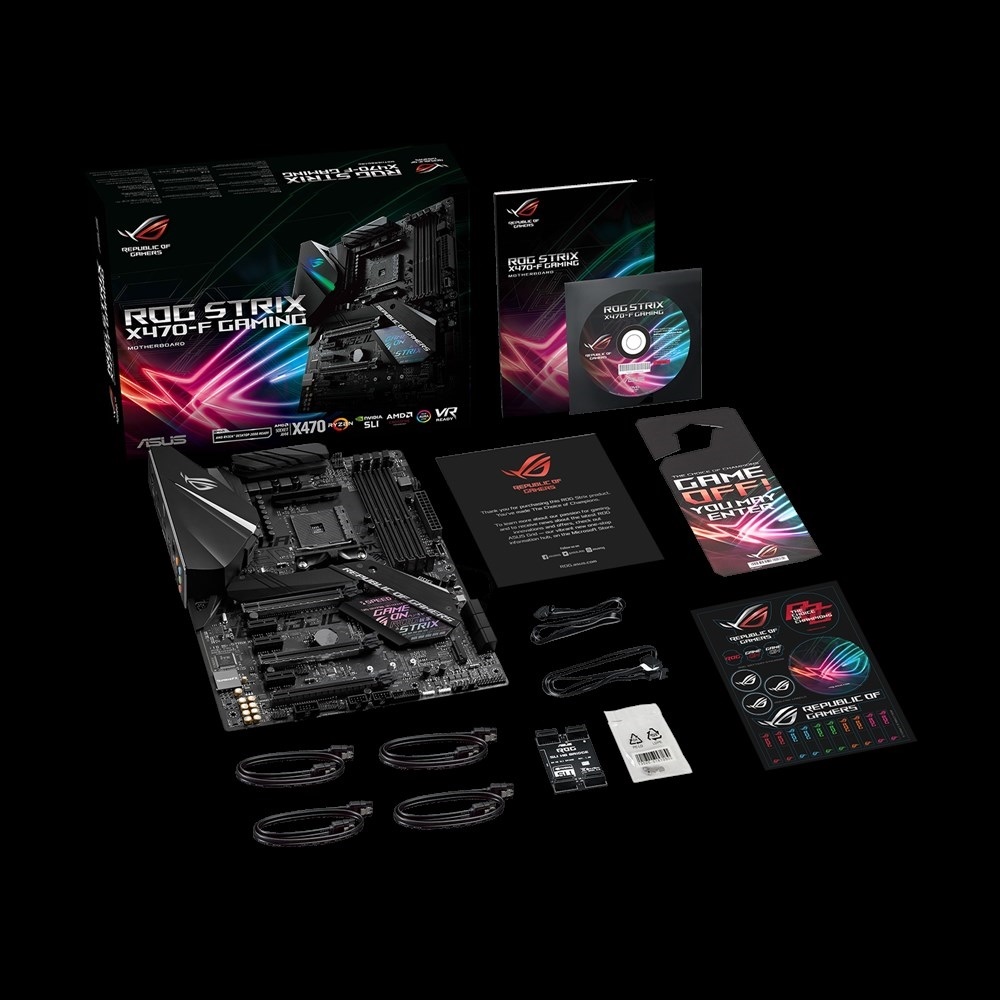

主な付属品 User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
BIOS機能 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search, and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能 WOL, WOR, PXE
サポートDVDの内容 Drivers
ASUS Utilities
Anti-virus software (OEM version)
OS Windows 10 64-bit
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 *1 PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
*2 M.2_2 socket shares PCIe clock with PCIeX1_1, when PCIeX1_1 or PCIeX1_3 are occupied, M.2_2 only can support SATA mode.
*3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
