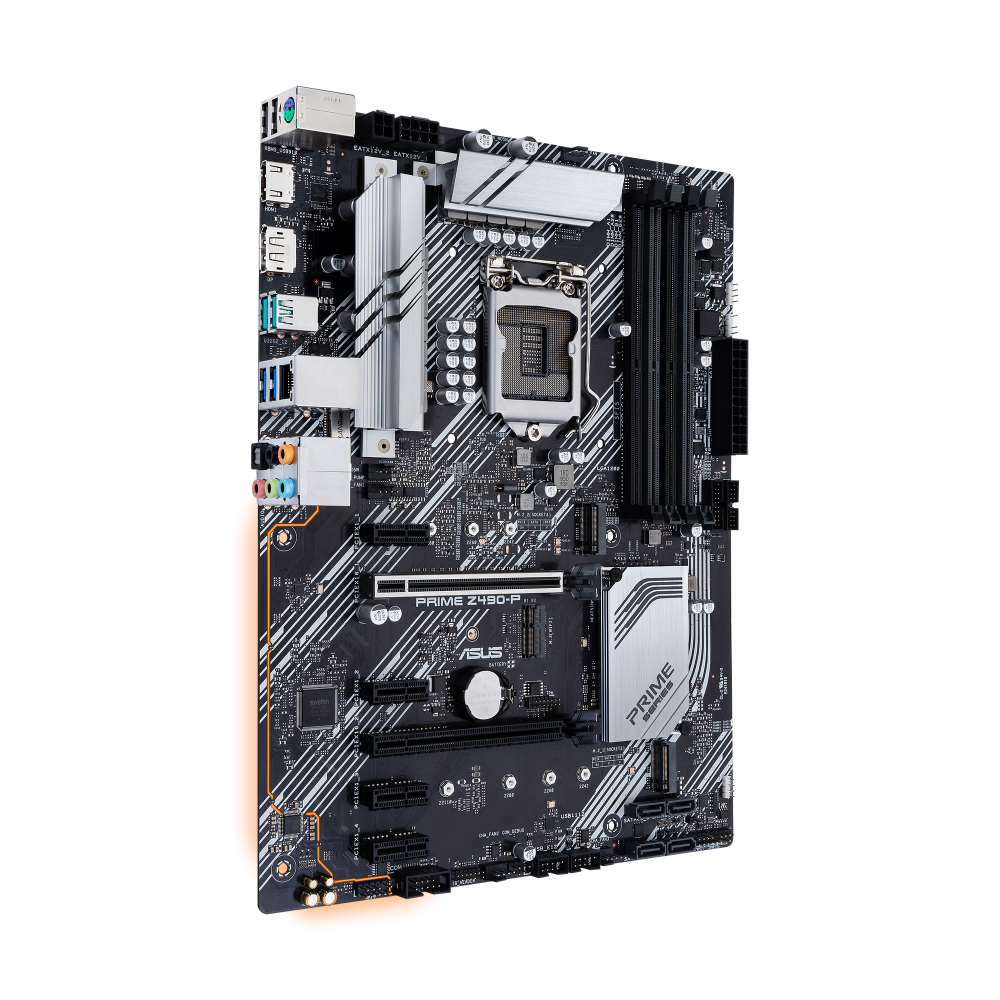

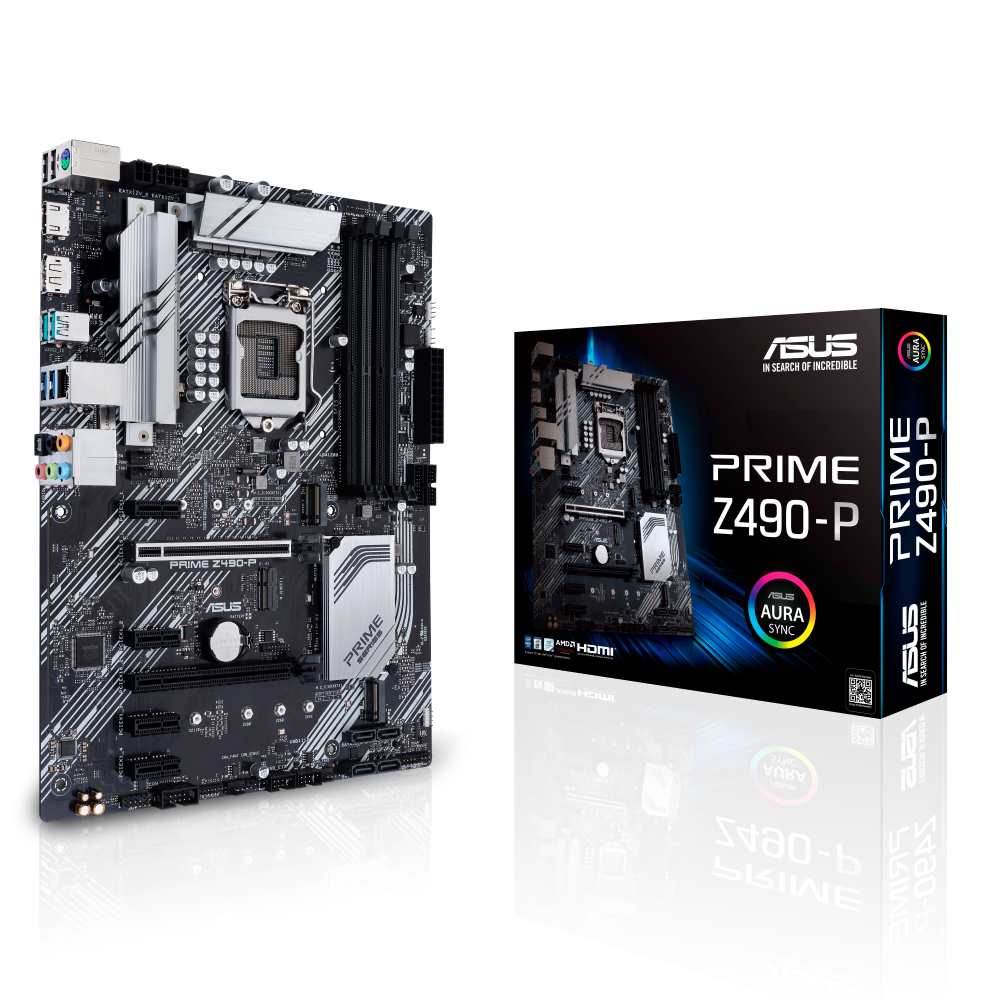

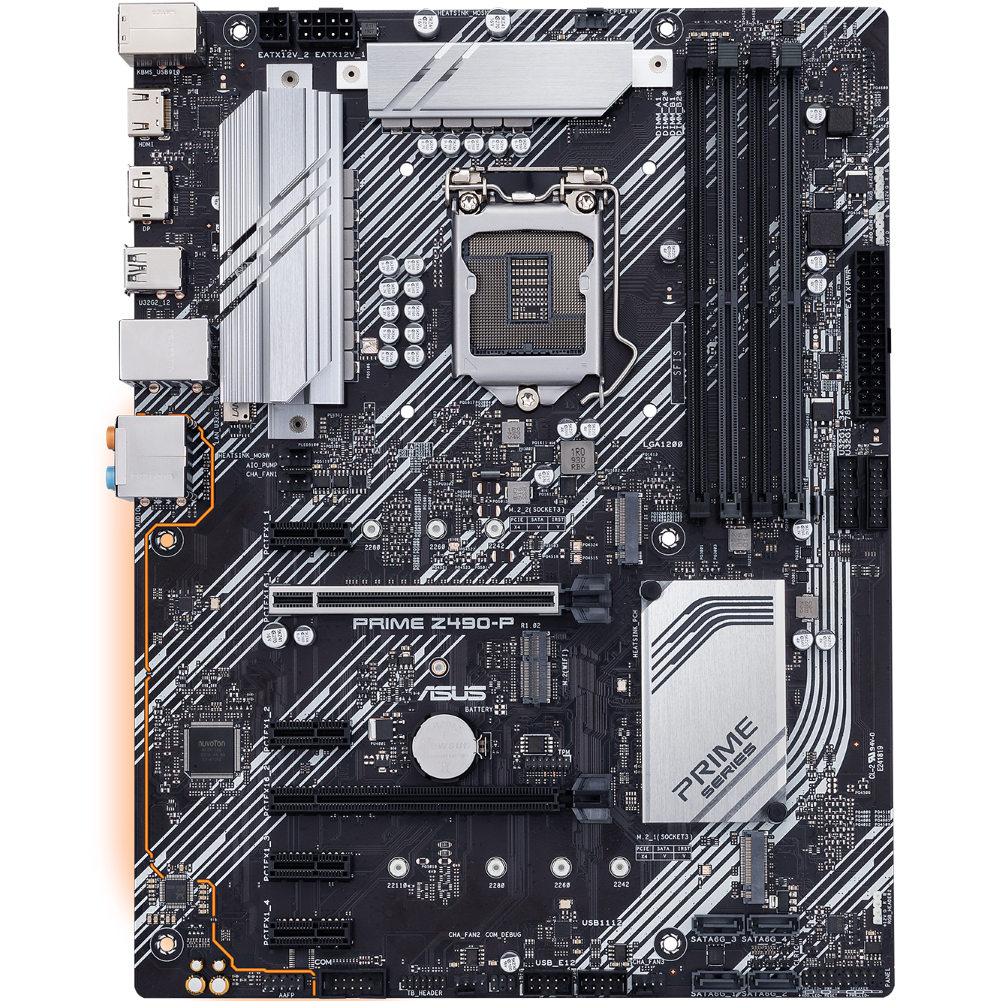

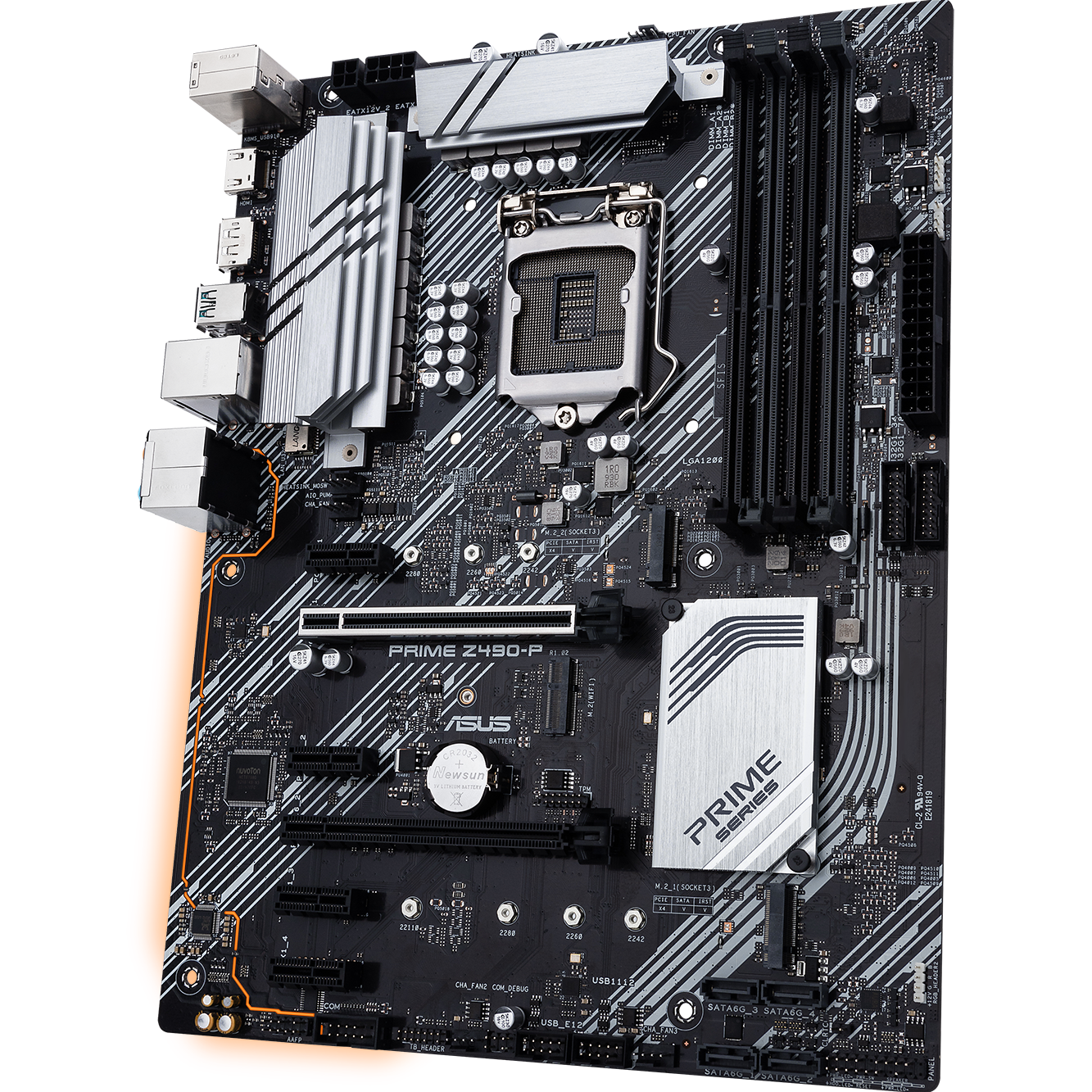

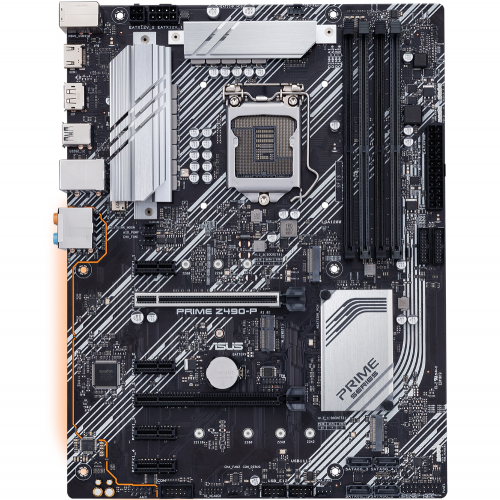

PRIME Z490-P

PRIME Z490-P

Intel Z490チップセット搭載・ATXマザーボード
リーズナブルな価格のエントリーモデル

・Intel Z490チップセット搭載
・第10世代Intel Coreプロセッサー対応
・対応ソケット：LGA 1200
・メモリースロット：DDR4-4000+(OC)×4（最大128GB）
・ストレージ：SATA 3.0 (6Gb/s)×5、M.2×2
・拡張スロット：PCIe 3.0 x16 (x16 mode) ×1、PCIe 3.0 x16 (x4 mode)×1、PCIe 3.0 x1×4
・LAN：Realtek RTL8111H
・無線機能：M.2 slot only (Key E) (Support CNVI & PCIe interface)*
・映像出力：DisplayPort 1.2×1、HDMI 1.4b×1、DVI-D×1
・オーディオ：Realtek ALC887
・フォームファクター：ATX
・製品寸法：305×234mm

*Wi-Fi module is sold separately.

型番：PRIME Z490-P

JAN：0192876666043

メーカー製品ページ


ASUS Primeシリーズは、Intel® Core™第10世代プロセッサーの可能性を最大限に引き出すように専門的に設計されています。堅牢な電力設計、包括的な冷却ソリューション、インテリジェントなチューニングオプションを誇るPrime Z490シリーズマザーボードは、日常的なユーザーとDIY PCビルダーに、付属のソフトウェアとハードウェアからさまざまなパフォーマンスチューニングオプションを提供します。






  • 対応CPU
    Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • 搭載チップセット
    Intel® Z490
  • メインメモリ
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • グラフィックス機能
    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • マルチGPU対応
    Supports AMD 2-Way CrossFireX Technology
  • 拡張スロット
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode) *1
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    4 x PCIe 3.0 x1
  • ストレージ機能
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    4 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN機能
    Realtek® RTL8111H
  • 無線機能
    M.2 slot only (Key E) (Support CNVI & PCIe interface)*
    *Wi-Fi module is sold separately.
  • オーディオ機能
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - LED-illuminated design
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
  • USB機能
    Rear USB Port ( Total 6 )
    2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 8 )
    4 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Sync
    AI Suite 3
    - Performance And Power Saving Utility
    EPU
    Digi+ VRM
    Fan Xpert 4
    - EZ update
    AI Charger
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS 5X PROTECTION III
    - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
    - ASUS LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot Core+
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    ASUS EZ DIY
    - Procool
    AURA Sync
    - Standard RGB headers
    - Addressable Gen 2 RGB header

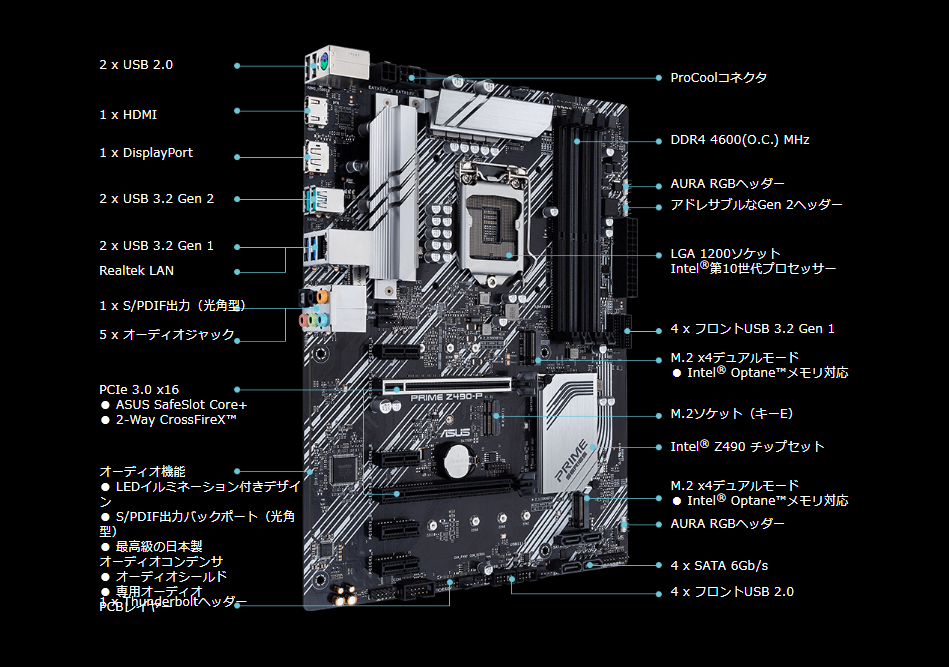

  • 背面インターフェース
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.2 Gen 2 Type-A
    2 x USB 3.2 Gen 1 Type-A
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • 基板上インターフェース
    1 x CPU Fan connector(s)
    3 x Chassis Fan connector(s)
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 with E key for Wi-Fi module
    1 x SPI TPM header
    4 x SATA 6Gb/s connector(s)
    1 x AIO_PUMP connector
    1 x Thunderbolt header(s)
    1 x 4-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
  • 主な付属品
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x M.2 SSD screw package(s)
    1 xM.2 Key E screw package(s)
  • BIOS機能
    128 Mb Flash ROM, UEFI AMI BIOS
  • 管理機能
    WOL by PME, PXE
  • OS
    Windows® 10 64-bit
  • フォームファクター（サイズW×D）
    ATX Form Factor
    12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
  • その他
    *1 Support PCIe bifurcation for RAID on CPU function.
    *2 When a device in SATA mode is installed on the M.2_1 slot, SATA6G_2 port cannot be used.
    *3 The USB_E1 port, USB_E2 port, ADD_GEN 2 header and the two RGB headers share the bandwidth. But the ADD_GEN 2 header and the two RGB headers will affect transfer rate only when you adjust their lighting effect.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
