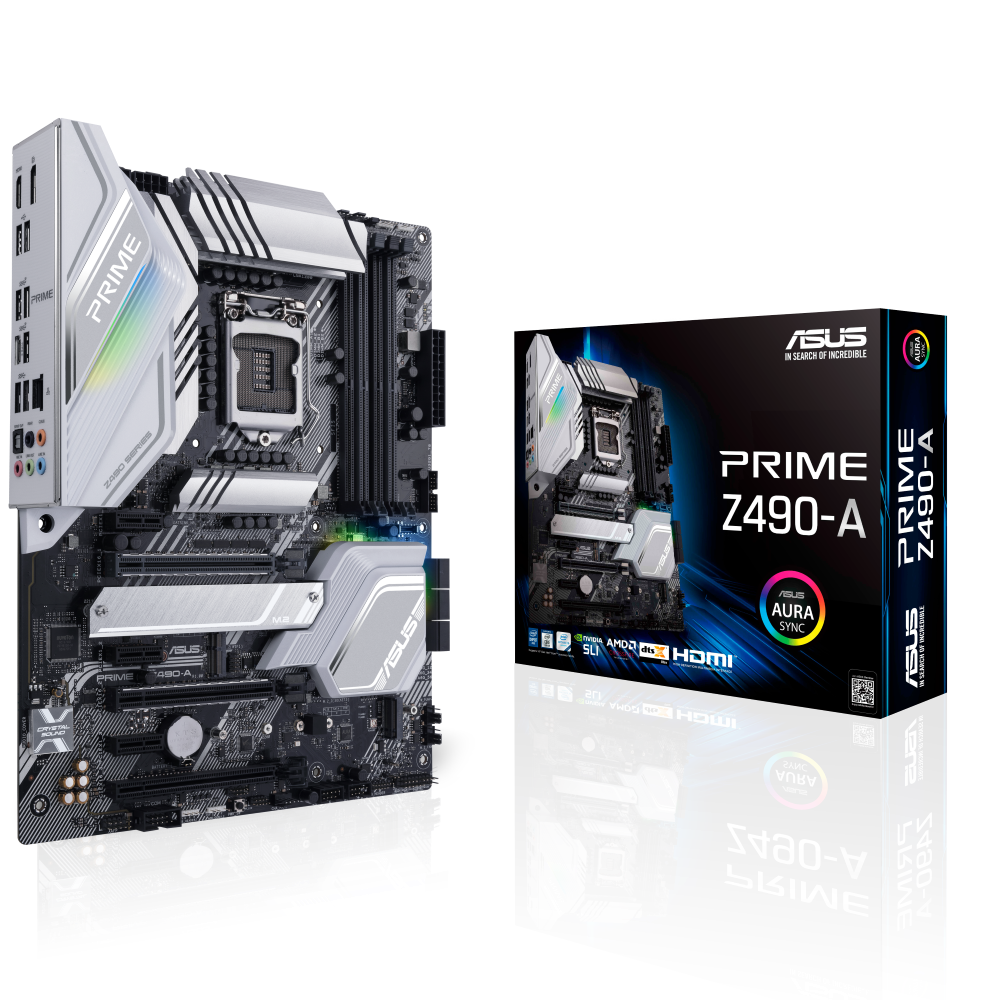

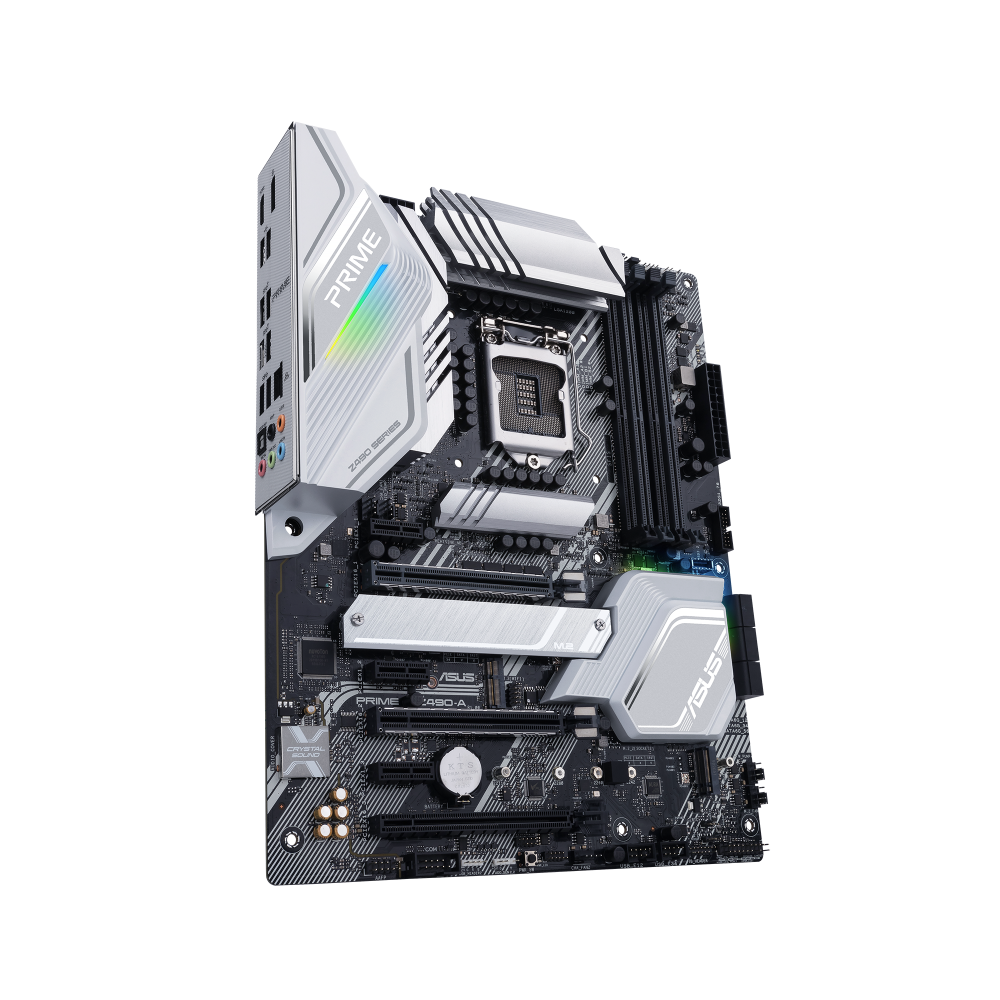

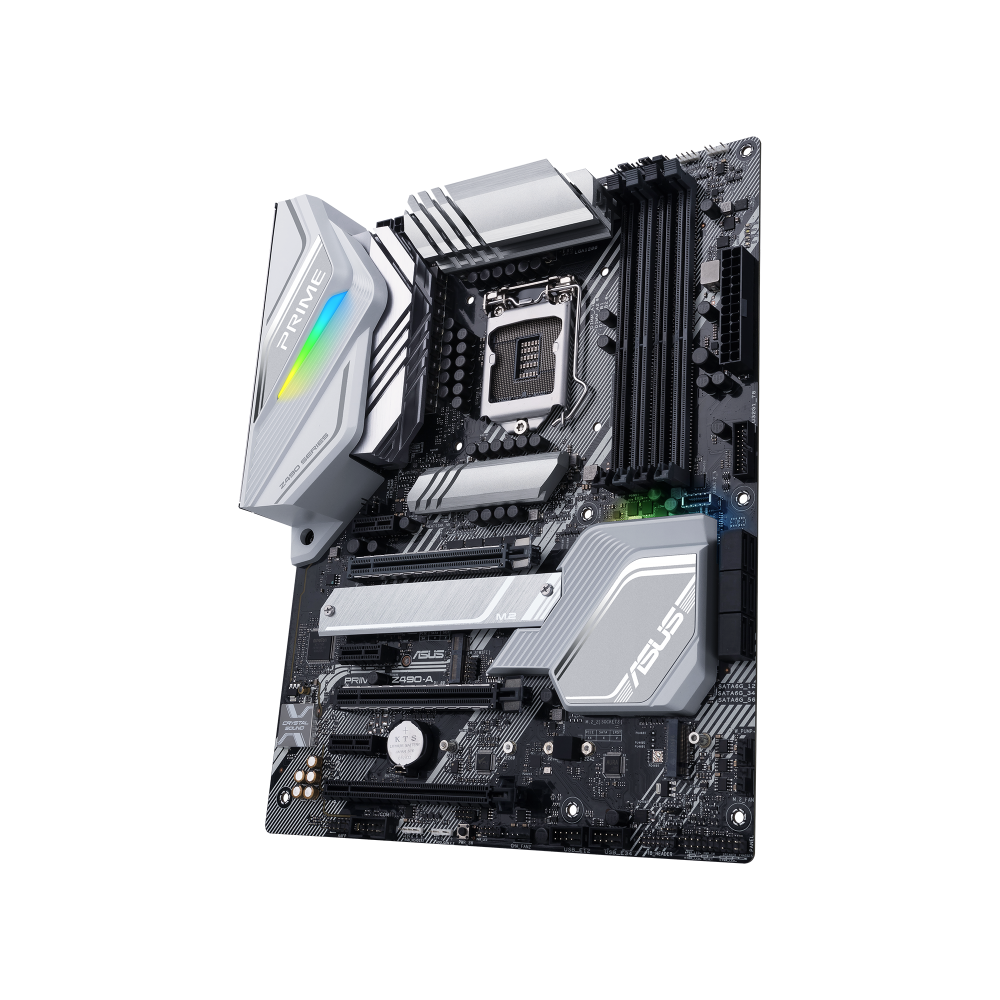

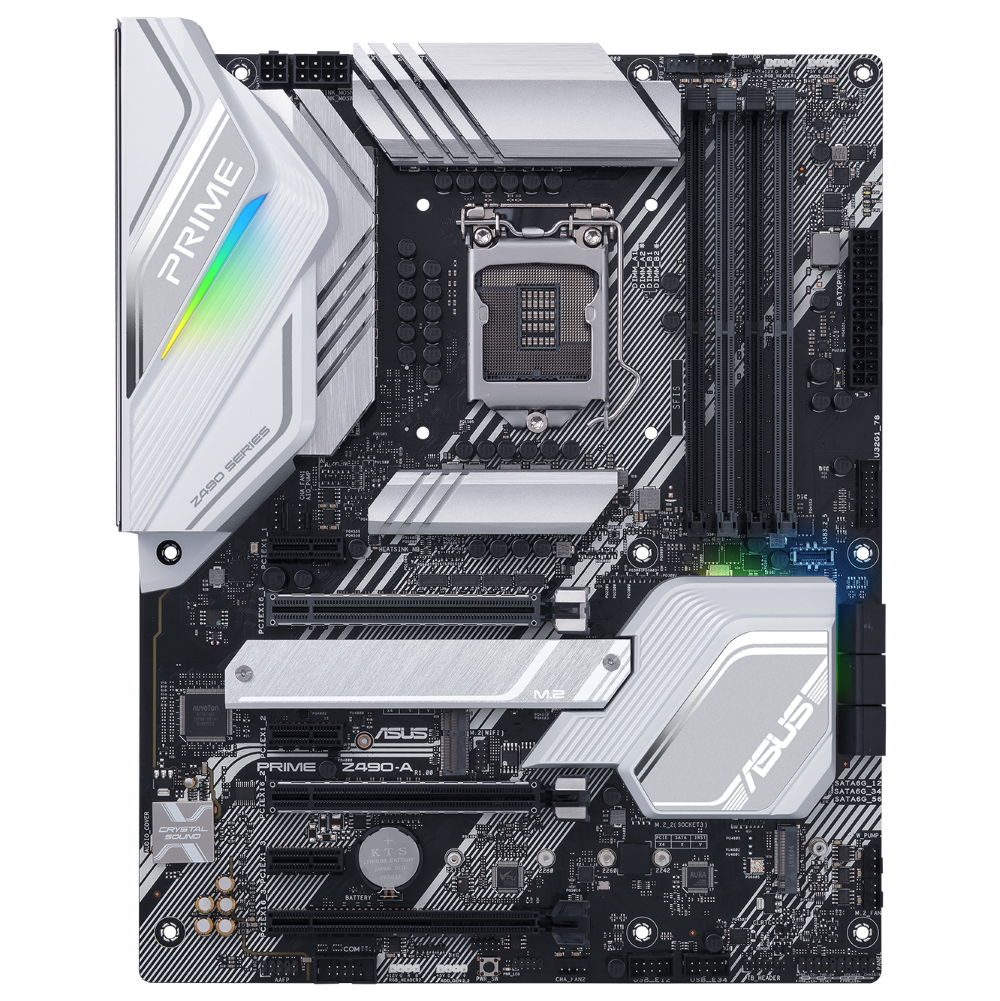

PRIME Z490-A

PRIME Z490-A

Intel Z490チップセット搭載・ATXマザーボード
オフィスワークにも対応するスタンダードモデル

・Intel Z490チップセット搭載
・第10世代Intel Coreプロセッサー対応
・対応ソケット：LGA 1200
・メモリースロット：DDR4-4000+(OC)×4（最大128GB）
・ストレージ：SATA 3.0 (6Gb/s)×6、M.2×2
・拡張スロット：PCIe 3.0 x16 (x16 mode) ×2、PCIe 3.0 x16 (x4 mode)×1、PCIe 3.0 x1×3
・LAN：Intel I225-V 2.5Gb Ethernet
・無線機能：M.2 slot only (Key E) (Support CNVI & PCIe interface)*
・映像出力：DisplayPort 1.2×1、HDMI 1.4b×1
・オーディオ：Realtek S1220A
・フォームファクター：ATX
・製品寸法：305×234mm

*Wi-Fi module is sold separately.

型番：PRIME Z490-A

JAN：0192876678671

メーカー製品ページ



ASUS Primeシリーズは、Intel® Core™第10世代プロセッサーの可能性を最大限に引き出すように専門的に設計されています。堅牢な電力設計、包括的な冷却ソリューション、インテリジェントなチューニングオプションを誇るPrime Z490シリーズマザーボードは、日常的なユーザーとDIY PCビルダーに、付属のソフトウェアとハードウェアからさまざまなパフォーマンスチューニングオプションを提供します。

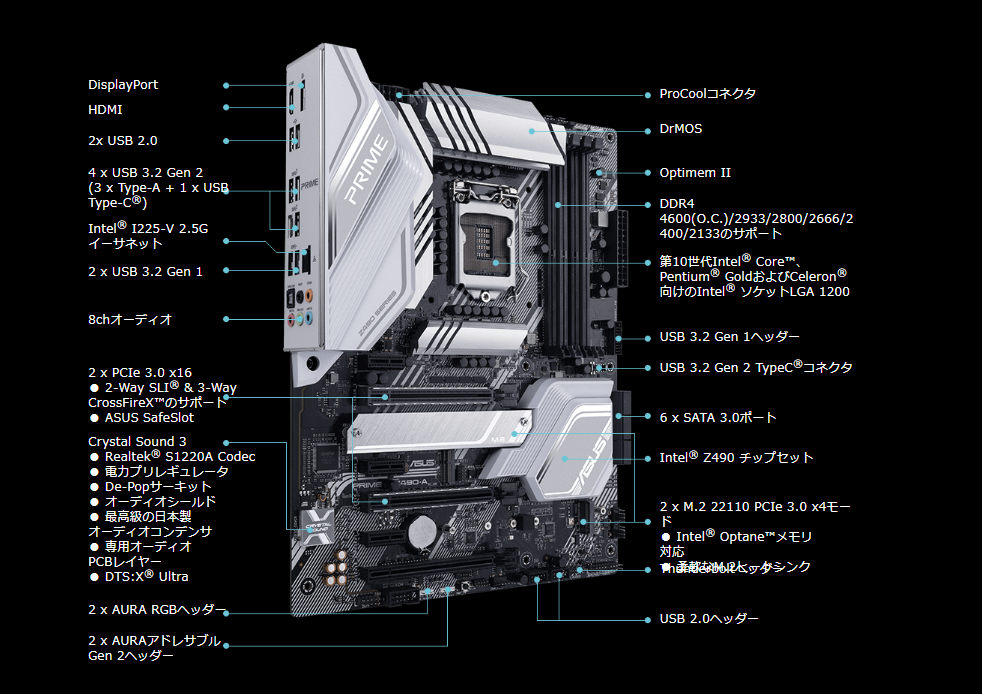

  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 *
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    2 x PCIe 3.0 x16 (x16 or dual x8) *1
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (max at x4 mode)
    3 x PCIe 3.0 x1 *2
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I225-V 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless Data Network
    M.2 slot only (Key E) (Support CNVI & PCIe interface)*
    *Wi-Fi module is sold separately.
  • Audio
    Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    - Optical S/PDIF in port(s) at back panel
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
    - Audio Cover
    - Unique de-pop circuit
    - Power pre-regulator: Reduces power input noise to ensure consistent performance
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    Rear USB Port ( Total 8 )
    4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 7 )
    1 x USB 3.2 Gen 2 front panel connector port(s)
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
  • Special Features
    ASUS 5X Protection III :
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM - Digital power design with Dr. MOS
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    AURA :
    - Aura RGB Strip Headers
    - Addressable Gen 2 Header
    ASUS Exclusive Features :
    - Pre- mounted I/O shield
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    DIY Friendly Design
    - Procool
    - SafeSlot
  • Software Features
    ASUS Exclusive Software:
    Armoury Crate:
    - Aura Creator
    - Aura Sync
    AI Suite 3
    - 5-way Optimization with AI Overclocking
    TPU
    EPU
    Digi+ VRM
    Fan Xpert 4
    Turbo app
    - EZ update
    AI Charger
    ASUS Turbo LAN
    DTS:X® Ultra
    UEFI BIOS:
    AI Overclocking Guide
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - EZ Tuning Wizard
    FlexKey
  • Back I/O Ports
    1 x Intel® I225-V 2.5Gb Ethernet
    1 x DisplayPort
    1 x HDMI
    4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
    2 x USB 3.2 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    2 x Addressable RGB header
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
    1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 with E key for Wi-Fi module
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x CPU_OV jumper
    1 x M.2 Fan Header

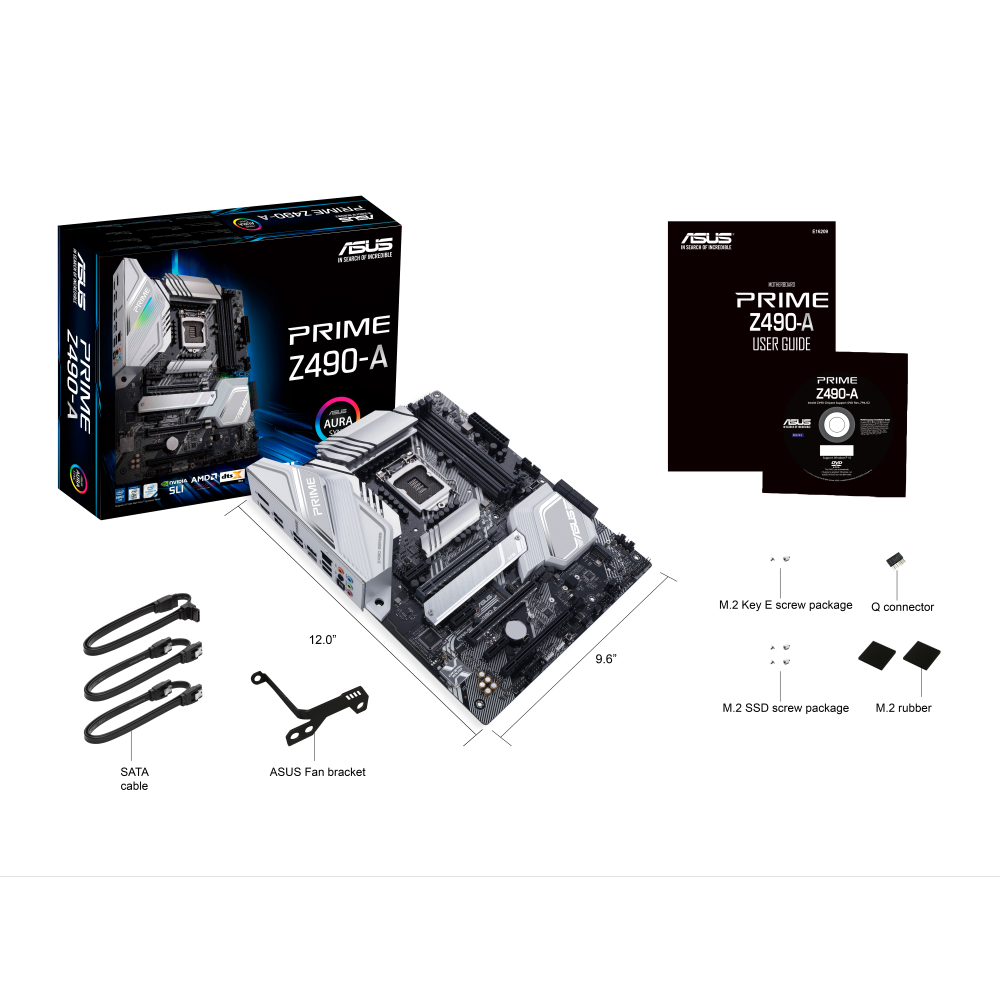

  • Accessories
    User's manual
    3 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x Q-Connector
    1 x CPU Fan Holder
    1 x M.2 SSD screw package(s)
    1 x M.2 Key E screw package(s)
    1 x M.2 Rubber Package(s)
  • BIOS
    192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 The PCIe x1_2 slot shares bandwidth with M.2 slot (Key E).
    *2 Support PCIe bifurcation for RAID on CPU function.
    *3 The M.2_1 socket shares bandwidth with SATA_2.
    *4 M.2_2 slot shares bandwidth with SATA_56. When M.2_2 slot is operating in PCIe x4 mode, SATA_56 will be disabled.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
