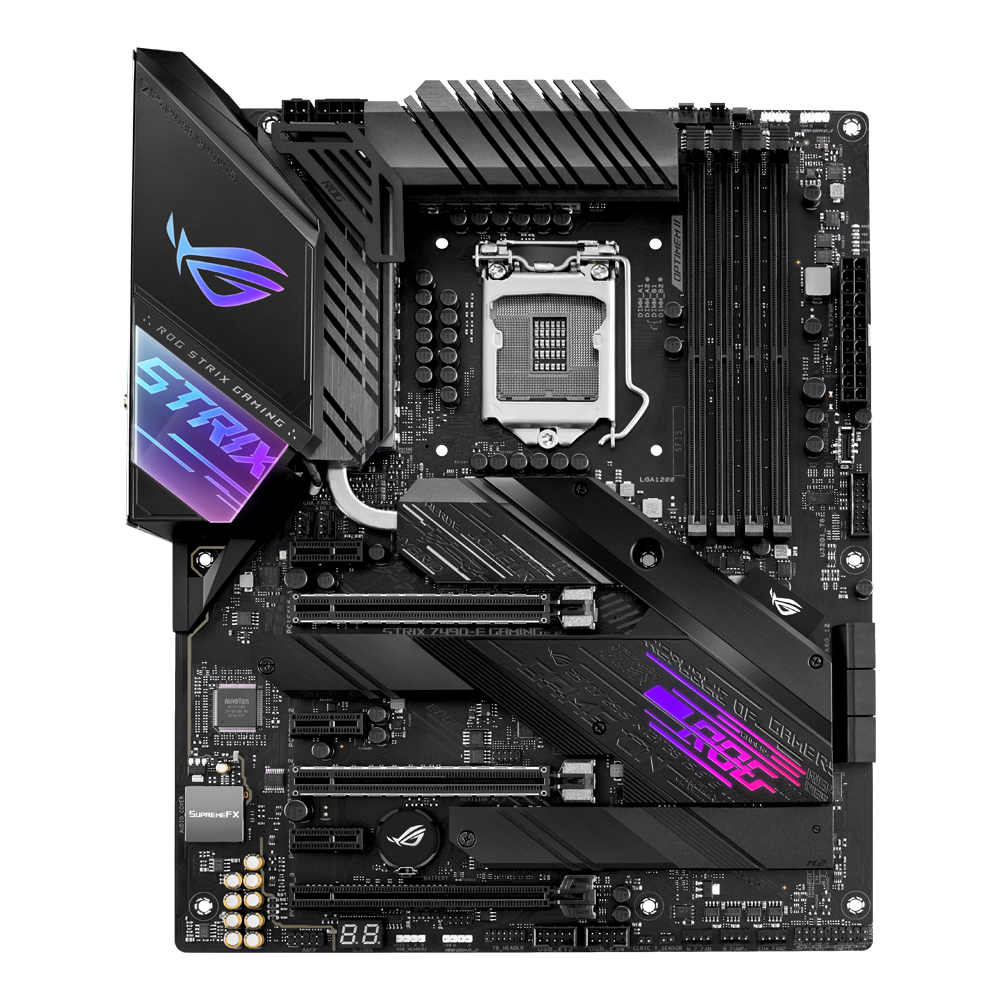

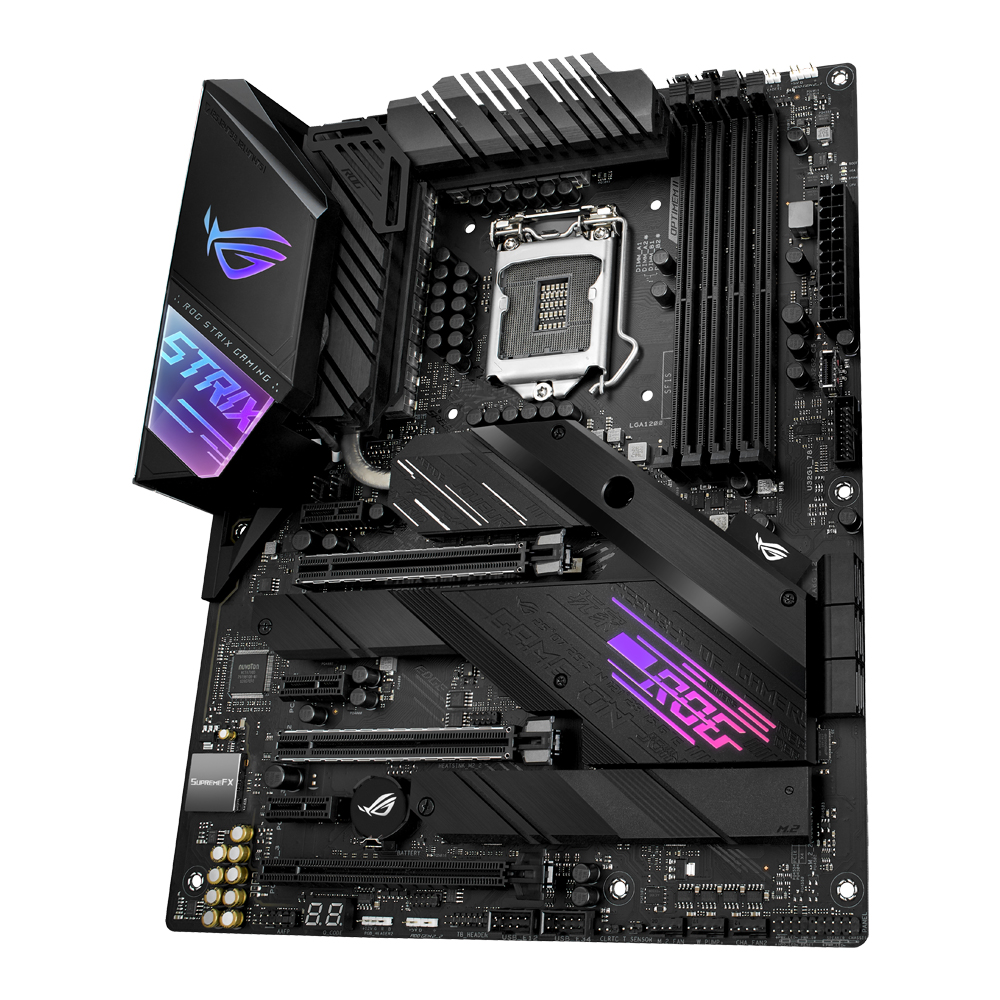

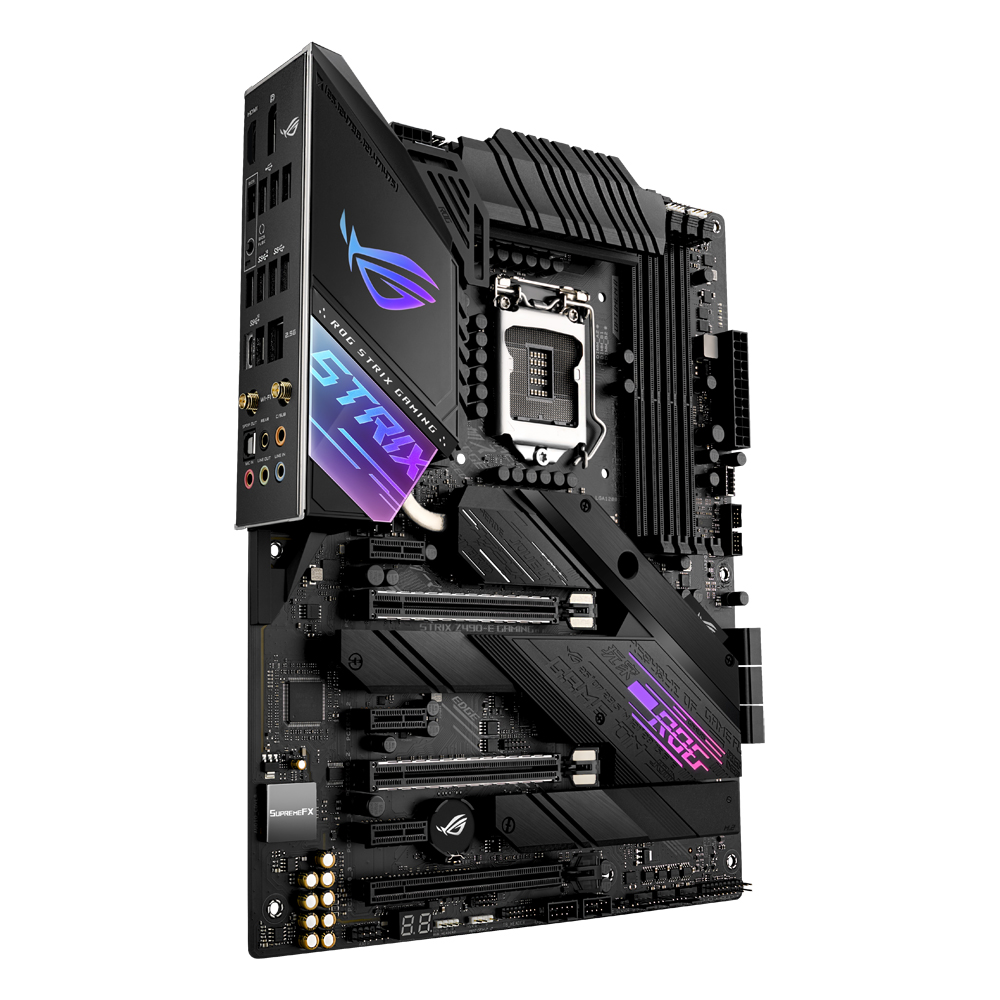

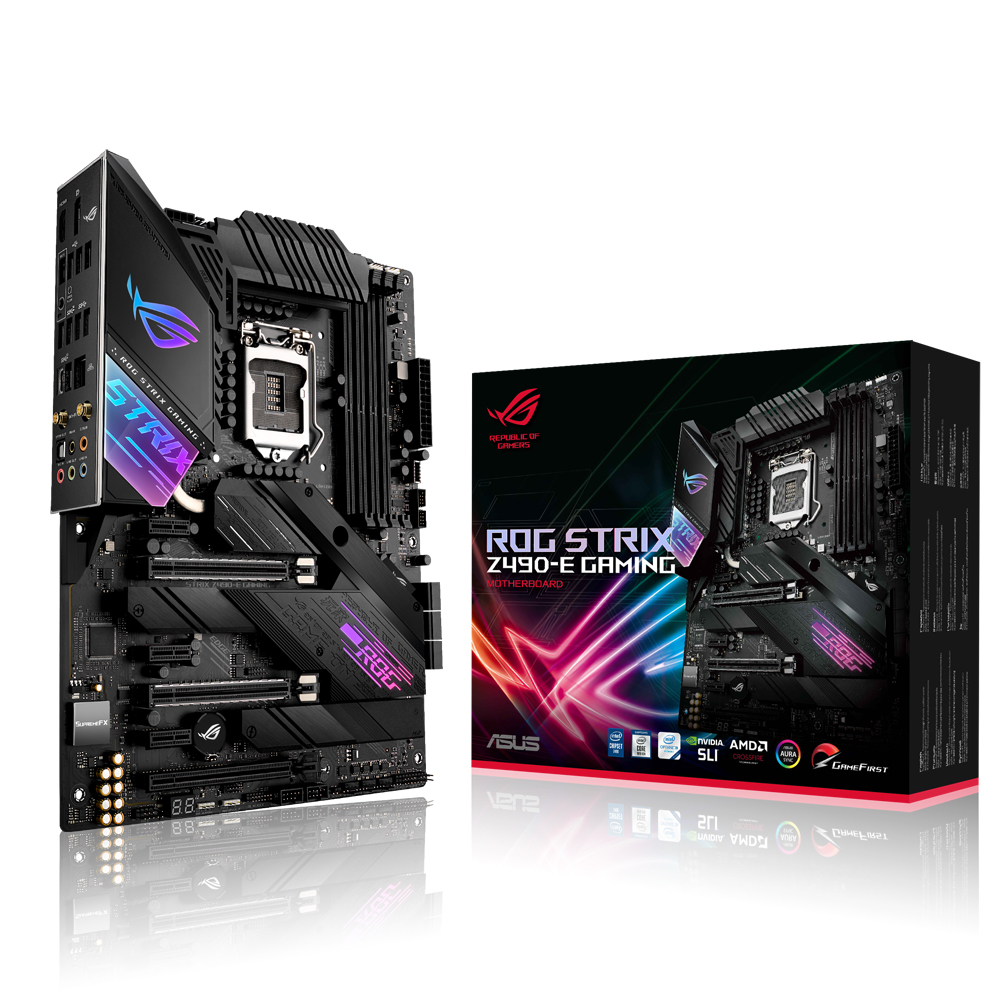

ROG STRIX Z490-E GAMING

ROG STRIX Z490-E GAMING

Intel Z490チップセット搭載・ATXマザーボード
ゲーマー向けROG STRIXシリーズ

・ソケット : LGA 1200
・対応CPU : 第10世代 Intel Core、Pentium Gold/Celeron プロセッサ
・チップセット : Intel Z490
・対応メモリ : DDR4-4600×4（最大128GB）
・拡張スロット : PCIe 3.0 x16×3、PCIe 3.0 x1×3
・画面出力 : DisplayPort 1.4×1、HDMI 1.4b×1
・ストレージ : M.2×2、SATA 6Gb/s×6
・Thunderbolt 3 : ヘッダー搭載
・無線 : Wi-Fi 6 (ax/ac/n/a/g/b)、Bluetooth V5.1
・有線LAN : 2.5GBASE-T×1
・USB機能（外部/内部）: USB 3.2 Gen 2×5 (4/1)、USB 3.2 Gen 1×4 (2/2)、USB 2.0×8 (4/4)
・フォームファクタ : ATX（305mm×244mm）

型番：ROG STRIX Z490-E GAMING

JAN：0192876671627

メーカー製品ページ

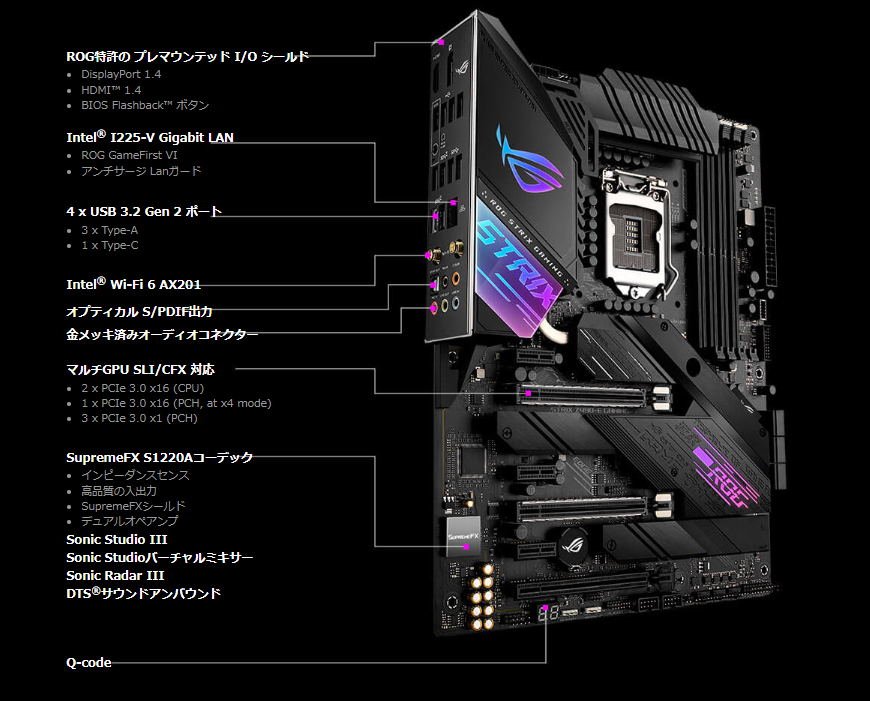

ROG Strix Z490-E Gamingマザーボードは、第10世代Intel® Core™ プロセッサーに対応するように設計されており、ブーストされた電力供給と最適化された冷却設計により、熱放散のためのより多くの表面積を提供します。ROG Strix Z490-E GamingはAIにより直感的なダッシュボードをオーバークロックし、様々なパラメーターを簡単に微調整できます。性能もさながら、ROG Strix Z490-E Gamingはサイバーパンクにインスパイアされたデザインと鏡面ステンレス鋼仕上などこだわりが詰まった製品です。










対応CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Intel® Z490
メインメモリ 4 x DIMM, Max. 128GB, DDR4
4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics Processor
1 x DisplayPort 1.4 *
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
マルチGPU対応 Supports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
拡張スロット Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel® Z490 Chipset
1 x PCIe 3.0 x4 (x4 mode)
3 x PCIe 3.0 x1
ストレージ機能 Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN機能 Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
無線機能 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth機能 Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
- Gold-plated jacks
- Optical S/PDIF in port(s) at back panel
- LED-lit Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB機能 Rear USB Port ( Total 10 )
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
独自機能 AURA :
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS EZ DIY :
- ASUS USB BIOS FlashBack™
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
DIY Friendly Design
- ProCool II
- SafeSlot
Software Features ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3:
- 5-way Optimization with AI Optimization.
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
- EZ update
WinRAR
UEFI BIOS
AI Optimization Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

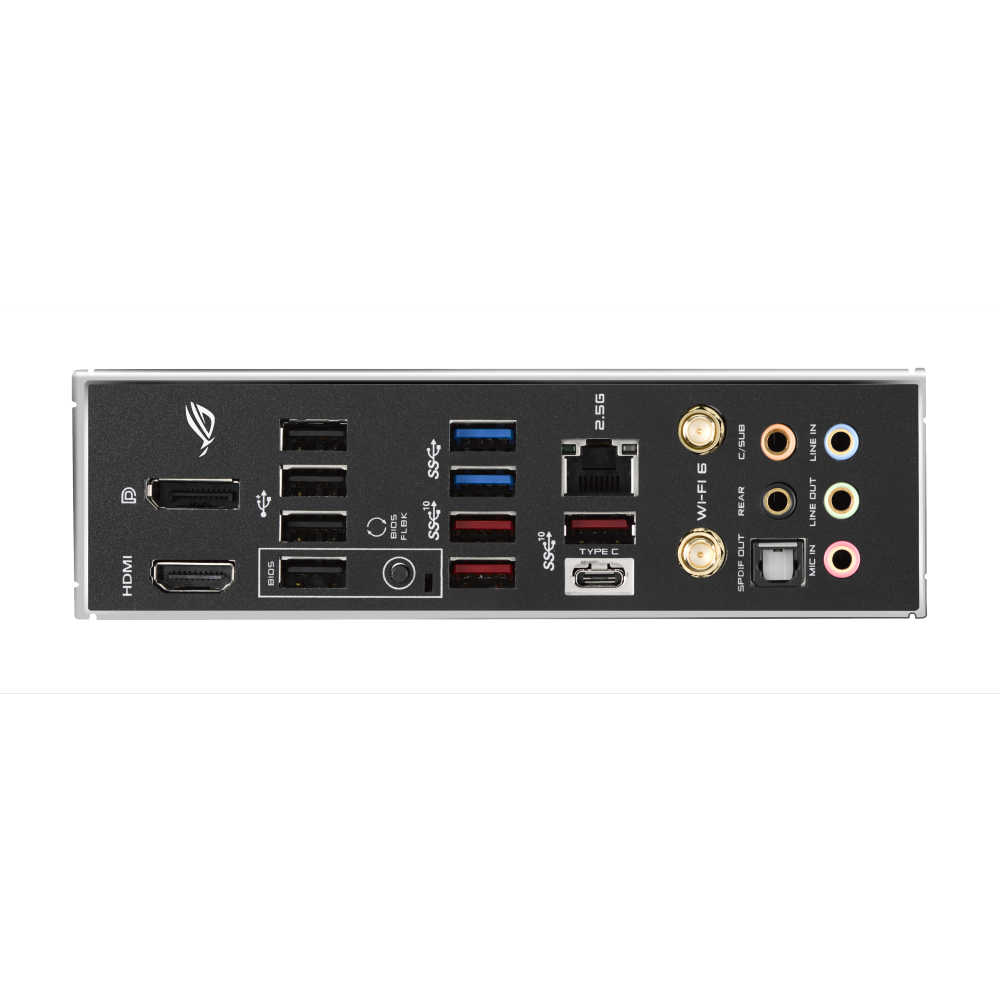

背面インターフェース 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
5 x Gold-plated audio jacks
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

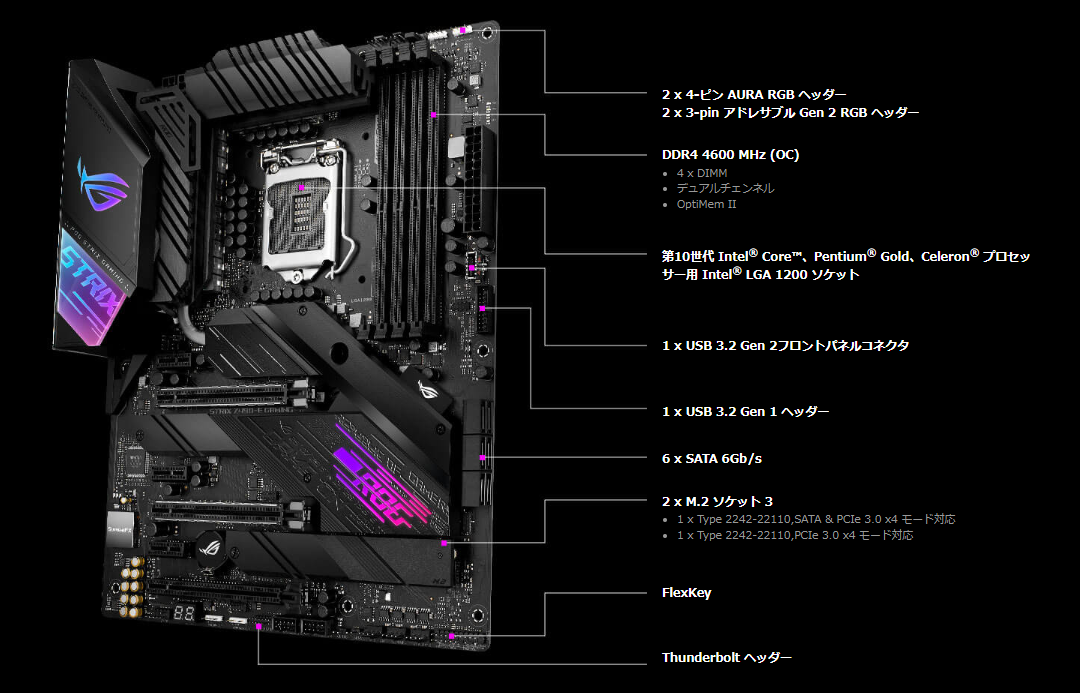

基板上インターフェース 1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x Q-Code
1 x VRM_HS_FAN Header
主な付属品 User's manual
1 x ASUS Fan Holder
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
1 x 2-in-1 Rubber pad

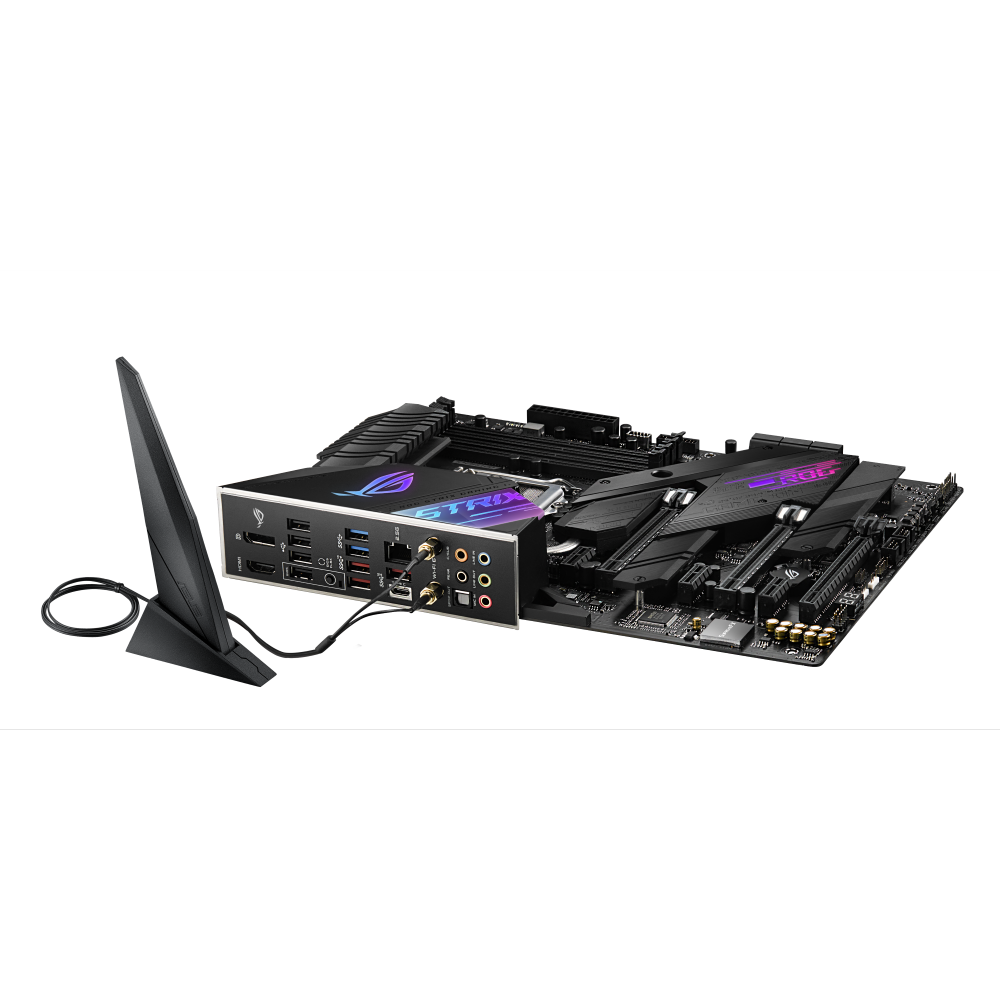

1 x Wi-Fi moving antenna
1 M.2 SSD screw package(s)
1 ROG key chain
BIOS機能 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 *When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated SATA6G_56 will be disabled.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
