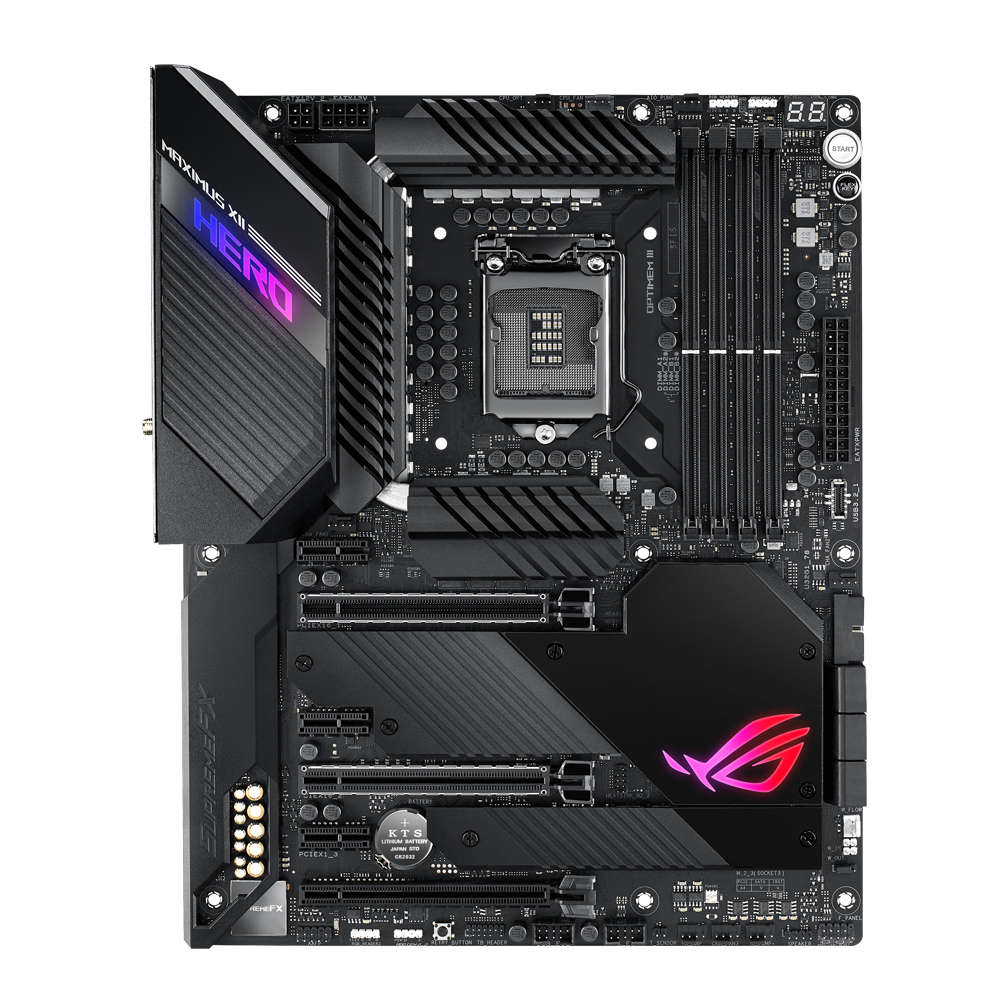

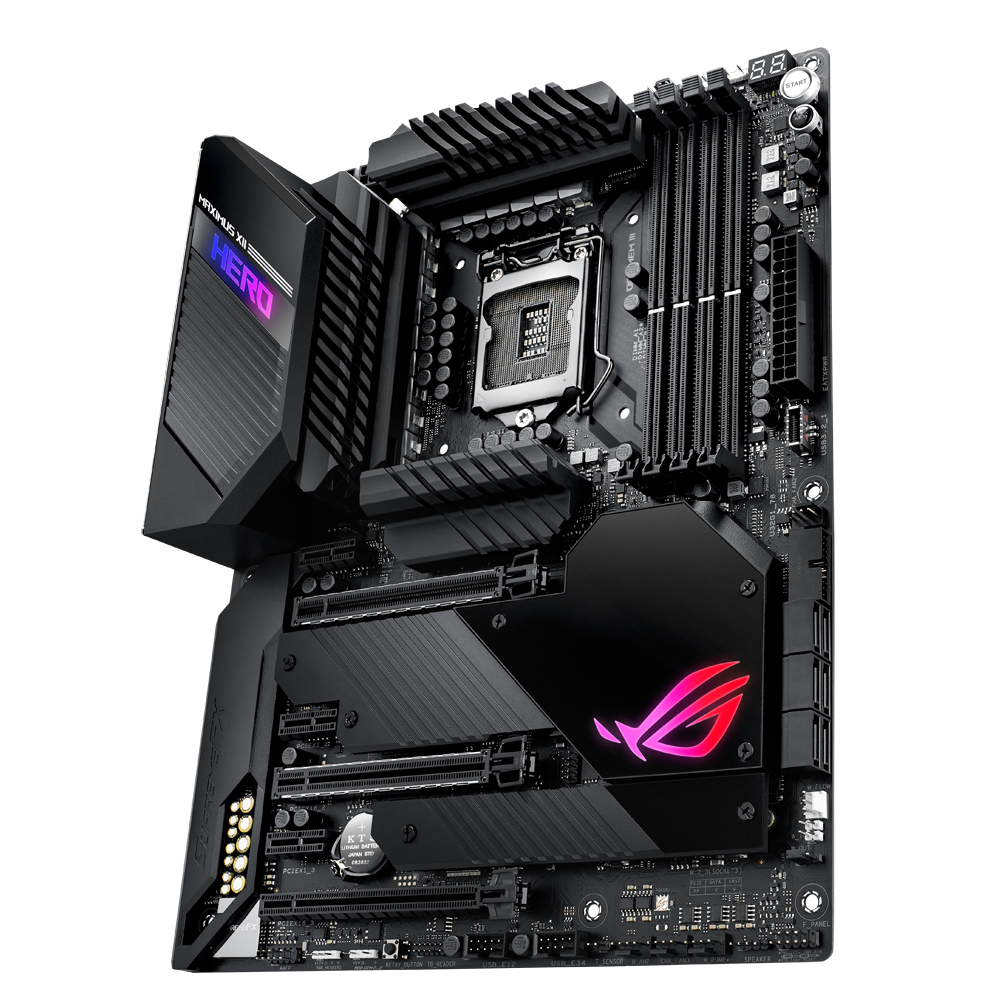

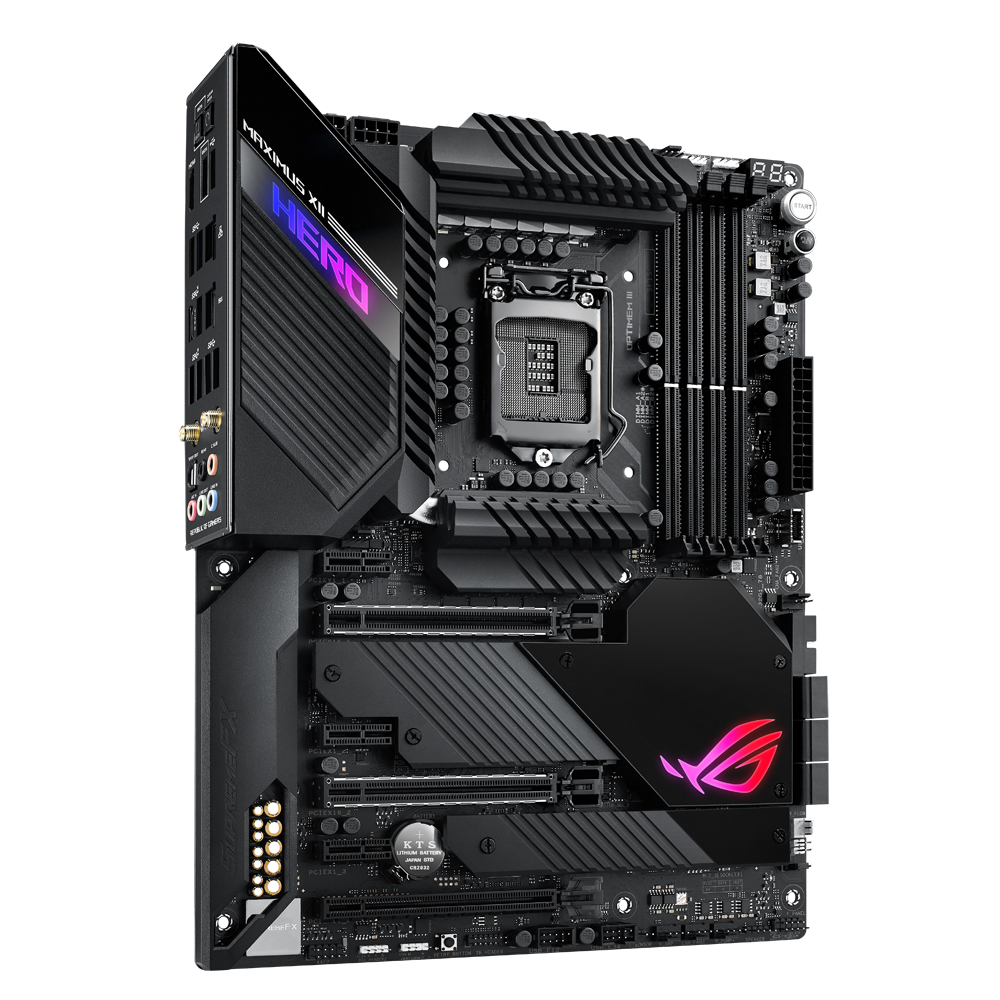

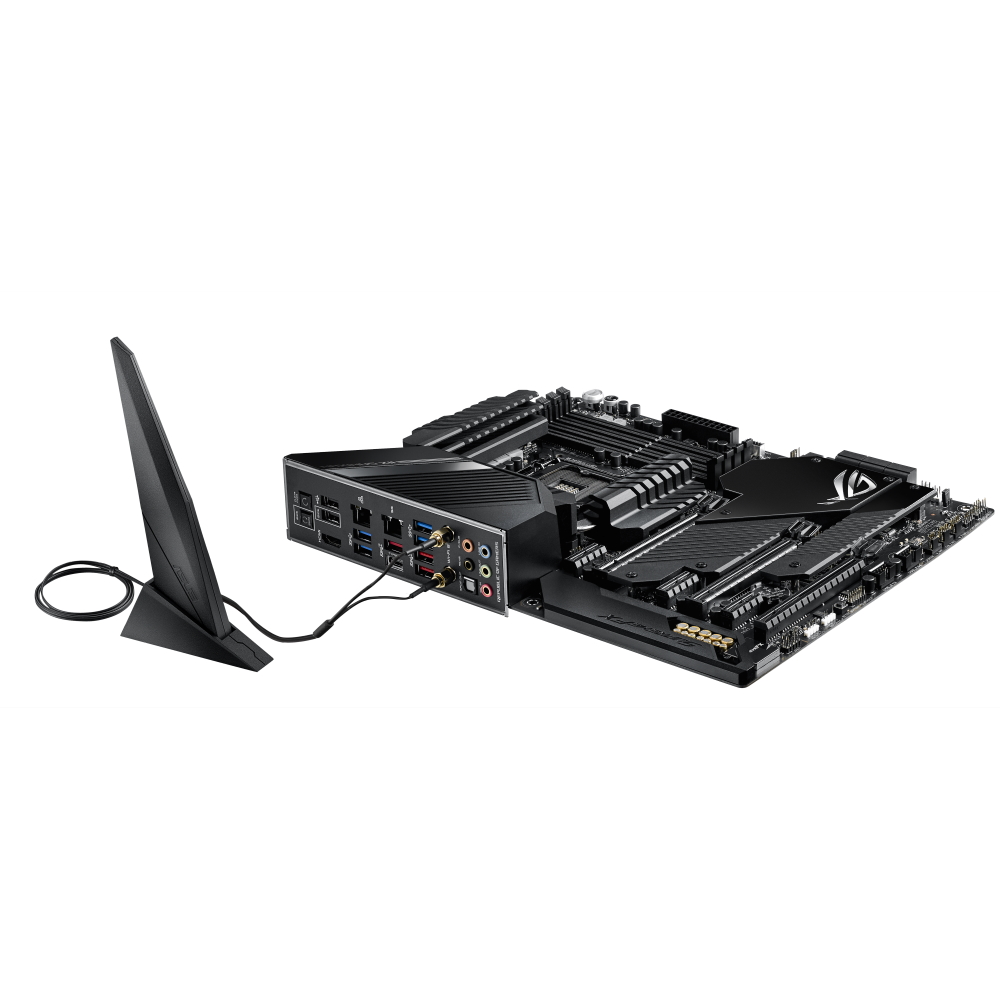

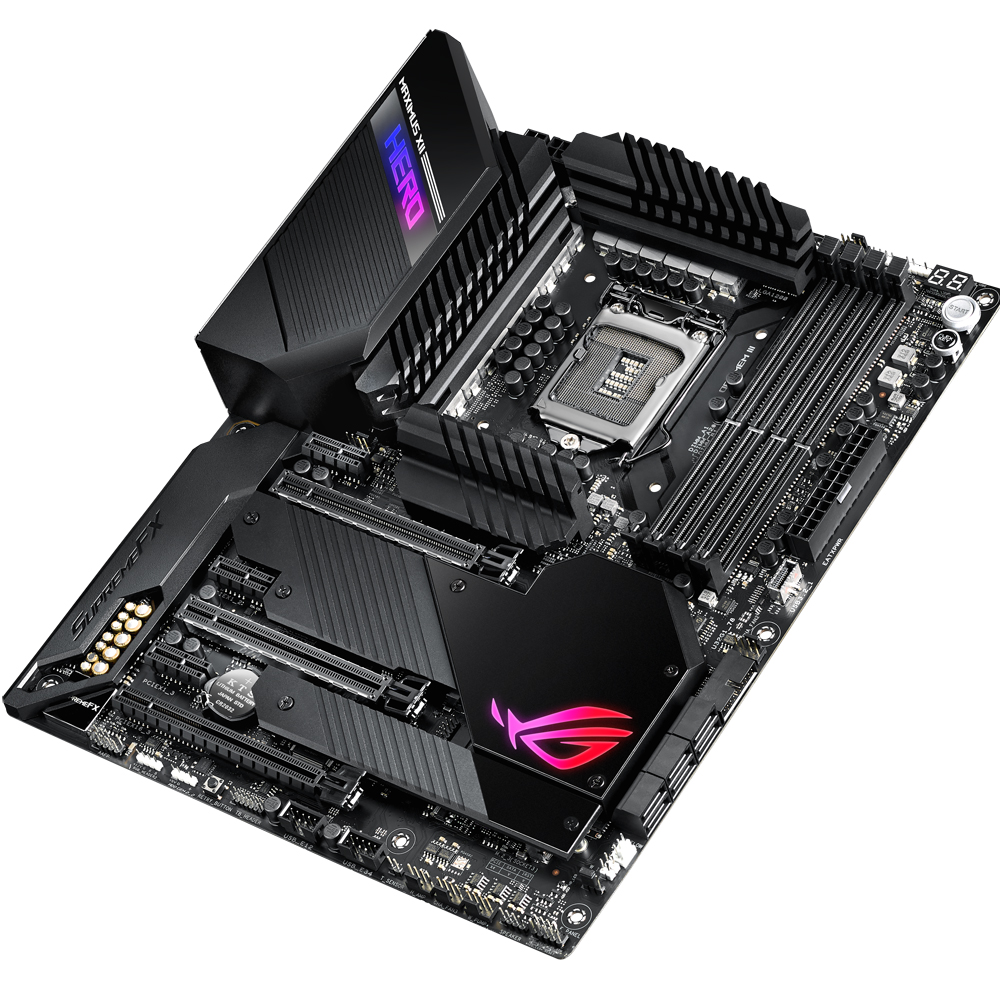

ROG MAXIMUS XII HERO (Wi-Fi)

ROG MAXIMUS XII HERO (Wi-Fi)

Intel Z490チップセット搭載・ATXマザーボード
ROG MAXIMUSシリーズ・エントリーモデル

・ソケット : LGA 1200
・対応CPU : 第10世代 Intel Core、Pentium Gold/Celeron プロセッサ
・チップセット : Intel Z490
・対応メモリ : DDR4-4800×4（最大128GB）
・拡張スロット : PCIe 3.0 x16×3、PCIe 3.0 x1×3
・画面出力 : HDMI 1.4b×1
・ストレージ : M.2×3、SATA 6Gb/s×6
・Thunderbolt 3 : ヘッダー搭載
・無線 : Wi-Fi 6 (ax/ac/n/a/g/b)、Bluetooth V5.1
・有線LAN : 5GBASE-T×1、1000BASE-T×1
・USB（外部/内部）: USB 3.2 Gen 2×5 (4/1)、USB 3.2 Gen 1×6 (4/2)、USB 2.0×6 (2/4)
・フォームファクタ : ATX（305mm×244mm）

型番：ROG MAXIMUS XII HERO (Wi-Fi)

JAN：0192876664094

メーカー製品ページ


ROG Maximus XII Heroは真剣なゲーマーにとって完璧な基盤と言えます。さりげない外観にかなりの電力、スマートな冷却、高速なメモリサポートを搭載したマザーボードです。AI OverclockingやAI Coolingから注目を集めるAura Syncイルミネーションまで、名高いROG機能を搭載したMaximus XII Heroはすぐにフル活用でき、カスタマイズにもぴったりです。

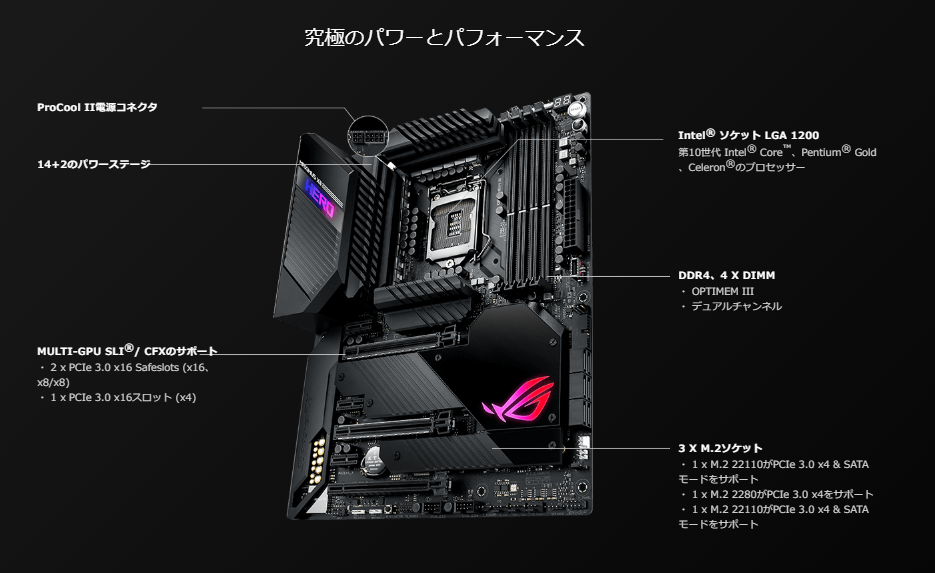

対応CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Intel® Z490
メインメモリ 4 x DIMM, Max. 128GB, DDR4
4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics Processor
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
マルチGPU対応 Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
拡張スロット Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode) *2
3 x PCIe 3.0 x1
ストレージ機能 Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4
1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN機能 Intel® I219-V 1Gb Ethernet
Marvell® AQtion AQC111C 5Gb Ethernet
ASUS LANGuard
無線機能 Intel® Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth機能 Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

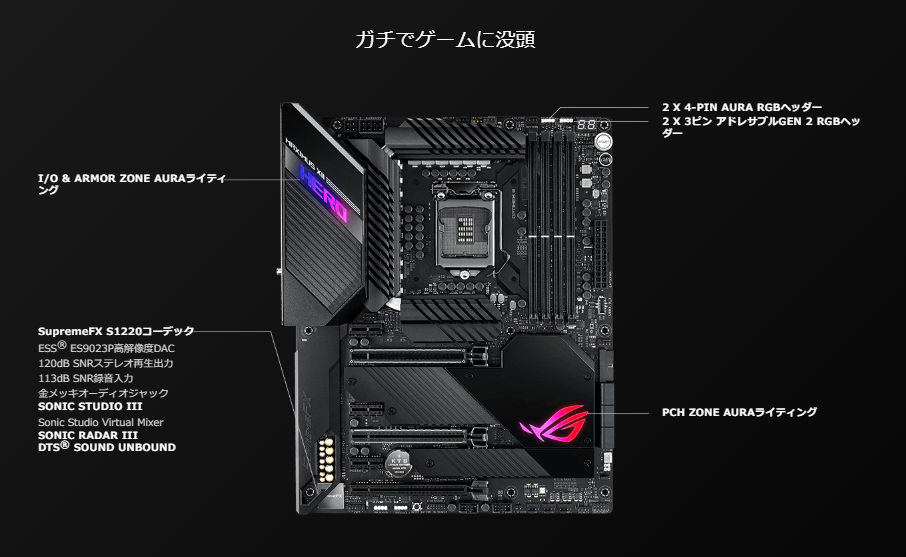

オーディオ機能 ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220*6
- Impedance sense for front and rear headphone outputs
- Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- ESS™ ES9023 DAC + RC4580 OP AMP
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Premium Japanese audio capacitors
- Audio Cover
USB機能 Rear USB Port ( Total 10 )
4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features [ROG Exclusive Software]
- Mem Tweakit
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- BullGuard Internet Security (1-year full version)

[ASUS Exclusive Software]
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- 5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app
- EZ update
AI Charger
WinRAR

[UEFI BIOS]
AI Overclocking Guide

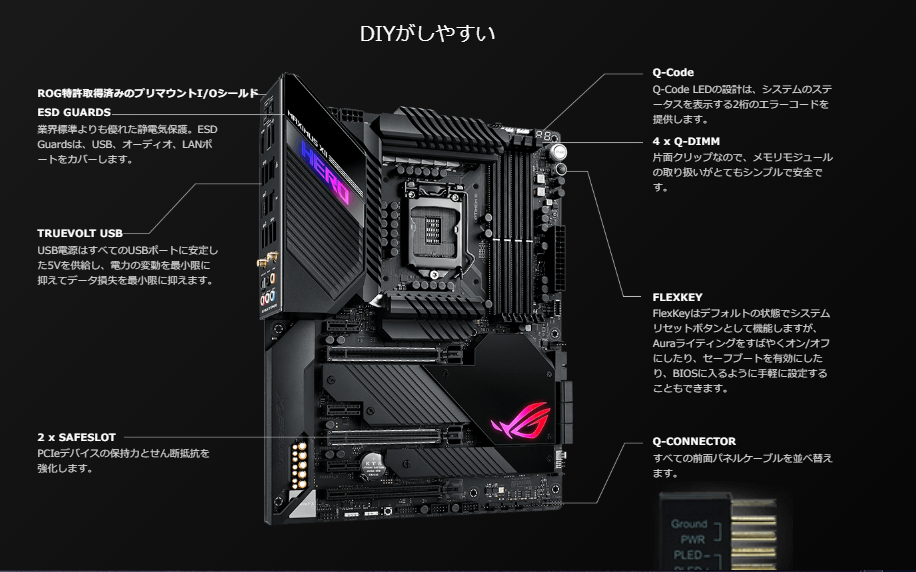

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features ROG Extreme OC kit
- FlexKey button
- ReTry button
- Start button

Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke

ASUS Q-Design
- ASUS Q-Code
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot

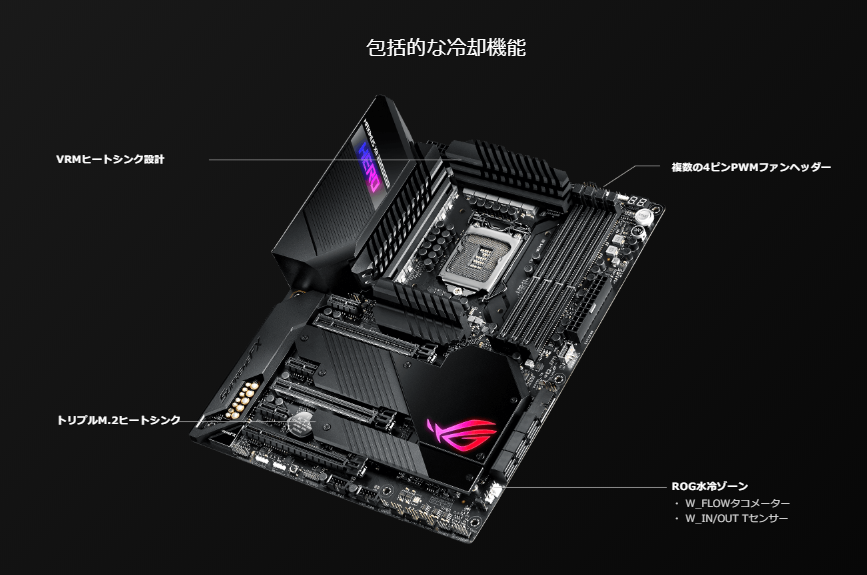

ASUS Thermal Solution
- Aluminum M.2 heatsink cover

ASUS EZ DIY
- BIOS Flashback™ button
- Clear CMOS button
- Procool II
- Pre-mounted I/O shield
- SafeSlot

AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB headers

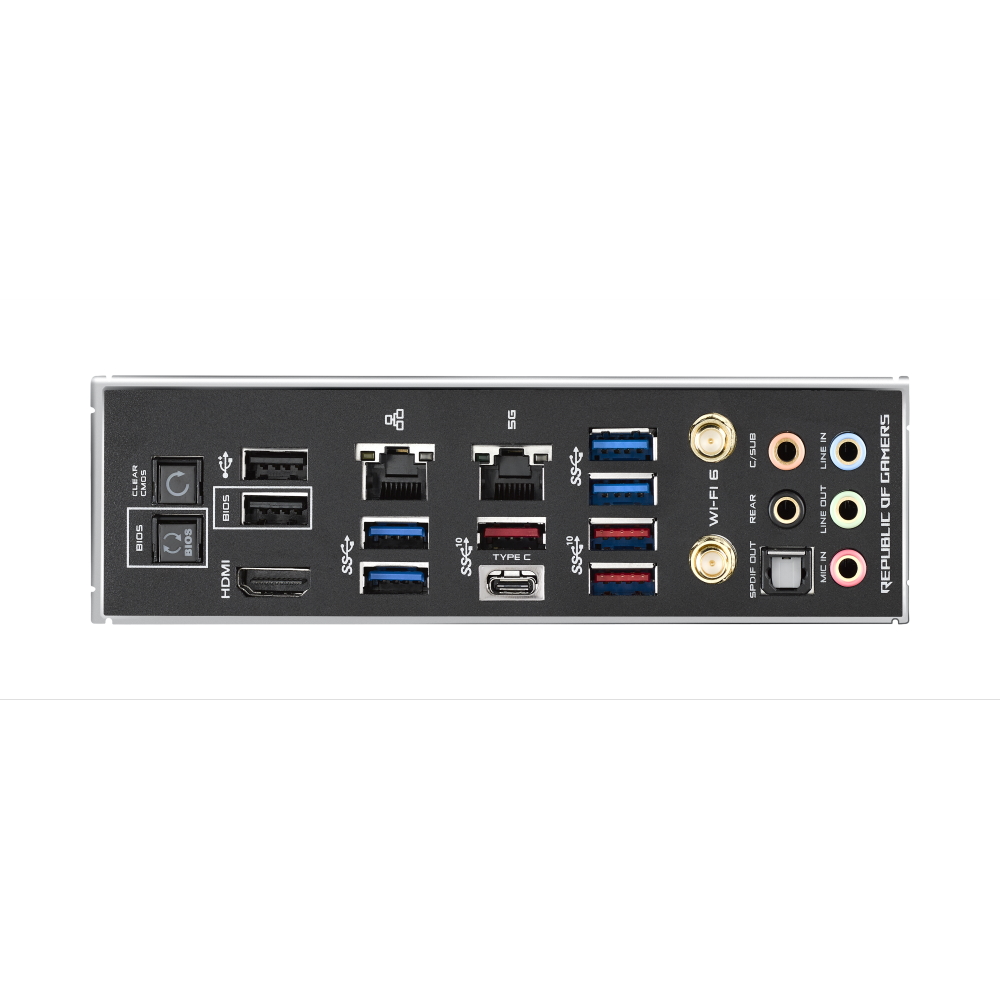

背面インターフェース 1 x Marvell® AQtion AQC111C 5Gb Ethernet
1 x Intel® I219-V 1Gb Ethernet
1 x HDMI
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
基板上インターフェース 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
3 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Thermal sensor connector(s)
1 x ReTry button
1 x System panel connector
1 x Speaker connector
1 x Start button
1 x FlexKey button
主な付属品 User's manual
Addressable LED extension cable
1 x ROG logo plate sticker
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x ROG big sticker
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x ROG Thank you card
2 x M.2 SSD screw package(s)
2 x M.2 Rubber Package(s)
1 ROG key chain
BIOS機能 256 Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )
その他 *1 Support PCIe bifurcation for RAID on CPU function.

*2 The PCIEX16_3 shares bandwidth wih M.2_2. The PCIEX16_3 will be disabled when M.2_2 runs x4 mode.

*3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.

*4 M.2_2 shares bandwidth with PCIEX16_3. When M.2_2 runs x4 mode, PCIEX16_3 will be disabled. When M.2_2 runs x2 mode, PCIEX16_3 runs x1 mode.

*5 M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is populated SATA6G_56 will be disabled.

*6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
