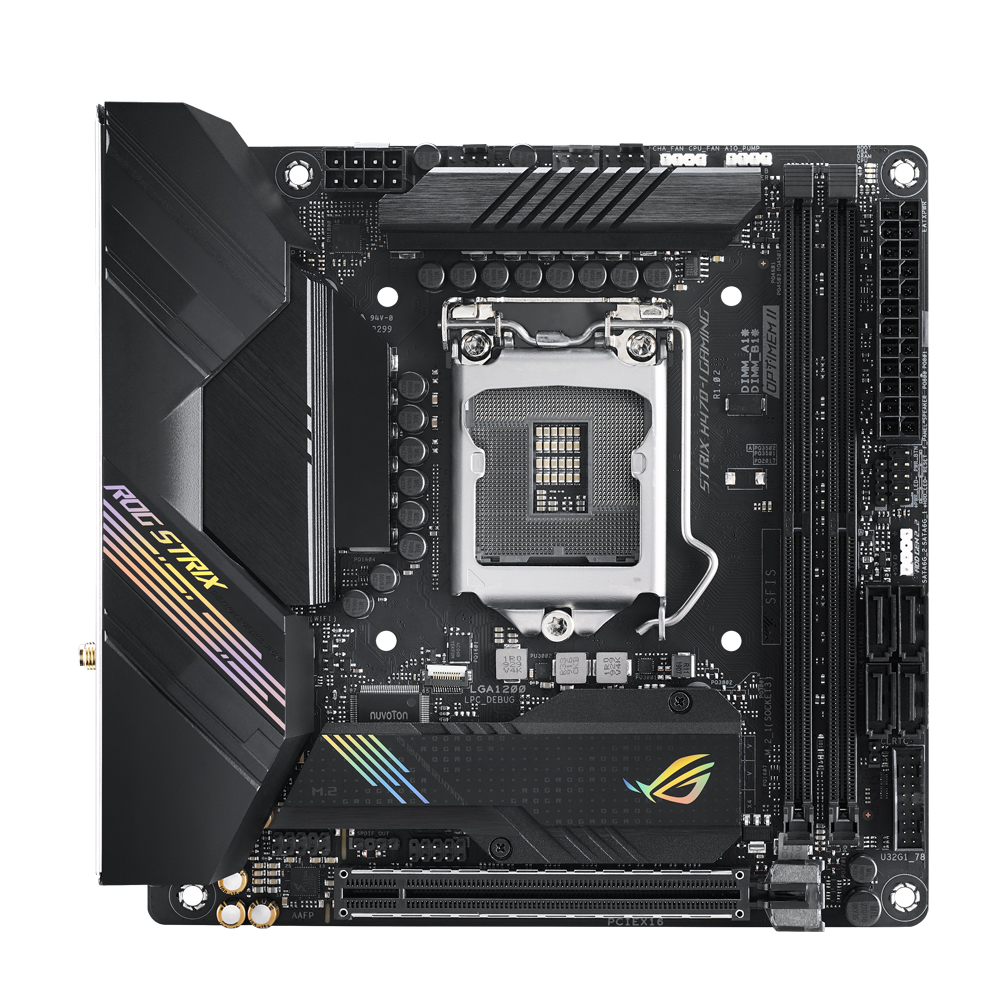

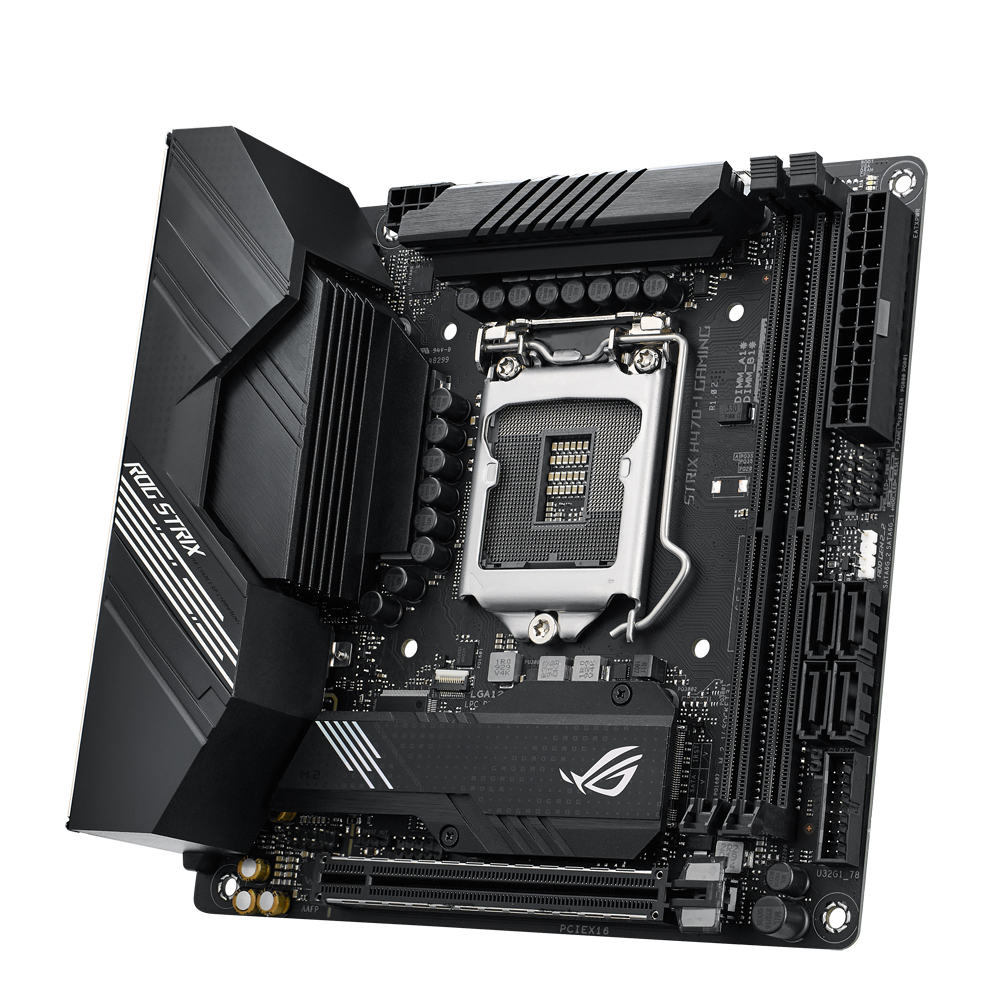

ROG STRIX H470-I GAMING

ROG STRIX H470-I GAMING

Intel Z490チップセット搭載・Mini-ITXマザーボード
デュアルギガLAN搭載、Wi-Fi 6対応のROG STRIXモデル

・対応CPU : 第10世代 Intel Core、Pentium Gold/Celeron プロセッサ
・チップセット : Intel H470
・対応メモリ : DDR4-2933×2（最大64GB）
・拡張スロット : PCIe 3.0 x16×1
・画面出力 : DisplayPort 1.4×1、HDMI 1.4b×1
・ストレージ : M.2×2、SATA 6Gb/s×4
・無線 : Wi-Fi 6 (ax/ac/n/a/g/b)、Bluetooth 5.1
・有線LAN : 1000BASE-T×2
・USB機能（外部/内部）: USB 3.2 Gen 2×2 (2/0)、USB 3.2 Gen 1×6 (4/2)、USB 2.0×3 (1/2)
・フォームファクタ : Mini-ITX（170mm×170mm）

型番：ROG STRIX H470-I GAMING

JAN：0192876694312

メーカー製品ページ



ROG Strix H470-I Gamingマザーボードは、最新の第10世代インテル® Core™プロセッサーを処理するように設計されており、確実な電力供給と効果的な冷却を実現します。斬新な外観と直感的なROGソフトウェアのROG Strix H470-I Gamingは、夢のゲーミングPCをさらに優れたものにします。




対応CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Intel® H470
メインメモリ 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update
拡張スロット Intel® 10th Gen Processors
1 x PCIe 3.0 x16
ストレージ機能 Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
※M.2_1 SATA SSD使用時SATA6G_2は無効
LAN機能 Intel® I219-V 1Gb Ethernet
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
無線機能 Intel® Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Up to 2.4Gbps transfer speed
オーディオ機能 ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB機能 Rear USB Port ( Total 7 )
2 x USB 3.2 Gen 2 port(s)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
1 x USB 2.0 port(s)(1 x USB Type-C®)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features [ROG Exclusive Software]
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software

[ASUS Exclusive Software]
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility:
-TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
- EZ update
ASUS CPU-Z
DAEMON Tools
WinRAR

[UEFI BIOS]
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot

ASUS Thermal Solution

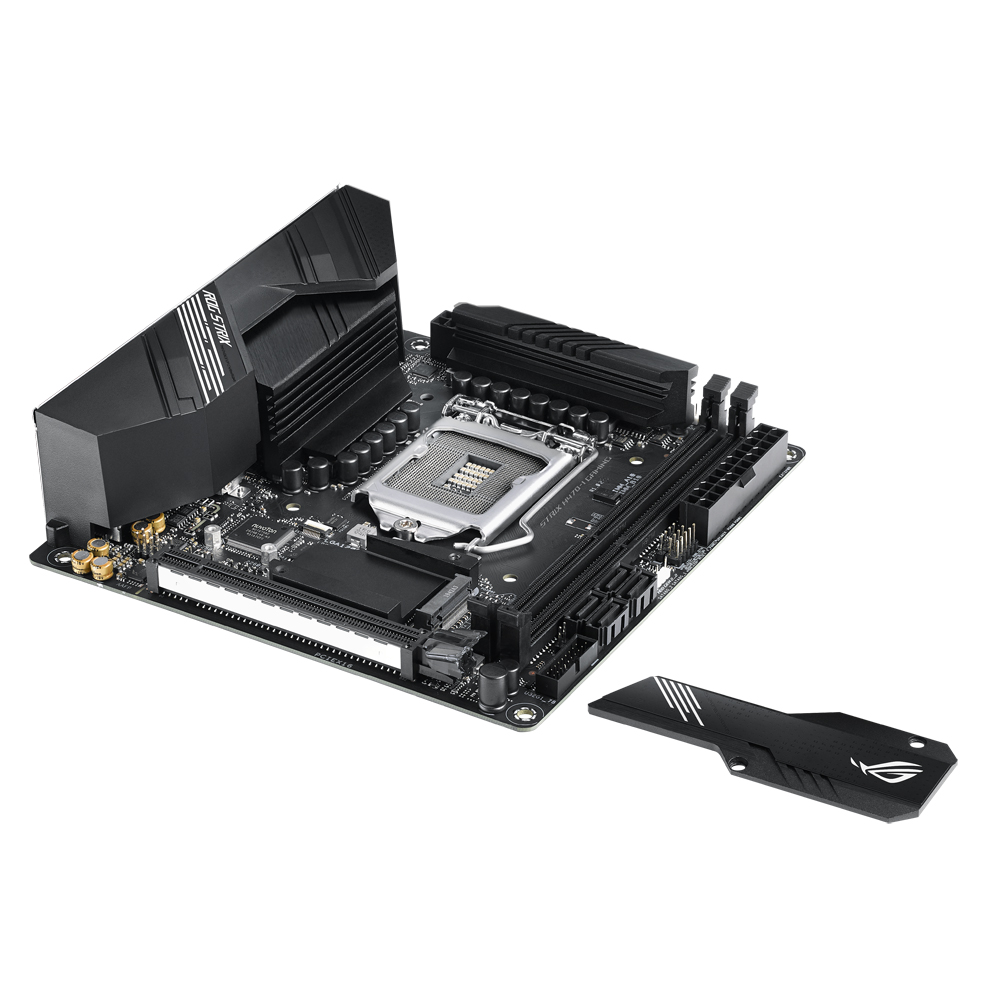

- Aluminum M.2 heatsink

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
- Pre-mounted I/O shield
- SafeSlot

AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)

Rear audio USB Type-C® connector

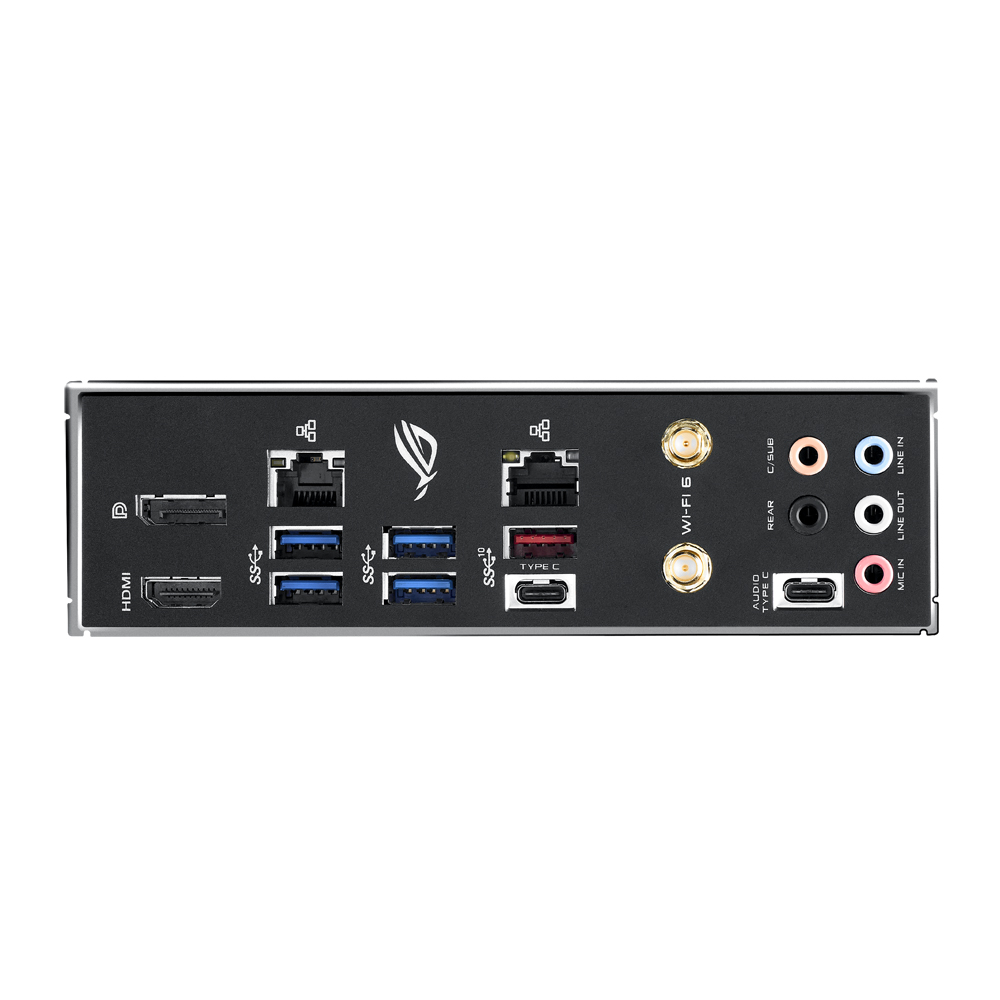

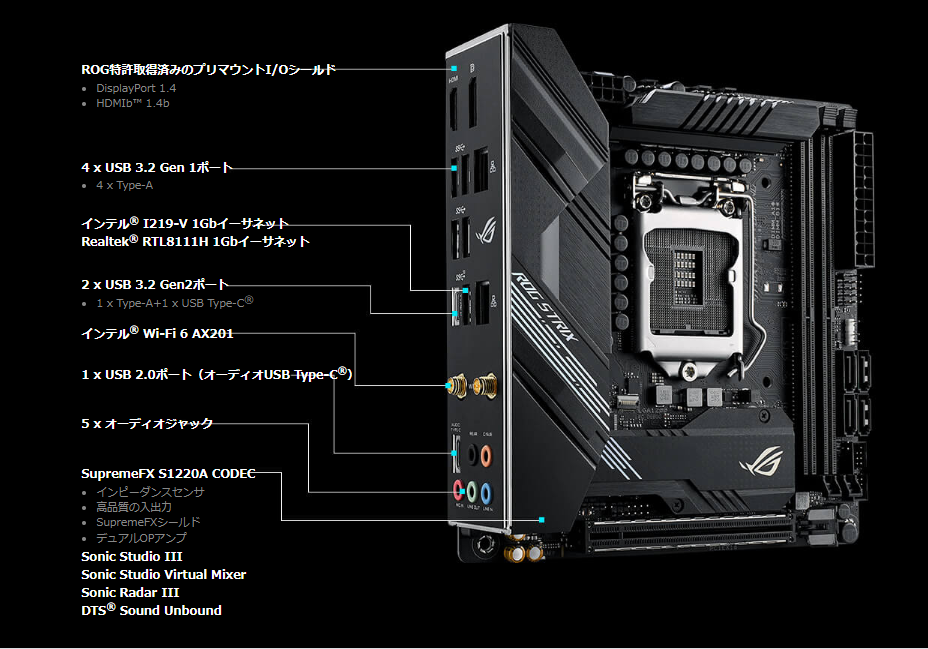

背面インターフェース 1 x Intel® I219-V 1Gb Ethernet
1 x Realtek RTL8111H 1Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (red)Type-A + USB Type-CTM
4 x USB 3.2 Gen 1
1 x USB 2.0 *3
5 x Audio jack(s)

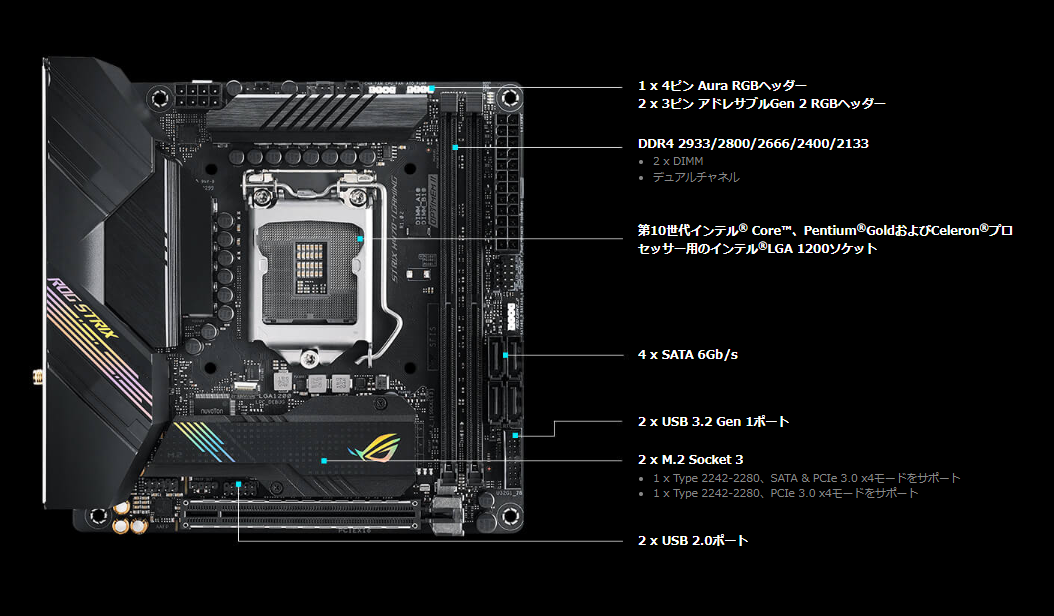

基板上インターフェース 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
主な付属品 User's manual
2 x SATA 6Gb/s cable(s)
1 x pack of cable tie
1 x Supporting DVD
1 x ROG Strix stickers
1 x Extension cable for Addressable LED
1 x ROG Thank you card

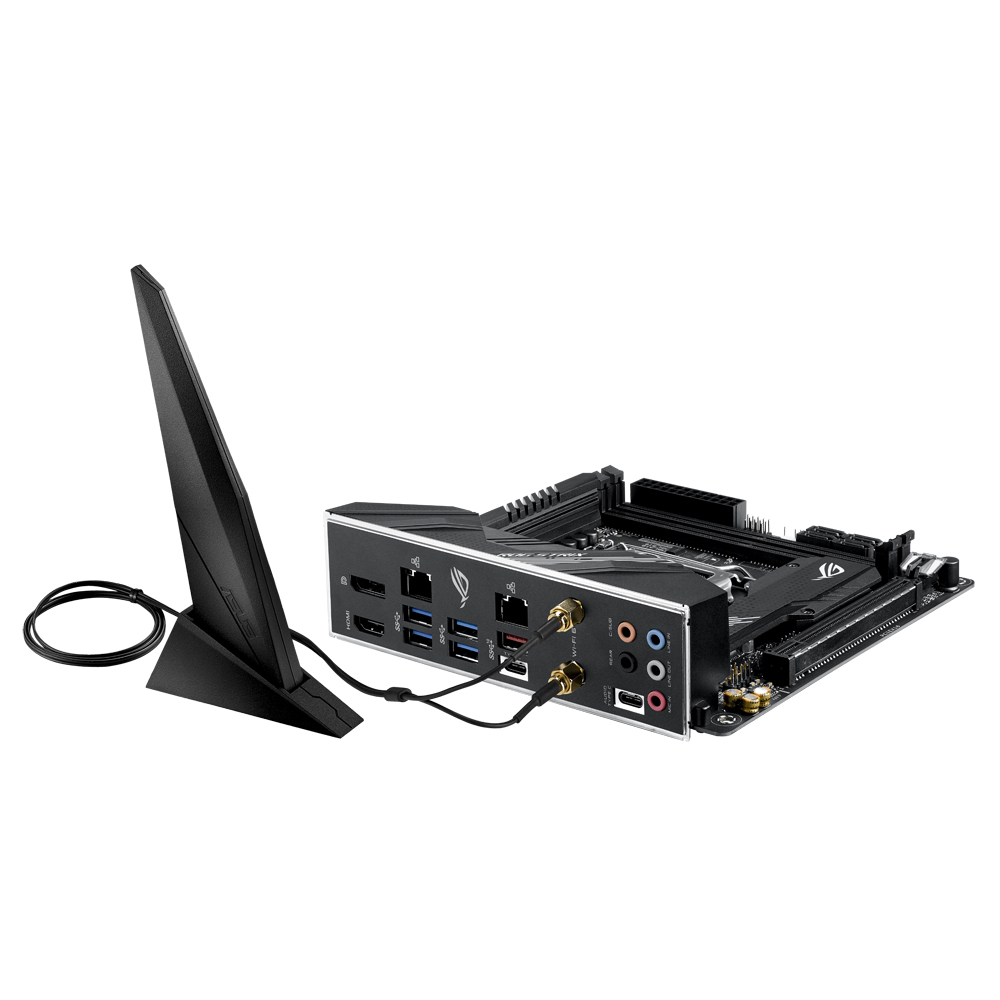

1 x Wi-Fi moving antenna
1 M.2 SSD screw package(s)
1 ROG key chain
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター（サイズW×D） Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他 *when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled
*3 1 x audio USB Type-C®

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
