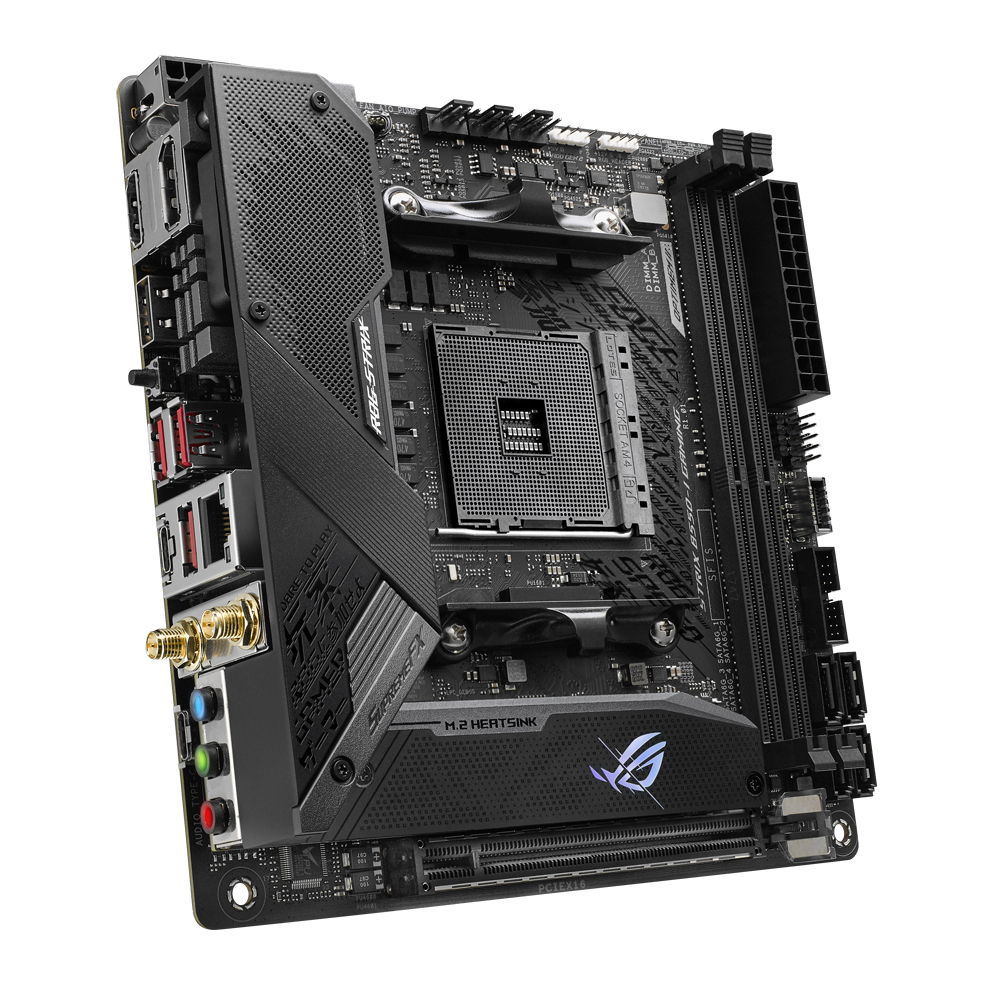

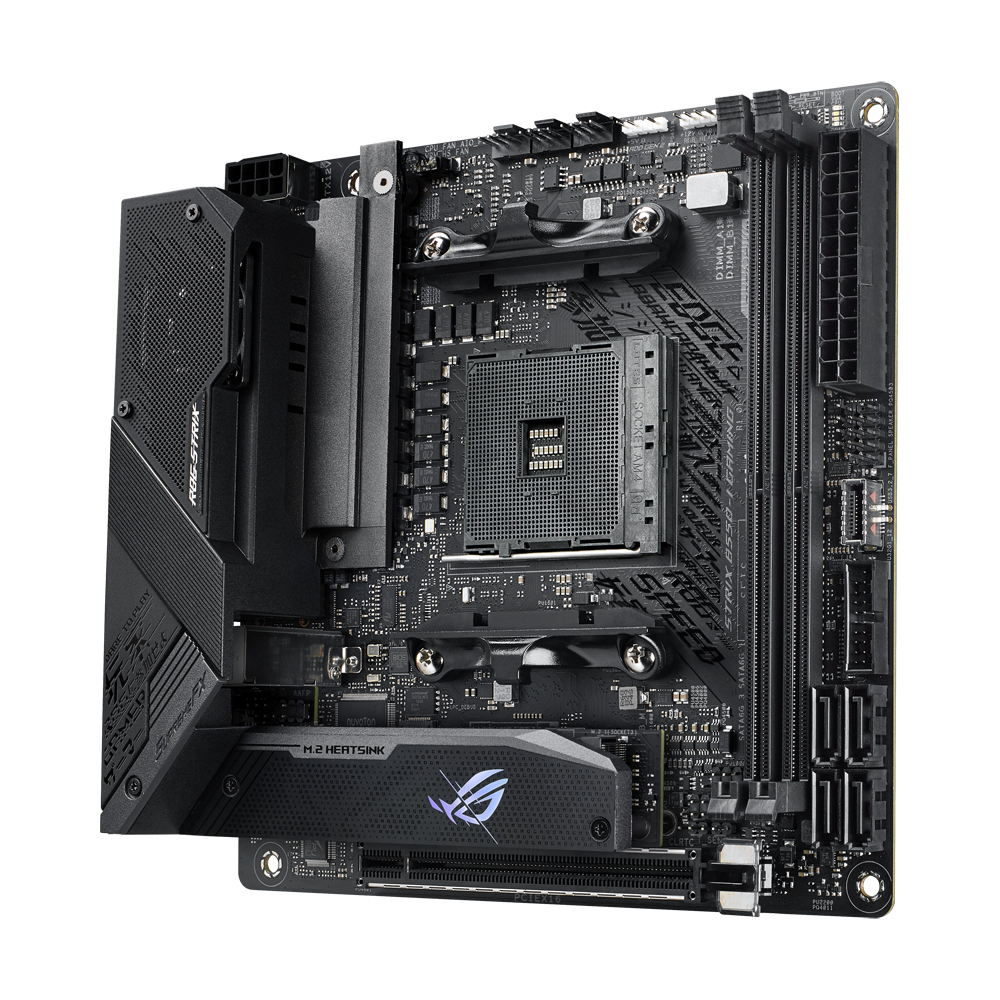

ROG STRIX B550-I GAMING

ROG STRIX B550-I GAMING

ROG STRIXシリーズ・B550 Mini-ITXマザーボード
2.5ギガビットLAN、Wi-Fi 6対応
コンパクトなゲーミングPCにも最適

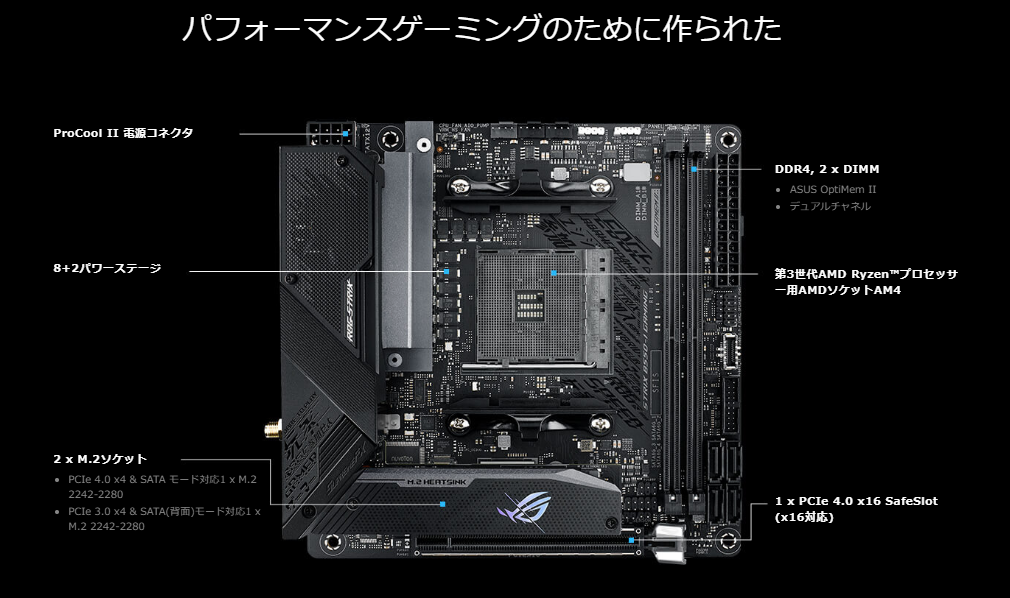

・対応CPU：第3世代 AMD Ryzen プロセッサ
・対応ソケット：AM4
・チップセット：AMD B550
・対応メモリ：DDR4-5100×2 (最大64GB）
・拡張スロット：PCIe 4.0 x16×1
・画面出力端子 : HDMI 2.1×1、DisplayPort 1.4×1
・ストレージ機能：M.2×2、SATA 6Gb/s×4
・無線機能 : Wi-Fi 6 IEEE802.11 ax/ac/n/a/g/b、Bluetooth 5.1
・有線LAN機能：2.5GBASE-T×1 (Intel I225-V)
・USB機能：USB 3.2 Gen 2×5 (4/1)、USB 3.2 Gen 1×2 (0/2)、USB 2.0×4 (2/2)
・フォームファクター : Mini-ITX（170mm×170mm）

型番：ROG STRIX B550-I GAMING

JAN：0192876786376

メーカー製品ページ



ROG Strix B550 Gamingシリーズマザーボードは、最新のPCIe® 4.0を含むハイエンドのROG Strix X570 Gamingシリーズにも搭載できる機能を提供します。
堅牢な電力供給と効果的な冷却で、ROG Strix B550 Gamingは、第3世代 AMD Ryzen™ CPU を処理するために装備されています。
未来的な美学と直感的なROGソフトウェアを誇るROG Strix B550-I Gamingは、あなたの夢のコンパクトビルドでヘッドスタートを決められます。​










対応CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
* Refer to www.asus.com for CPU support list
搭載チップセット AMD B550
メインメモリ 3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.
グラフィックス機能 1 x HDMI 2.1(4K@60HZ) *
1 x DisplayPort 1.4 *
*Graphics specifications may vary between CPU types.
拡張スロット 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
ストレージ機能 Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN機能 Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
無線機能 Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth機能 Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

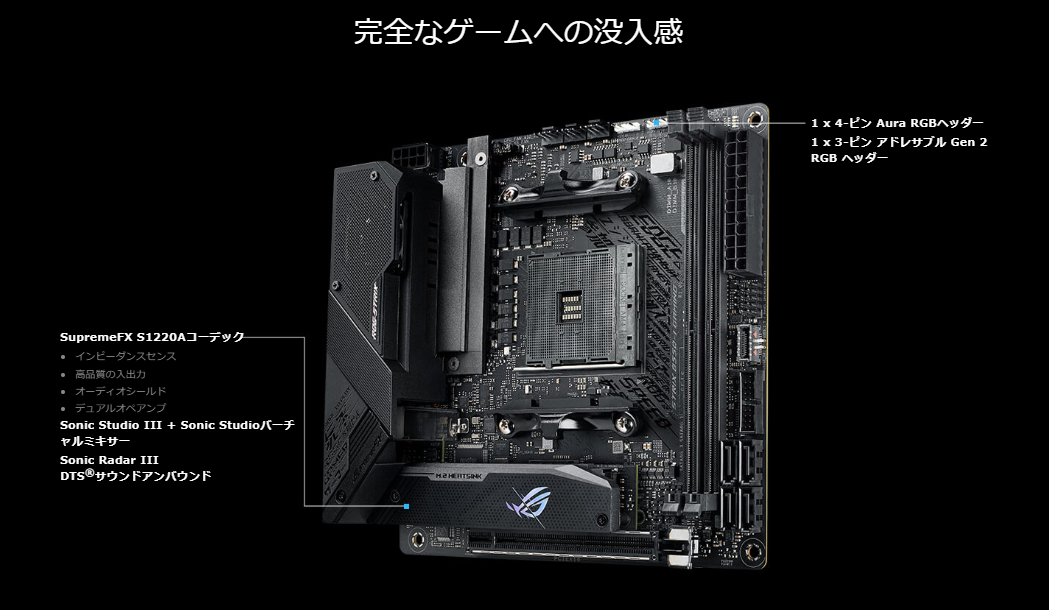

オーディオ機能 SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- Rear audio USB Type-C® port
- LED-illuminated design
- Audio Shielding
- Premium Japanese audio capacitors
USB機能 Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A)
1 x USB 2.0 port(s)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
-AI Noise Cancelling Microphone
AI Suite 3:
- 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
- EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-CODE
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
- SafeSlot
Rear audio USB Type-C® connector

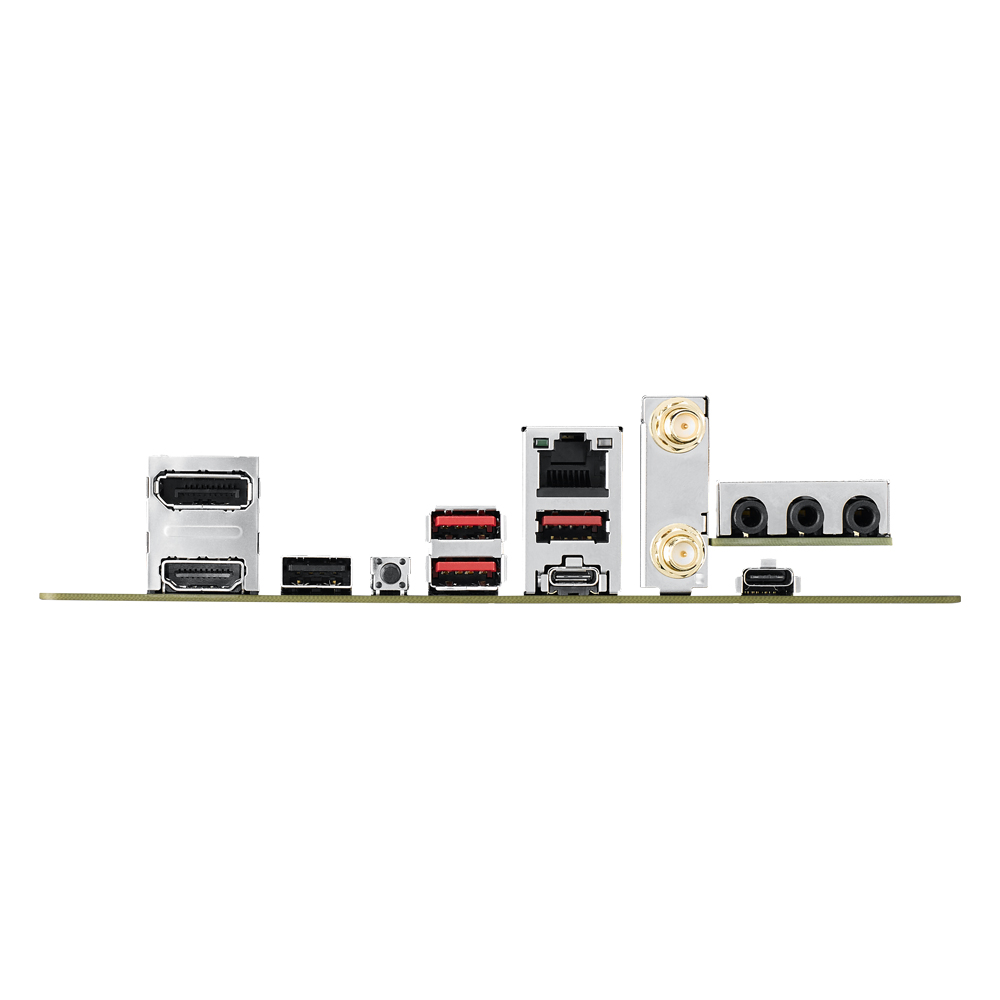

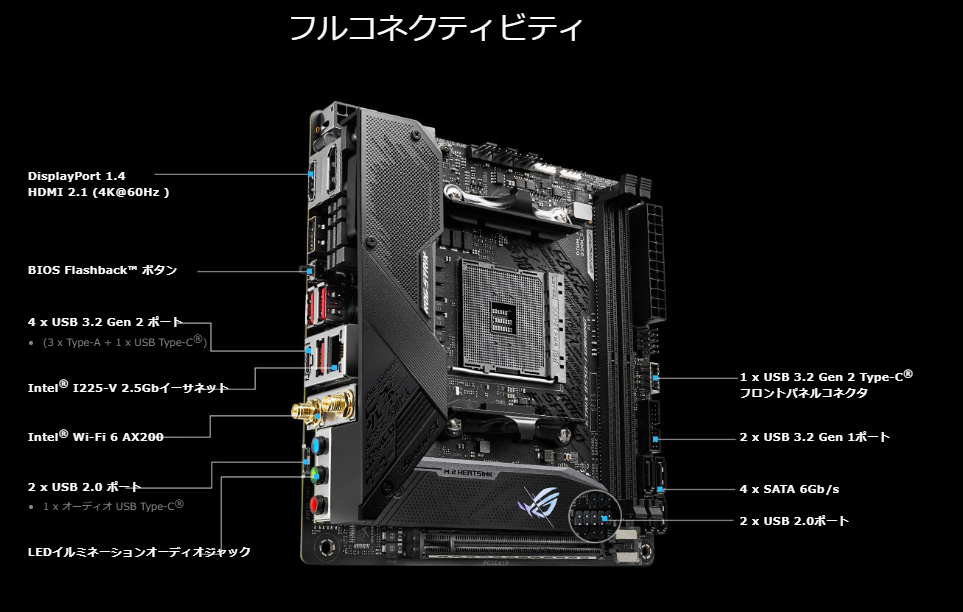

背面インターフェース 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2 (1 x USB Type-C®+3 x Type-A)
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™ 1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)

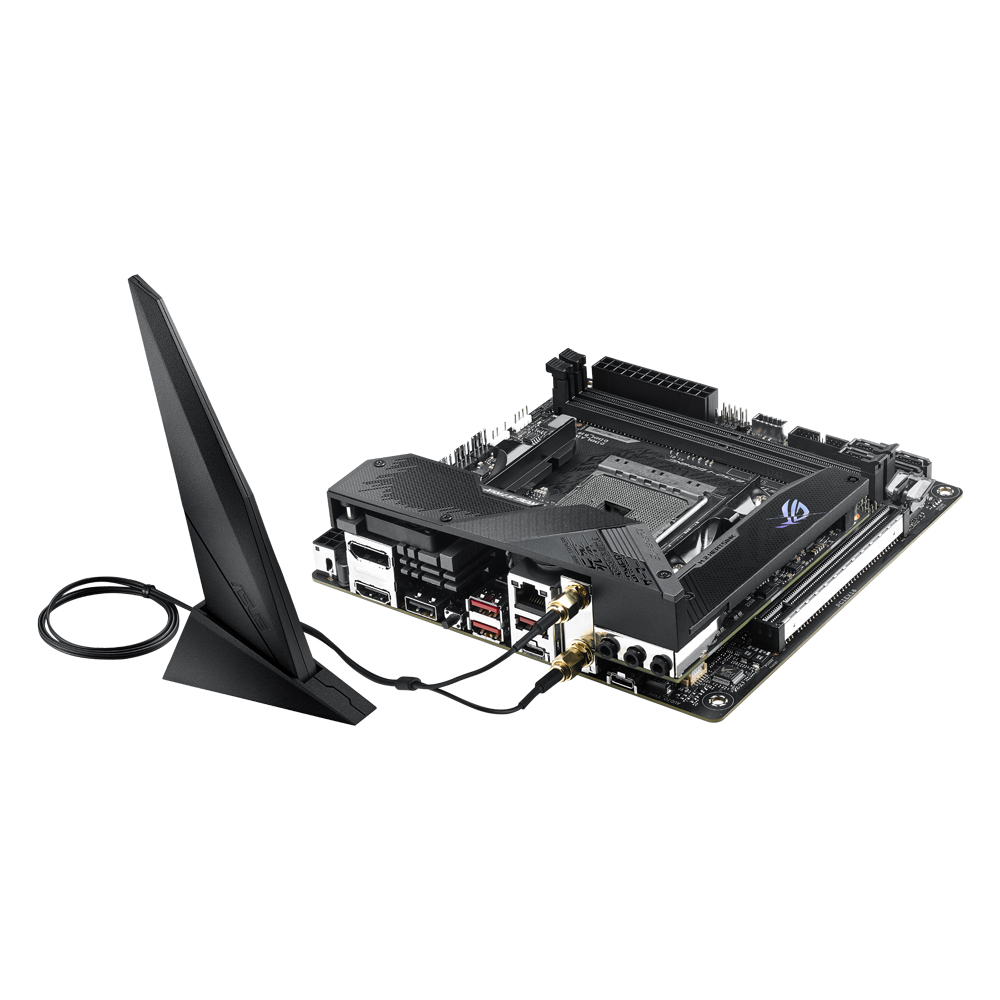

1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks

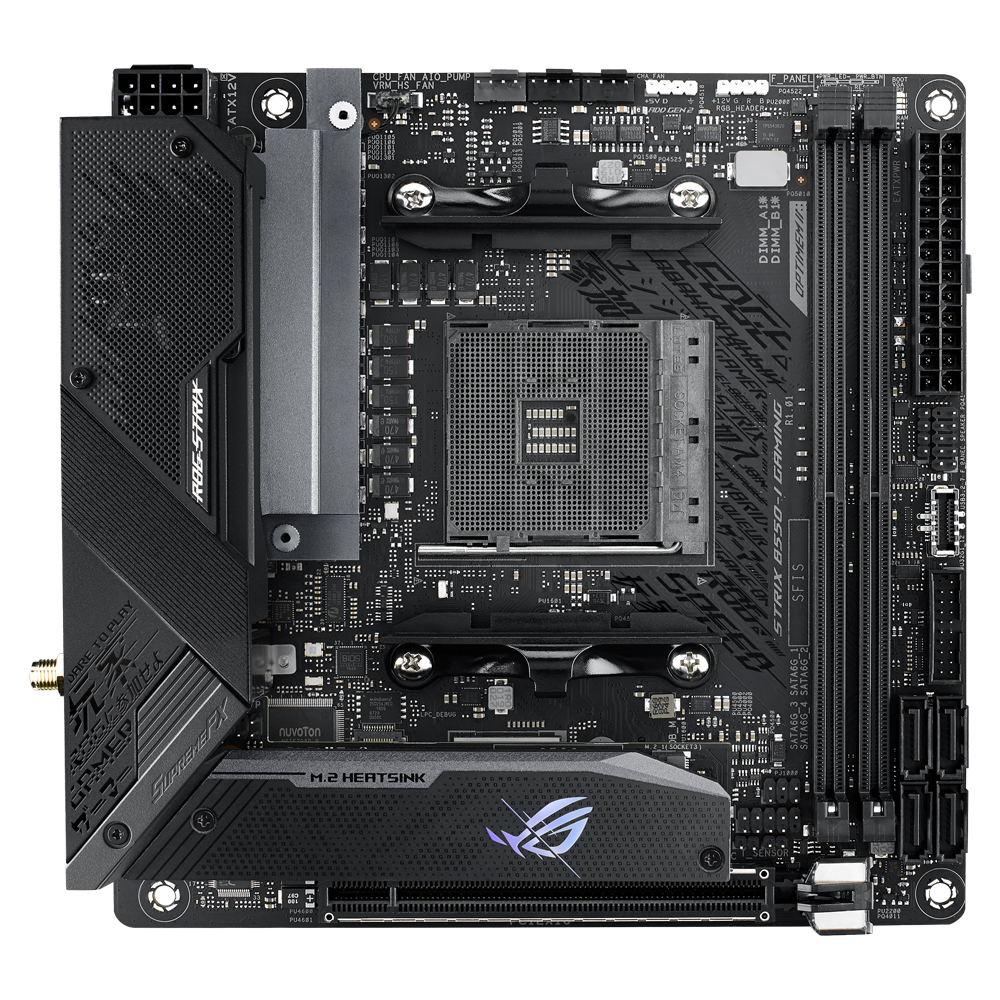

基板上インターフェース 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
1 x VRM_HS_FAN Header

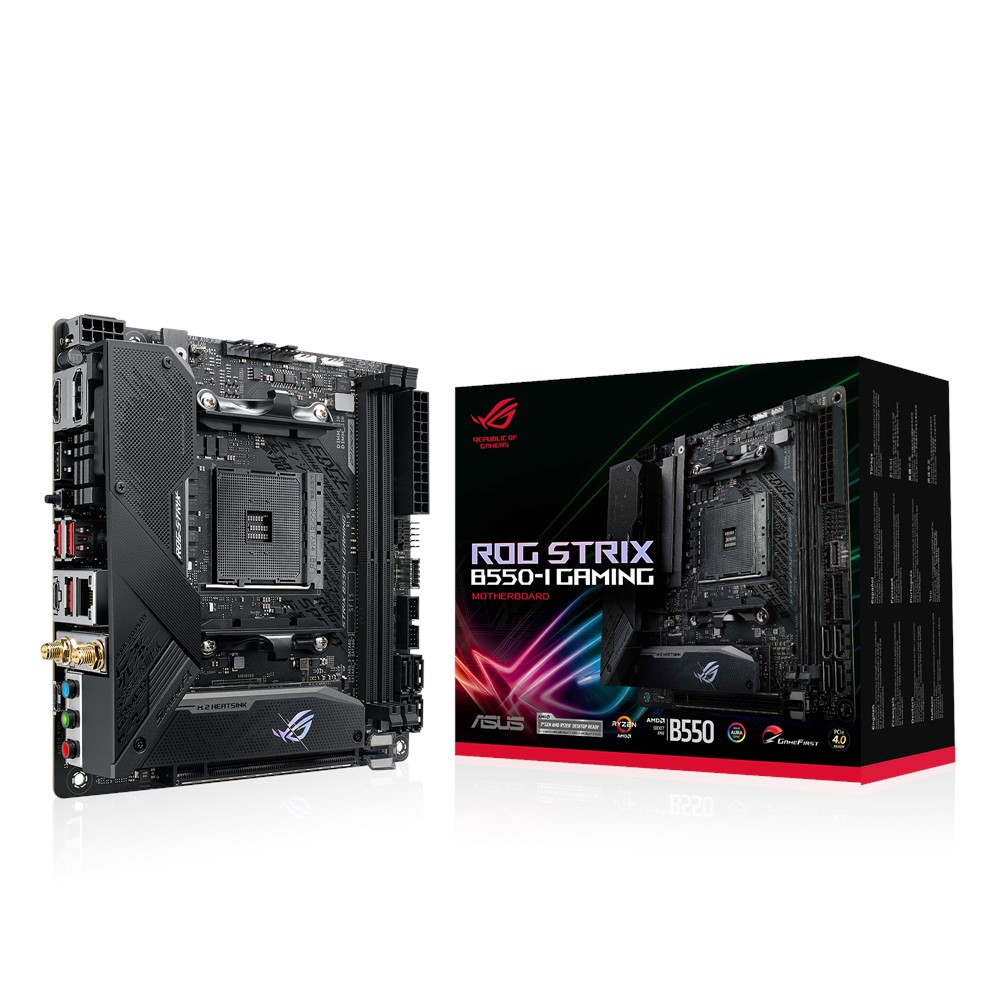

主な付属品 User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x Panel cable
1 x ROG Thank you card
1 x ROG audio USB Type-C® cable
BIOS機能 256 Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PXE
OS Windows® 10 64-bit
フォームファクター（サイズW×D） Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他 * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
