| 対応CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| 搭載チップセット |
Intel® B460 |
| メインメモリ |
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| グラフィックス機能 |
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| マルチGPU対応 |
Supports AMD 2-Way CrossFireX Technology |
| 拡張スロット |
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode) *1
3 x PCIe 3.0 x1 *1 |
| ストレージ機能 |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *3 |
| LAN機能 |
Intel® I219-V 1Gb Ethernet |
| 無線機能 |
Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface |
| Bluetooth機能 |
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| オーディオ機能 |
Realtek ALC S1200A 8-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB機能 |
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s) |
| Software Features |
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
Digi+ VRM
EPU
Fan Xpert 4
- EZ update
- PC Cleaner
- System Information
AI Charger
ASUS Turbo LAN
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
DAEMON Tools
Google Chrome Browser & Google Toolbar
TUF GAMING CPU-Z
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design :
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution:
- Aluminum M.2 heatsink
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
AURA Sync
- Addressable Gen 2 RGB header
- Standard RGB headers |

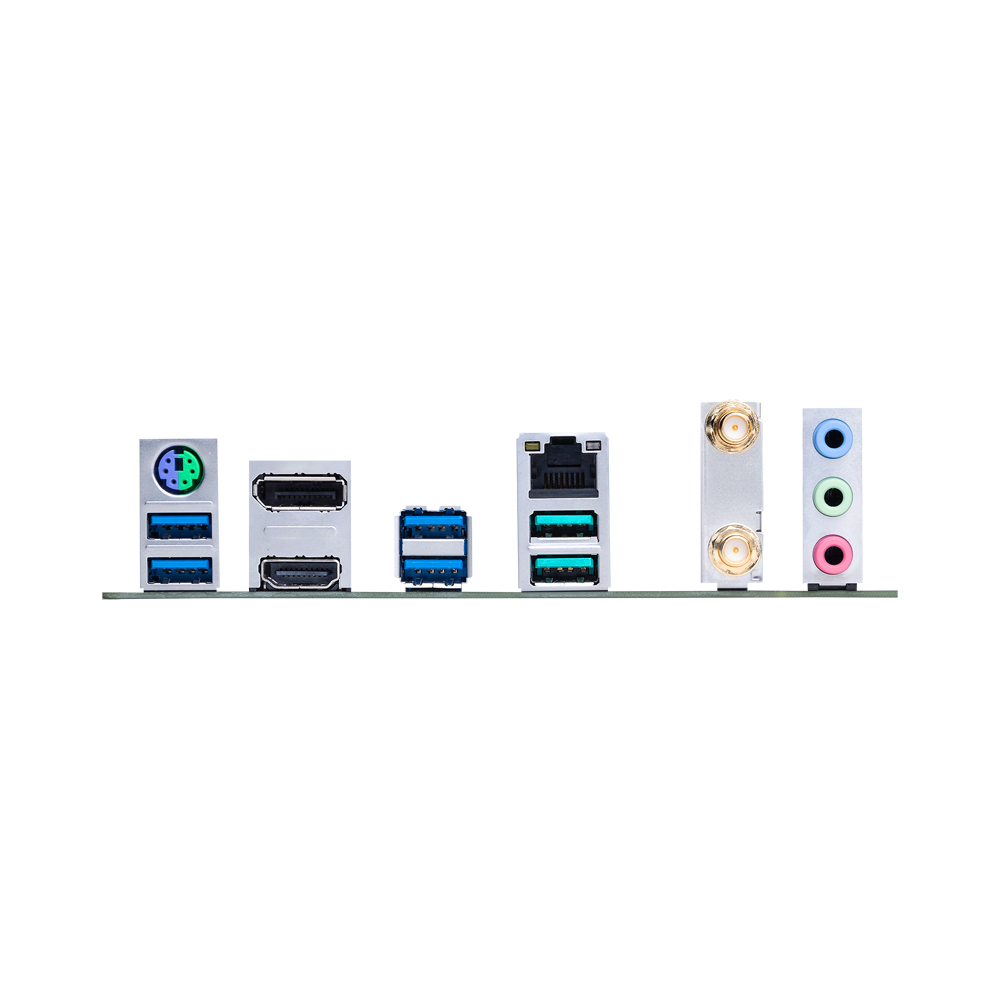

| 背面インターフェース |
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
3 x Audio jack(s)
1 x ASUS Wi-Fi Module |
| 基板上インターフェース |
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header |
| 主な付属品 |
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)

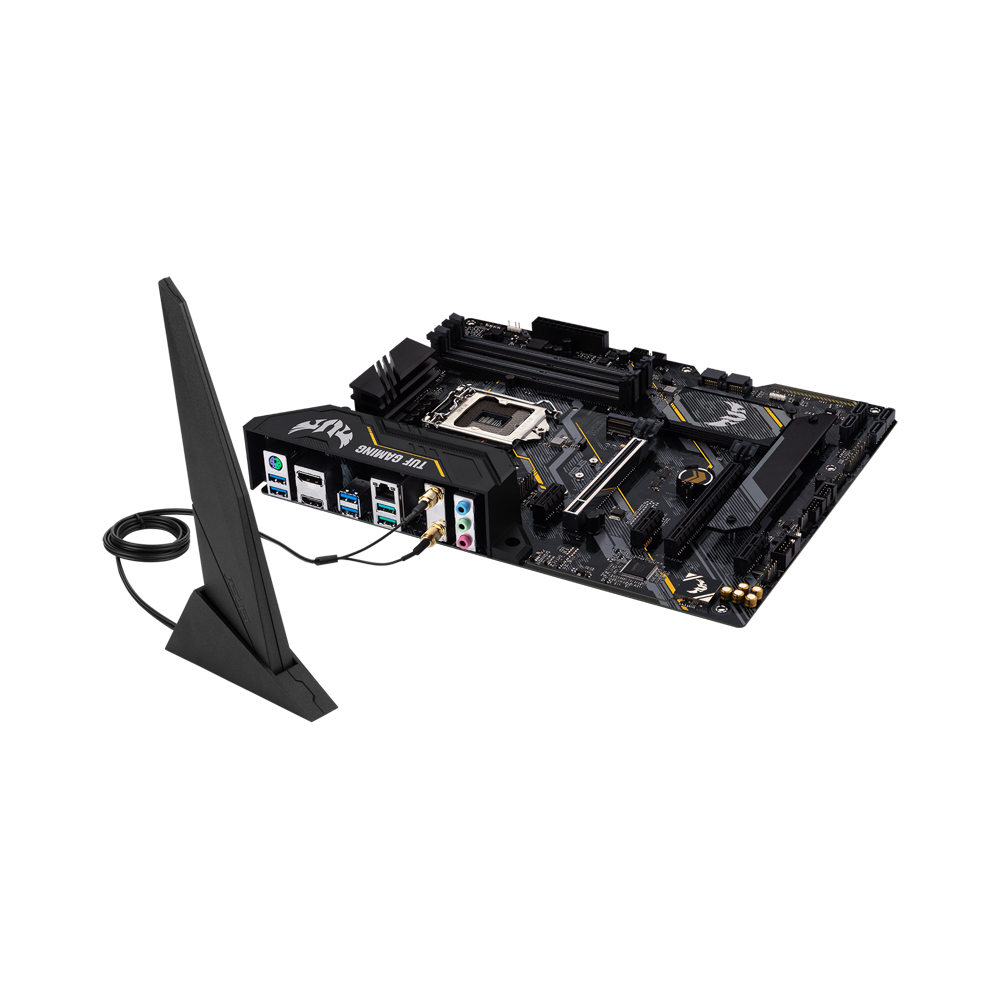

1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s) |
| BIOS機能 |
128 Mb Flash ROM, UEFI AMI BIOS |
| 管理機能 |
WOL by PME, PXE |
| OS |
Windows® 10 64-bit |
| フォームファクター（サイズW×D） |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 |
*1 By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode.
*2 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.
*3 Only the M.2_2 socket can support Intel® Optane™ Memory Ready. |
