PRIME Z590M-PLUS

PRIME Z590M-PLUS

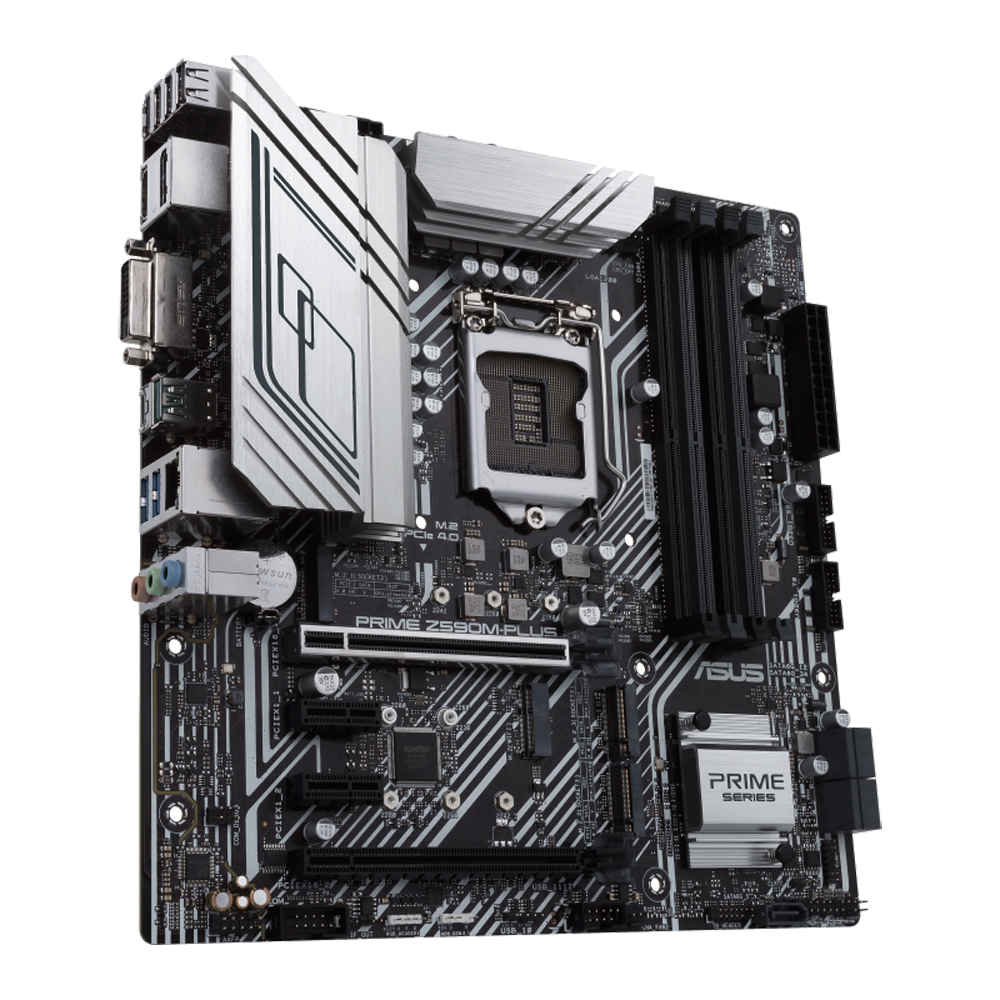

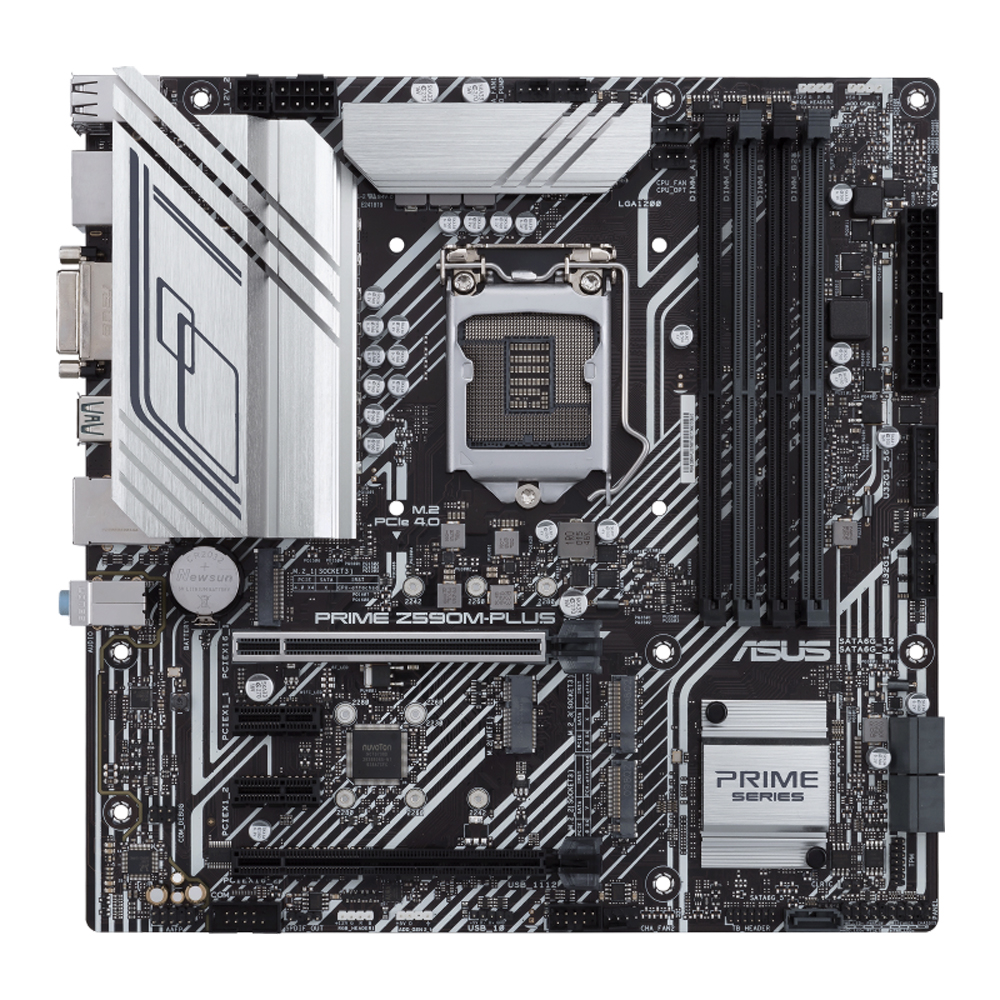

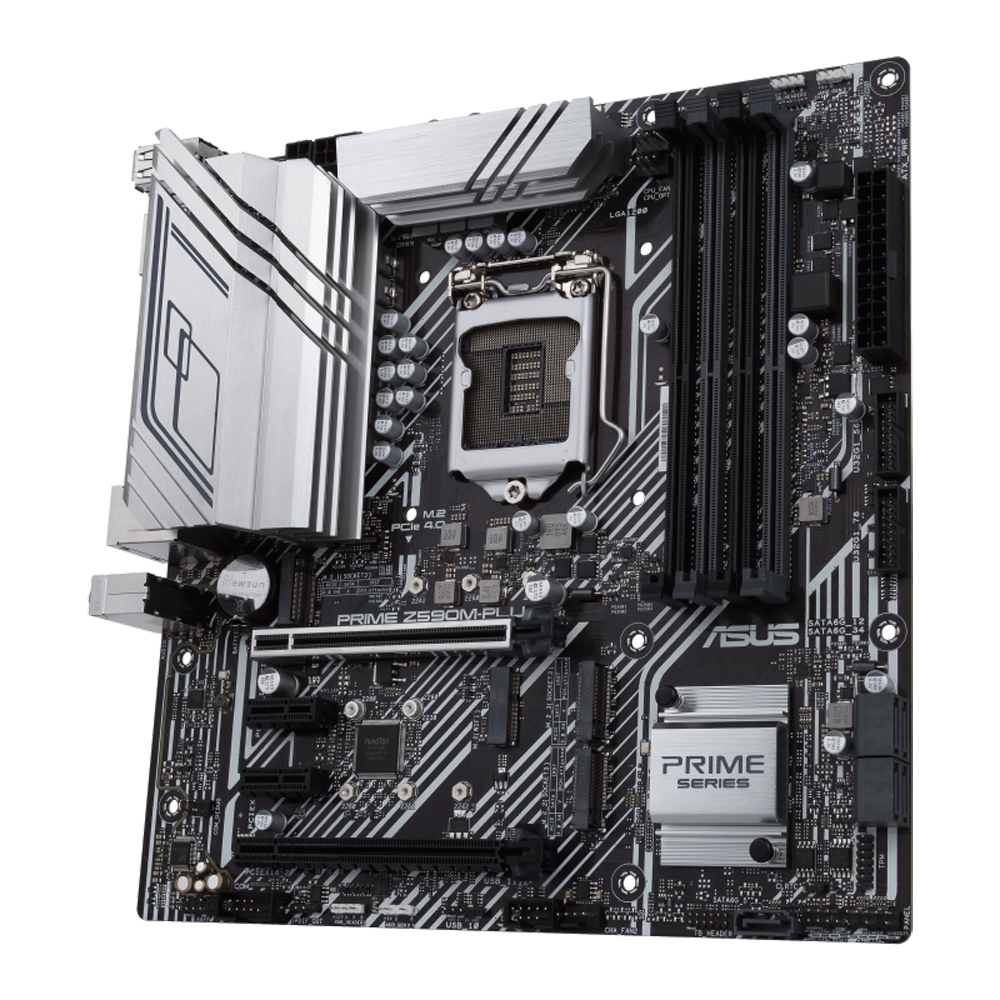

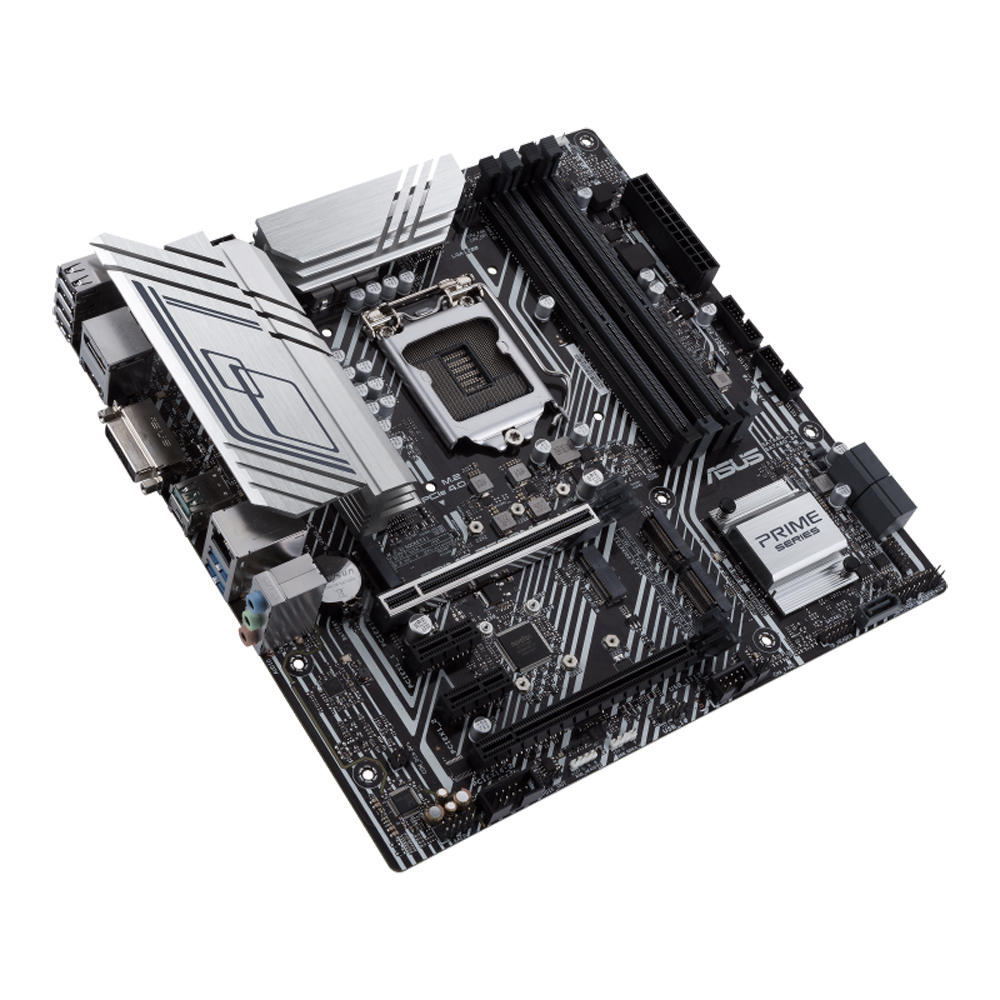

Z590 MicroATXマザーボード・PRIMEシリーズモデル
Dr.Mos採用8+1フェーズ、M.2スロット×3、DVI-D端子も搭載

・対応ソケット : LGA 1200
・対応CPU : 第11世代 Intel Core プロセッサ/ 第10世代 Intel Core、Pentium Gold、Celeron プロセッサ
・チップセット : Intel Z590
・対応メモリ : DDR4-5133×4（最大128GB）
・画面出力端子 : HDMI 2.0×1、DisplayPort 1.4×1、DVI-D×1
・拡張スロット : PCIe 4.0 x16×1、PCIe 3.0 x16×1、PCIe 3.0 x1×2
・ストレージ機能 : M.2×3、SATA 6Gb/s×5
・有線LAN機能 : 1000BASE-T×1
・USB（外部/内部）: USB 3.2 Gen 2x2×1 (1/0)、USB 3.2 Gen 2×1 (1/0)、USB 3.2 Gen 1×6 (2/4)、USB 2.0×7 (4/3)
・フォームファクタ : microATX（244mm×244mm）

型番：PRIME Z590M-PLUS

メーカー製品ページ



ASUS Primeシリーズマザーボードは、第10世代および第11世代のIntel® Core™ プロセッサーの潜在能力を最大限に引き出すために専門的に設計されています。堅牢な電源設計、包括的な冷却ソリューション、インテリジェントなチューニングオプションを誇るPrime Z590M-PLUSは、日常的に使用するユーザーやDIYでPCを構築するユーザーに、直感的なソフトウェアとファームウェアによる幅広いパフォーマンスチューニングオプションを提供します。







強化された電源ソリューション

8 + 1 DrMOS PowerStageを採用しており、6層PCB、8ピンProCoolコネクタ、合金チョーク、および安定した電力供給のための耐久性のあるコンデンサを搭載しています。



Fan Xpert 4

Fan Xpert 4は、CPUファンとケースファン、および液冷ポンプの回転速度を温度に応じて細かく制御できるファンコントロール機能です。PWMファンとDCファンの両方に対応しており、PWMファンに対しては、DC制御を組み合わせることで低回転時の制御精度を向上する、PWM/DCハイブリッド制御の「Extreme Quietモード」を使用できます。



M.2スロット3基搭載

Prime Z590M-PLUSは合計3つのM.2スロットを提供し、1スロットはPCI Express®4.0を介して最大64Gbpsのデータ転送速度をサポートし、OSまたはアプリケーションドライブでの起動とアプリのロード時間を短縮します。



対応CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Intel® Z590 Chipset
メインメモリ

4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
グラフィックス機能
1 x DisplayPort 1.4**
1 x DVI-D
1 x HDMI™ 1.4 / 2.0***
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
拡張スロット Intel® 11th & 10th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 mode
- Intel®10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 mode
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
ストレージ

Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
5 x SATA 6Gb/s ports
Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_1 port cannot be used.
LAN機能 1 x Intel® I219-V 1Gb Ethernet
Wireless & Bluetooth M.2 slot only (Key E) (Support CNVi & PCIe interface)*
* Wi-Fi module is purchased separately.
USB Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
オーディオ機能
"Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

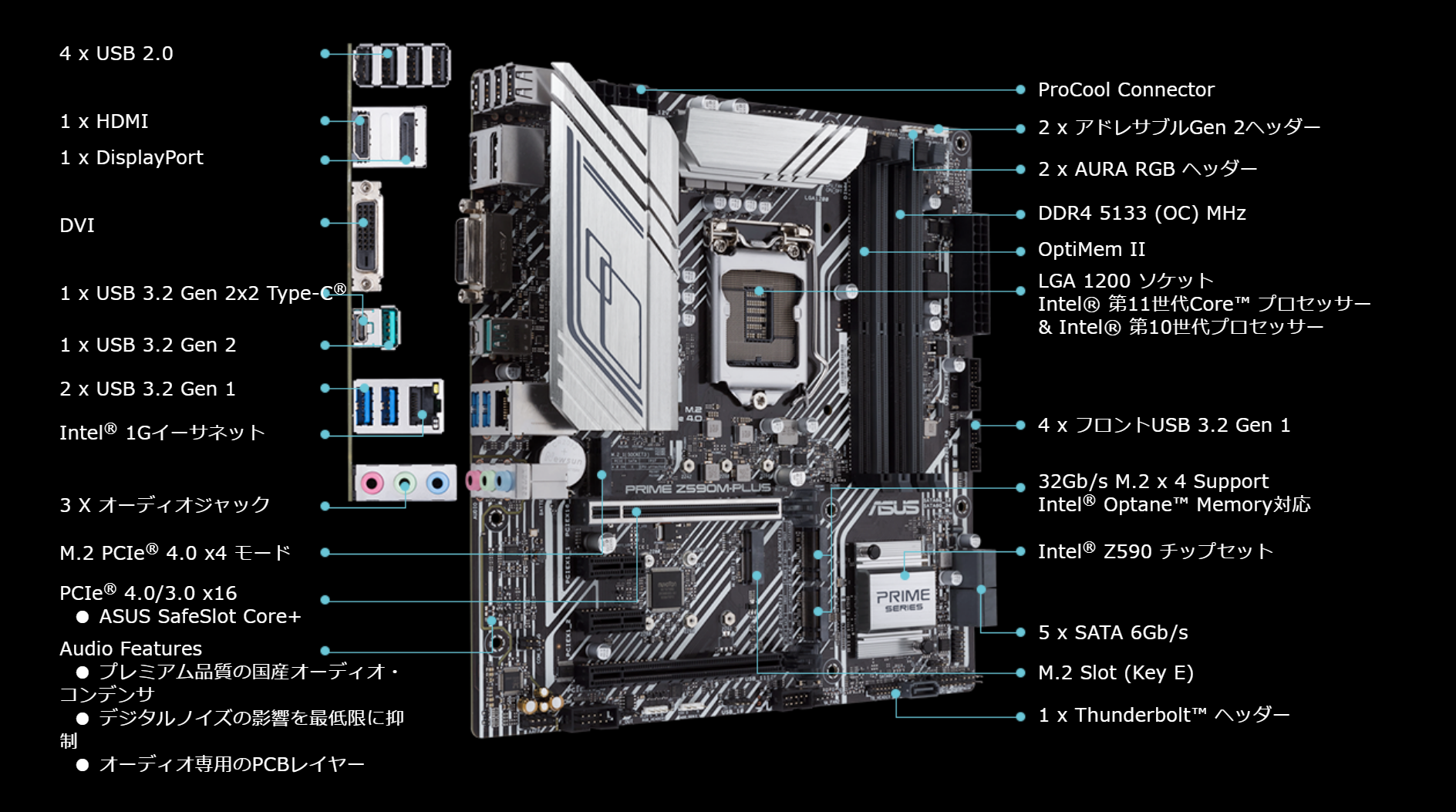

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMITM port
1 x Intel® I219V 1Gb Ethernet
3 x Audio jacks
Intrernal I/O Connectors Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
5 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- Procool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
Norton Anti-virus software (Free Trial version)
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
主な付属品

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
OS Windows® 10 64-bit
フォームファクター（サイズW×D） mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)


※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
